Specifications
Brand Name :
TYHE
Model Number :
TJX24RD
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
24mm diameter
Voltage :
3v 24v or customized
Speed :
1-1500rpm Customized
Torque :
2N.m
Gear material :
Steel
Commutation :
brushed
Type :
DC Planetary Gear Motor, Small Motor
Keywords :
Manufacturer 24mm Diameter Rf280 50rpm 100rpm 6 Volt 12v Brushed Dc Planetary Geared Motor
Description

Products Description

Manufacturer 24mm Diameter Rf280 50rpm 100rpm 6 Volt 12v Brushed Dc Planetary Geared Motor

2D drawing

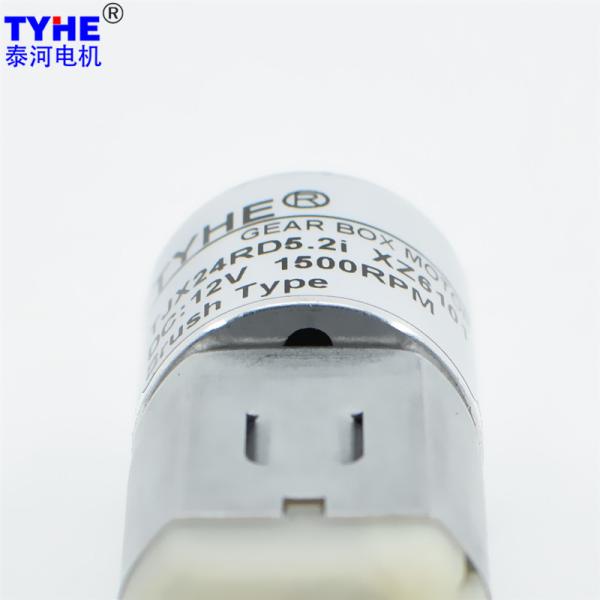

Brushed 50rpm 100rpm DC Planetary Geared Motor 12V 6 Volt

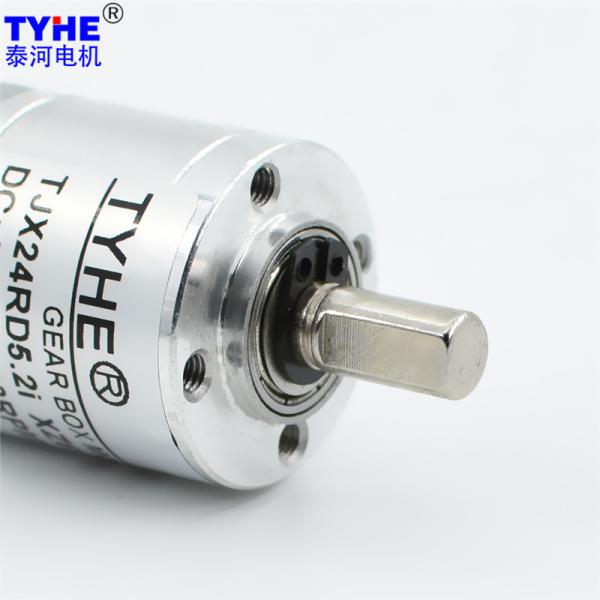

Brushed 50rpm 100rpm DC Planetary Geared Motor 12V 6 Volt

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
F280 12 6800 30 5440 0.10 1.30 0.74 61.71 3.90 0.60
F280 12 8000 60 6400 0.15 1.65 1.11 61.43 4.95 2.00
F280 12 12000 120 9600 0.38 2.82 2.83 62.17 8.46 2.67
F280 24 6800 20 5440 0.05 1.35 0.77 60.46 4.05 0.41
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters 12V-6800RPM Input 12V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.4 90 3.7 1470.3 0.67 4.33 12.99 1729.7 1.00 5.49 16.48
22.4 90 5.2 1046.2 0.67 6.08 18.25 1230.8 1.00 7.72 23.17
27.6 81 13.7 397.1 0.60 14.43 43.28 467.2 0.90 18.31 54.93
27.6 81 19.2 283.3 0.60 20.22 60.65 333.3 0.90 25.66 76.98
27.6 81 26.9 202.2 0.60 28.33 84.98 237.9 0.90 35.95 107.86
27.6 81 35.0 155.4 0.60 36.86 110.57 182.9 0.90 46.78 140.33
32.8 73 51.0 106.7 0.54 48.40 145.20 125.5 0.81 61.43 184.29
32.8 73 71.0 76.6 0.54 67.38 202.14 90.1 0.81 85.52 256.56
32.8 73 100.0 54.4 0.54 94.90 284.70 64.0 0.81 120.45 361.35
32.8 73 139.0 39.1 0.54 131.91 395.73 46.0 0.81 167.43 502.28
39 65.6 189.0 28.8 0.49 161.18 483.54 33.9 0.73 204.57 613.72
39 65.6 264.0 20.6 0.49 225.14 675.42 24.2 0.73 285.75 857.26
39 65.6 369.0 14.7 0.49 314.68 944.05 17.3 0.73 399.41 1198.22
39 65.6 514.0 10.6 0.49 438.34 1315.02 12.5 0.73 556.35 1669.06
39 65.6 721.0 7.5 0.49 614.87 1844.61 8.9 0.73 780.41 2000.00
45.2 59 699.0 7.8 0.44 536.13 2000.00 9.2 0.65 680.48 2000.00
45.2 59 977.0 5.6 0.44 749.36 2000.00 6.6 0.65 951.11 2000.00
45.2 59 1367.0 4.0 0.44 1048.49 2000.00 4.7 0.65 1330.77 2000.00
45.2 59 1911.0 2.8 0.44 1465.74 2000.00 3.3 0.65 1860.36 2000.00
45.2 59 2672.0 2.0 0.44 2000.00 2000.00 2.4 0.65 2000.00 2000.00
45.2 59 3736.0 1.5 0.44 2000.00 2000.00 1.7 0.65 2000.00 2000.00
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters 12V-12000RPM Input 24V-6800RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.4 90 3.7 2594.6 2.55 9.39 28.17 1470.3 0.69 4.50 13.49
22.4 90 5.2 1846.2 2.55 13.20 39.59 1046.2 0.69 6.32 18.95
27.6 81 13.7 700.7 2.30 31.29 93.88 397.1 0.62 14.98 44.94
27.6 81 19.2 500.0 2.30 43.86 131.57 283.3 0.62 21.00 62.99
27.6 81 26.9 356.9 2.30 61.44 184.33 202.2 0.62 29.42 88.25
27.6 81 35.0 274.3 2.30 79.95 239.84 155.4 0.62 38.27 114.82
32.8 73 51.0 188.2 2.07 104.99 314.97 106.7 0.56 50.26 150.78
32.8 73 71.0 135.2 2.07 146.16 438.48 76.6 0.56 69.97 209.91
32.8 73 100.0 96.0 2.07 205.86 617.58 54.4 0.56 98.55 295.65
32.8 73 139.0 69.1 2.07 286.15 858.44 39.1 0.56 136.98 410.95
39 65.6 189.0 50.8 1.86 349.63 1048.90 28.8 0.50 167.38 502.14
39 65.6 264.0 36.4 1.86 488.38 1465.14 20.6 0.50 233.80 701.40
39 65.6 369.0 26.0 1.86 682.62 2000.00 14.7 0.50 326.79 980.36
39 65.6 514.0 18.7 1.86 950.86 2000.00 10.6 0.50 455.20 1365.60
39 65.6 721.0 13.3 1.86 1333.79 2000.00 7.5 0.50 638.52 1915.55
45.2 59 699.0 13.7 1.67 1163.00 2000.00 7.8 0.45 556.75 1670.26
45.2 59 977.0 9.8 1.67 1625.53 2000.00 5.6 0.45 778.18 2000.00
45.2 59 1367.0 7.0 1.67 2000.00 2000.00 4.0 0.45 1088.82 2000.00
45.2 59 1911.0 5.0 1.67 2000.00 2000.00 2.8 0.45 1522.11 2000.00
45.2 59 2672.0 3.6 1.67 2000.00 2000.00 2.0 0.45 2000.00 2000.00
45.2 59 3736.0 2.6 1.67 2000.00 2000.00 1.5 0.45 2000.00 2000.00

Please let us know your requirements and we will provide you with transmission solutions.
