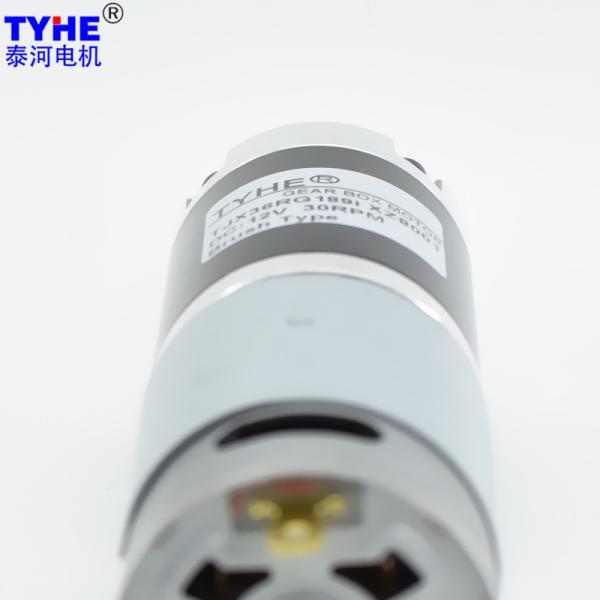

GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJX36RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
36mm diameter
Voltage :
12v 24v or customized
Speed :
1-2000rpm Customized
Torque :
8N.m
Gear material :
Steel gears
Commutation :
brushes, brushed
Type :
DC Planetary Gear Motor, Mini Motor
Keywords :
GMP36-555PM Miniature 36mm 1500rpm 12v 24v 10.5v 5nm 3nm Brushed Dc Planetary Geared Motors For Auto Smart Mop
Description

Products Description

GMP36-555PM Miniature 36mm 1500rpm 12v 24v 10.5v 5nm 3nm Brushed Dc Planetary Geared Motors For Auto Smart Mop

2D drawing

GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm


GMP36 555PM 36mm DC Planetary Gear Motor 5nm 3nm 10.5v 12 Volt DC Motor 1500 Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 3000 110 2400 0.42 12.30 3.09 62.07 36.90 3.00
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input 12V-3000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1297.3 6.42 47.29 141.86 648.6 2.78 40.96 122.88
28.2 90 5.2 923.1 6.42 66.46 199.37 461.5 2.78 57.56 172.69
37 81 13.7 350.4 5.78 157.58 472.73 175.2 2.50 136.49 409.48
37 81 19.2 250.0 5.78 220.84 662.52 125.0 2.50 191.29 573.87
37 81 26.9 178.4 5.78 309.40 928.21 89.2 2.50 268.00 804.01
37 81 35.0 137.1 5.78 402.57 1207.71 68.6 2.50 348.71 1046.12
45.8 73 51.0 94.1 5.21 528.67 1586.00 47.1 2.26 457.93 1373.79
45.8 73 71.0 67.6 5.21 735.99 2207.96 33.8 2.26 637.51 1912.53
45.8 73 100.0 48.0 5.21 1036.60 3109.80 24.0 2.26 897.90 2693.70
45.8 73 139.0 34.5 5.21 1440.87 4322.62 17.3 2.26 1248.08 3744.24
54.7 65.6 189.0 25.4 4.68 1760.57 5281.72 12.7 2.03 1525.00 4575.01
54.7 65.6 264.0 18.2 4.68 2459.21 7377.64 9.1 2.03 2130.16 6390.49
54.7 65.6 369.0 13.0 4.68 3437.31 10000.00 6.5 2.03 2977.39 8932.16
54.7 65.6 514.0 9.3 4.68 4788.01 10000.00 4.7 2.03 4147.36 10000.00
54.7 65.6 721.0 6.7 4.68 6716.26 10000.00 3.3 2.03 5817.60 10000.00
64 59 699.0 6.9 4.21 5856.22 10000.00 3.4 1.82 5072.64 10000.00
64 59 977.0 4.9 4.21 8185.31 10000.00 2.5 1.82 7090.09 10000.00
64 59 1367.0 3.5 4.21 10000.00 10000.00 1.8 1.82 9920.32 10000.00
64 59 1911.0 2.5 4.21 10000.00 10000.00 1.3 1.82 10000.00 10000.00
64 59 2672.0 1.8 4.21 10000.00 10000.00 0.9 1.82 10000.00 10000.00
64 59 3736.0 1.3 4.21 10000.00 10000.00 0.6 1.82 10000.00 10000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1081.1 6.60 58.28 174.83 1297.3 7.60 55.94 167.83
28.2 90 5.2 769.2 6.60 81.90 245.70 923.1 7.60 78.62 235.87
37 81 13.7 292.0 5.94 194.20 582.59 350.4 6.84 186.43 559.29
37 81 19.2 208.3 5.94 272.16 816.48 250.0 6.84 261.27 783.82
37 81 26.9 148.7 5.94 381.31 1143.92 178.4 6.84 366.06 1098.17
37 81 35.0 114.3 5.94 496.13 1488.38 137.1 6.84 476.28 1428.84
45.8 73 51.0 78.4 5.35 651.53 1954.58 94.1 6.16 625.46 1876.39
45.8 73 71.0 56.3 5.35 907.03 2721.08 67.6 6.16 870.74 2612.23
45.8 73 100.0 40.0 5.35 1277.50 3832.50 48.0 6.16 1226.40 3679.20
45.8 73 139.0 28.8 5.35 1775.73 5327.18 34.5 6.16 1704.70 5114.09
54.7 65.6 189.0 21.2 4.81 2169.72 6509.16 25.4 5.54 2082.93 6248.79
54.7 65.6 264.0 15.2 4.81 3030.72 9092.16 18.2 5.54 2909.49 8728.47
54.7 65.6 369.0 10.8 4.81 4236.12 10000.00 13.0 5.54 4066.68 10000.00
54.7 65.6 514.0 7.8 4.81 5900.72 10000.00 9.3 5.54 5664.69 10000.00
54.7 65.6 721.0 5.5 4.81 8277.08 10000.00 6.7 5.54 7946.00 10000.00
64 59 699.0 5.7 4.32 7217.18 10000.00 6.9 4.98 6928.49 10000.00
64 59 977.0 4.1 4.32 10000.00 10000.00 4.9 4.98 9684.02 10000.00
64 59 1367.0 2.9 4.32 10000.00 10000.00 3.5 4.98 10000.00 10000.00
64 59 1911.0 2.1 4.32 10000.00 10000.00 2.5 4.98 10000.00 10000.00
64 59 2672.0 1.5 4.32 10000.00 10000.00 1.8 4.98 10000.00 10000.00
64 59 3736.0 1.1 4.32 10000.00 10000.00 1.3 4.98 10000.00 10000.00

Please let us know your requirements and we will provide you with transmission solutions.
