Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Specifications
Brand Name :
TYHE
Model Number :
TJP37FK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ37mm size
Voltage :
6v 12v 24v or customize
Speed :
Customized
Torque :
1.5N.m
Commutation :
brushes brush
Type :
Brushed dc motor, DC micro motor
Keywords :
Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
Description

Products Description

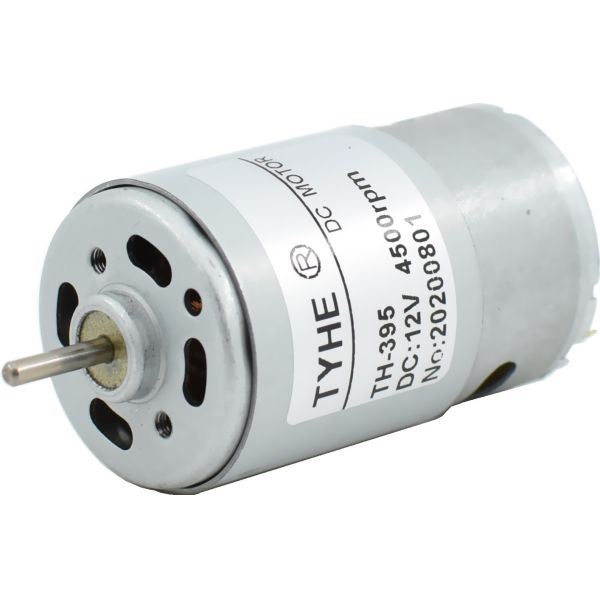

2.4v PMDC Rs395 High Torque Low Rpm 3700 Rpm 3 Volt 12v 24v Brushed Dc Motor For Power Tools Toy

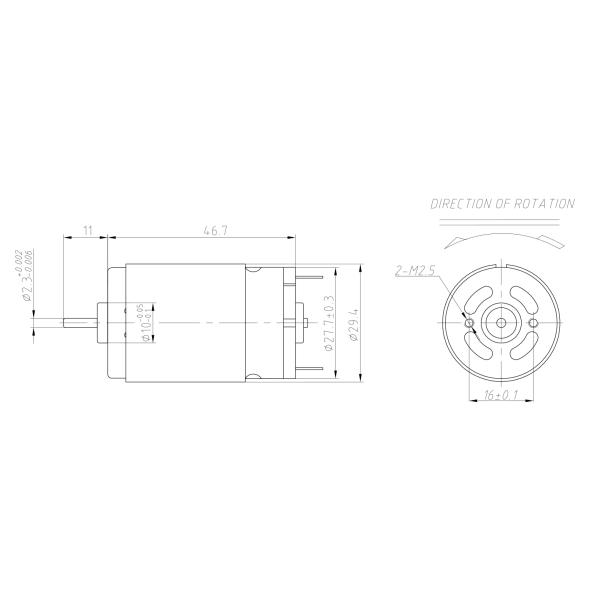

2D drawing

Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder


Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder

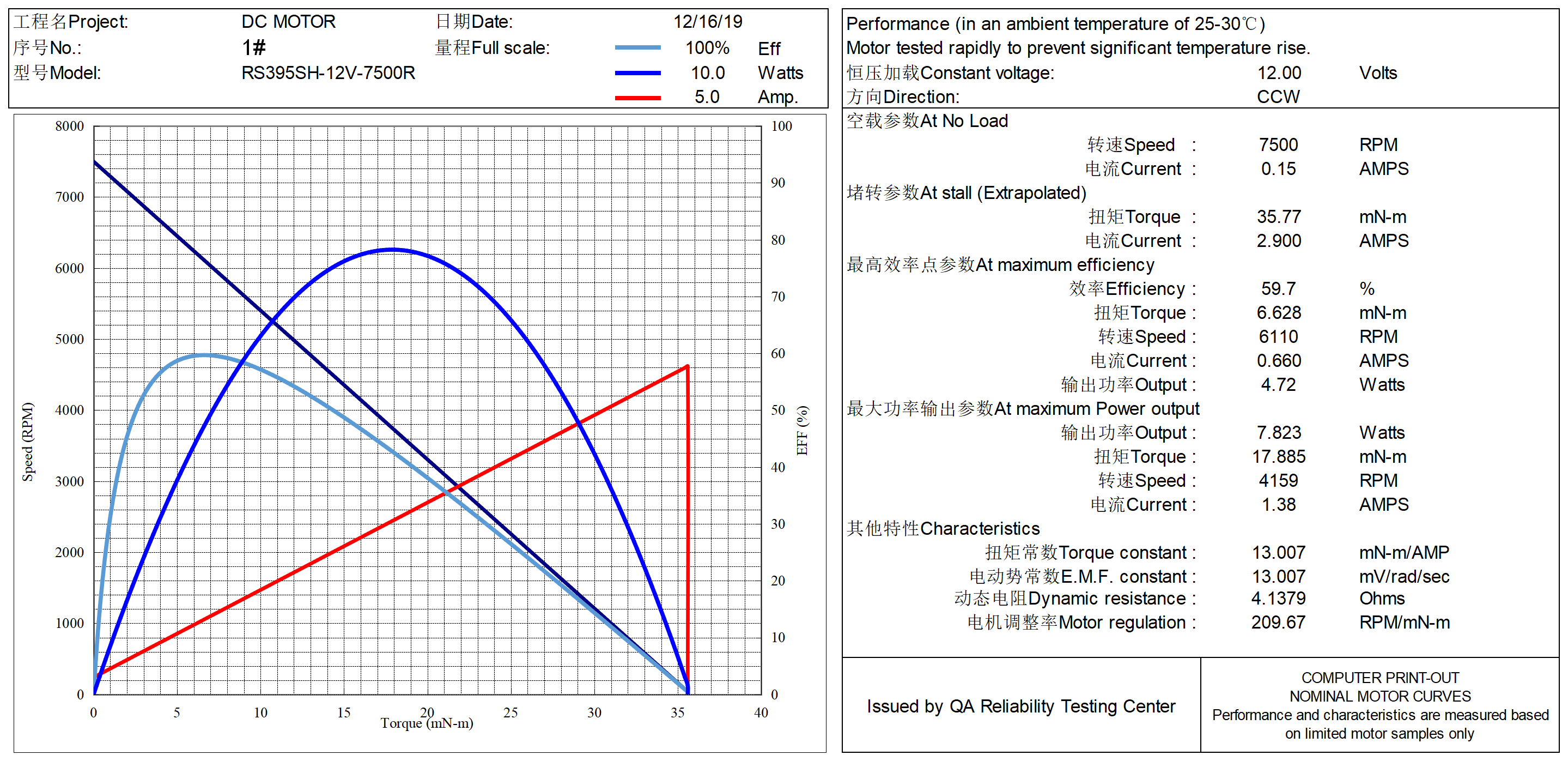

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS395 12 4500 100 3600 0.29 5.90 2.22 63.55 17.70 1.70
RS395 12 7500 160 6000 0.62 7.30 4.59 62.15 21.90 4.50
RS395 24 5000 50 4000 0.17 6.30 2.64 64.68 18.90 1.14
RS395 24 5300 60 4240 0.20 6.70 2.97 62.49 20.10 1.30
RS395 24 7500 75 6000 0.27 6.72 4.22 64.95 20.16 1.90

Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder

Please let us know your requirements and we will provide you with transmission solutions.

Customizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feederCustomizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feederCustomizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feederCustomizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feederCustomizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feederCustomizable 12v 5 volt 1300rpm 24v 100rpm 80rpm 1 rpm 10 rpm 5w 3w 20kgcm 1.5nm dc spur gear motor for auto fish feeder
