Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Specifications
Brand Name :
TYHE
Model Number :
TJP37FGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
12v 24v or customize
Speed :
20-5000rpm or Customized
Torque :
≤1.5N.m
Commutation :
Brushes brush
Type :
Brushed dc gear motor, DC micro motor
Keywords :
Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Description

Products Description

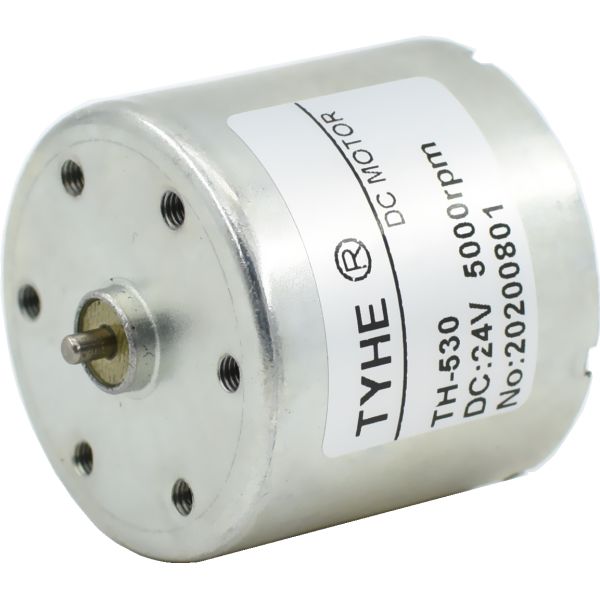

Factory Price 12v 24v 30 Volt 3000 Rpm 5000 Rpm High Speed Rs530 Dc Motor For Smart Home

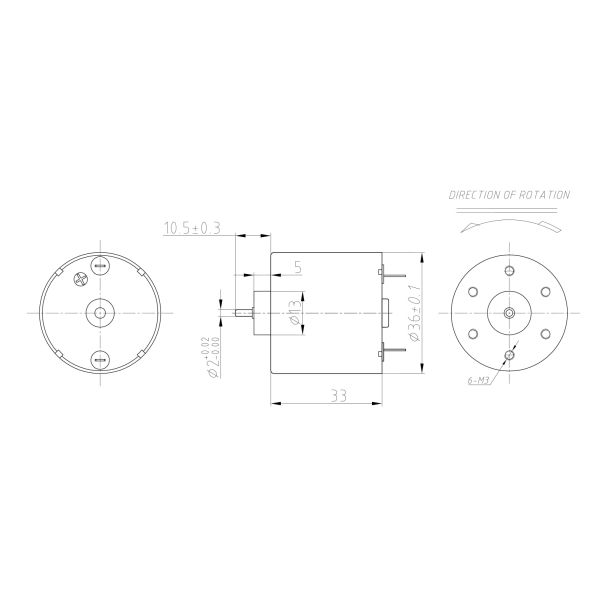

2D drawing

Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain


Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain

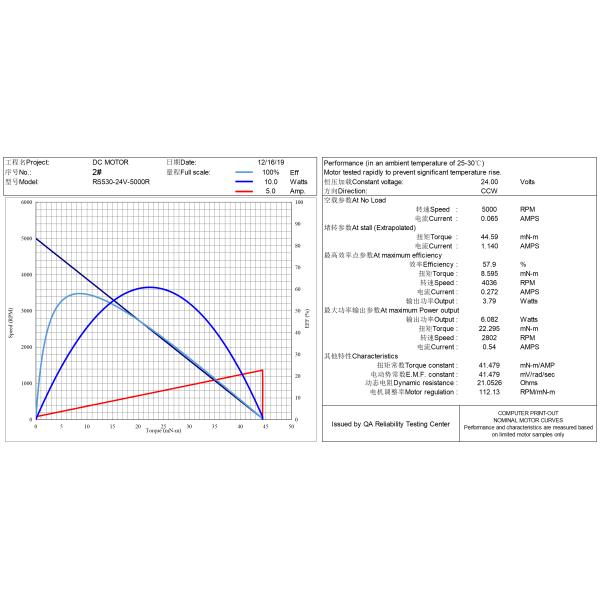

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 12 6000 135 4800 0.68 9.90 4.98 61.20 29.70 5.7
RS530 12 6500 120 5200 0.70 9.80 5.34 63.83 29.40 6.2
RS530 12 7500 160 6000 0.80 9.50 5.97 62.30 28.50 6.7
RS530 24 3500 35 2800 0.12 5.90 1.73 62.68 17.70 0.75
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.6
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.2

Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain

Please let us know your requirements and we will provide you with transmission solutions.

Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtainMicro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtainMicro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtainMicro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtainMicro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtainMicro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
