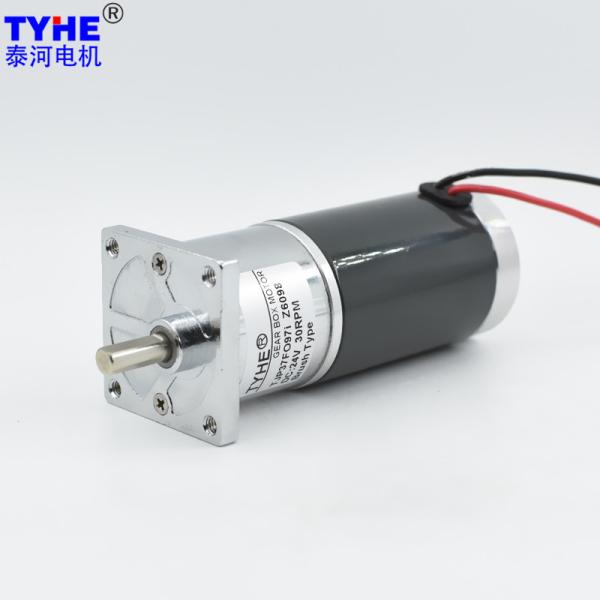

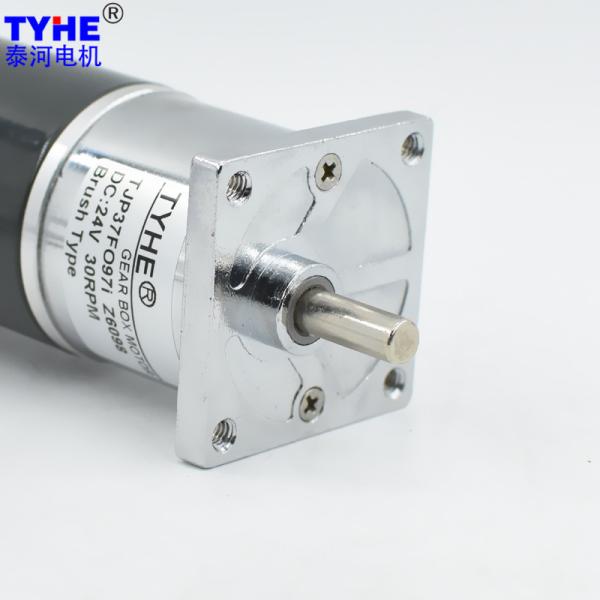

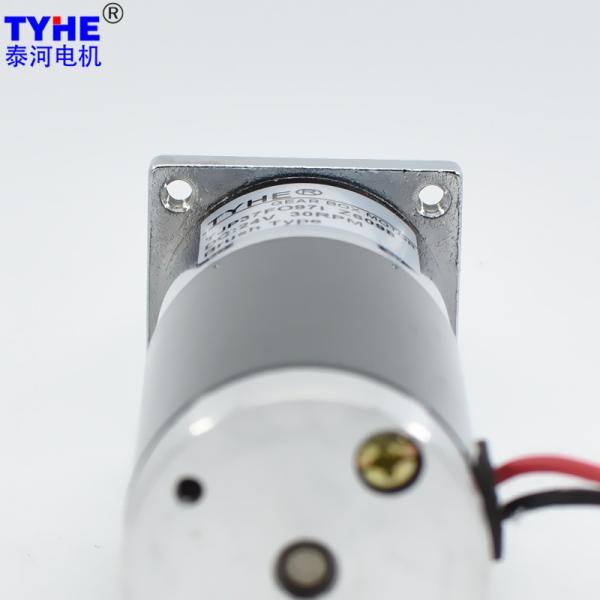

37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w
Specifications
Brand Name :
TYHE
Model Number :
TJP37FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm dia
Voltage :
3-24Volt
Speed :
60rpm or customized
Torque :
1.45N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush brushes brushed
Type :
DC gear motor, DC Micro Motor
Usage :
Paper dispenser,Electric Bicycle
Keywords :
Powerful 37mm metal gearbox low rpm 12v 24v 80 rpm 30rpm large torque 20kgf 25w 30w dc gear motor for commercial unit with rohs
Description

Powerful 37mm Metal Gearbox Low 12v 80 Rpm 30rpm Large Torque 20kgf 25w 30w Dc Gear Motor For Commercial Unit With Rohs

Products Description

Powerful 37mm metal gearbox low 12v 24v rpm 30rpm large torque 20kgf 25w 30w dc gear motor for commercial unit with rohs

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 439.0 5.95 129.52 388.56 487.8 6.68 130.85 392.54
25.5 73 11.7 307.7 5.37 166.55 499.65 341.9 6.02 168.26 504.77
25.5 73 14.7 244.9 5.37 209.25 627.76 272.1 6.02 211.40 634.20
25.5 73 19.1 188.5 5.37 271.89 815.67 209.4 6.02 274.68 824.03
27.5 65.6 27.2 132.4 4.82 347.94 1043.83 147.1 5.41 351.51 1054.53
27.5 65.6 34.4 104.7 4.82 440.04 1320.13 116.3 5.41 444.56 1333.67
27.5 65.6 44.5 80.9 4.82 569.24 1707.73 89.9 5.41 575.08 1725.25
29.5 59 63.5 56.7 4.34 730.57 2191.70 63.0 4.87 738.06 2214.18
29.5 59 80.3 44.8 4.34 923.85 2500.00 49.8 4.87 933.33 2500.00
29.5 59 104.0 34.6 4.34 1196.52 2500.00 38.5 4.87 1208.79 2500.00
32.5 53 148.0 24.3 3.90 1529.58 2500.00 27.0 4.37 1545.27 2500.00
32.5 53 187.0 19.3 3.90 1932.65 2500.00 21.4 4.37 1952.47 2500.00
32.5 53 242.0 14.9 3.90 2500.00 2500.00 16.5 4.37 2500.00 2500.00
35.5 47.8 346.0 10.4 3.51 2500.00 2500.00 11.6 3.94 2500.00 2500.00
35.5 47.8 437.0 8.2 3.51 2500.00 2500.00 9.2 3.94 2500.00 2500.00
35.5 47.8 565.0 6.4 3.51 2500.00 2500.00 7.1 3.94 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 487.8 6.62 129.52 388.56 585.4 10.06 164.06 492.17
25.5 73 11.7 341.9 5.96 166.55 499.65 410.3 9.06 210.96 632.89
25.5 73 14.7 272.1 5.96 209.25 627.76 326.5 9.06 265.06 795.17
25.5 73 19.1 209.4 5.96 271.89 815.67 251.3 9.06 344.39 1033.18
27.5 65.6 27.2 147.1 5.36 347.94 1043.83 176.5 8.14 440.73 1322.18
27.5 65.6 34.4 116.3 5.36 440.04 1320.13 139.5 8.14 557.39 1672.17
27.5 65.6 44.5 89.9 5.36 569.24 1707.73 107.9 8.14 721.04 2163.13
29.5 59 63.5 63.0 4.82 730.57 2191.70 75.6 7.32 925.39 2500.00
29.5 59 80.3 49.8 4.82 923.85 2500.00 59.8 7.32 1170.21 2500.00
29.5 59 104.0 38.5 4.82 1196.52 2500.00 46.2 7.32 1515.59 2500.00
32.5 53 148.0 27.0 4.33 1529.58 2500.00 32.4 6.58 1937.47 2500.00
32.5 53 187.0 21.4 4.33 1932.65 2500.00 25.7 6.58 2448.02 2500.00
32.5 53 242.0 16.5 4.33 2500.00 2500.00 19.8 6.58 2500.00 2500.00
35.5 47.8 346.0 11.6 3.90 2500.00 2500.00 13.9 5.93 2500.00 2500.00
35.5 47.8 437.0 9.2 3.90 2500.00 2500.00 11.0 5.93 2500.00 2500.00
35.5 47.8 565.0 7.1 3.90 2500.00 2500.00 8.5 5.93 2500.00 2500.00

37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w


37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w

Please let us know your requirements and we will provide you with transmission solutions.
