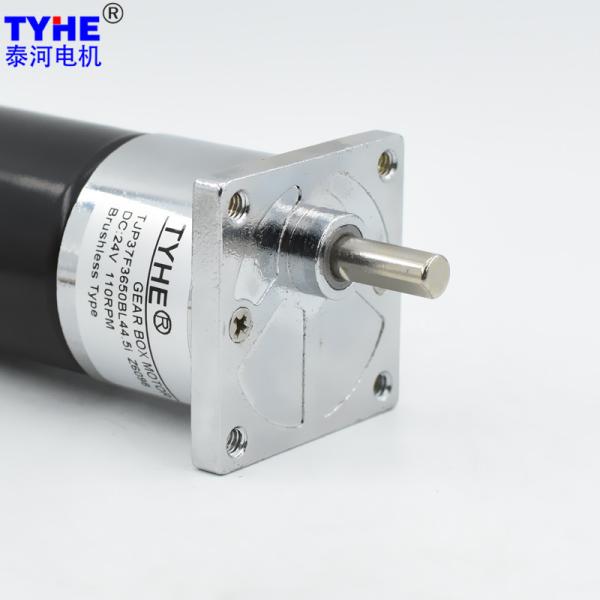

Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP37F3650BL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
120pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ37mm
Voltage :
6v 12v 24volt
Speed :
20-5000R or Customized
Torque :
1.88N.m
Gear material :
Powder metallurgy, Steel gears
Commutation :
Brushless
Type :
BLDC Gear Motor
Keywords :
Manufacturer Low Noise 37mm 12v 24v 10 Watt 15 W 100rpm Low Speed Big Torque 3nm Brushless Dc Gear Motor For Smart Robot
Description

Products Description

Manufacturer Low Noise 37mm 12v 24v 10 Watt 15 W 100rpm Low Speed Big Torque 3nm Brushless Dc Gear Motor For Smart Robot

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
3650BL 12 5000 350 4000 1.07 19.20 8.04 62.83 57.60 6.50
3650BL 24 5000 158 4000 0.54 19.80 8.29 63.85 59.40 3.65
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 487.8 6.51 127.53 382.58 487.8 6.72 131.51 394.53
25.5 73 11.7 341.9 5.87 163.99 491.96 341.9 6.05 169.11 507.34
25.5 73 14.7 272.1 5.87 206.04 618.11 272.1 6.05 212.47 637.42
25.5 73 19.1 209.4 5.87 267.71 803.12 209.4 6.05 276.07 828.21
27.5 65.6 27.2 147.1 5.28 342.59 1027.77 147.1 5.44 353.30 1059.89
27.5 65.6 34.4 116.3 5.28 433.27 1299.82 116.3 5.44 446.81 1340.44
27.5 65.6 44.5 89.9 5.28 560.49 1681.46 89.9 5.44 578.00 1734.00
29.5 59 63.5 63.0 4.74 719.33 2157.98 63.0 4.89 741.81 2225.42
29.5 59 80.3 49.8 4.74 909.64 2500.00 49.8 4.89 938.06 2500.00
29.5 59 104.0 38.5 4.74 1178.11 2500.00 38.5 4.89 1214.93 2500.00
32.5 53 148.0 27.0 4.26 1506.05 2500.00 27.0 4.40 1553.11 2500.00
32.5 53 187.0 21.4 4.26 1902.91 2500.00 21.4 4.40 1962.38 2500.00
32.5 53 242.0 16.5 4.26 2462.59 2500.00 16.5 4.40 2500.00 2500.00
35.5 47.8 346.0 11.6 3.84 2500.00 2500.00 11.6 3.96 2500.00 2500.00
35.5 47.8 437.0 9.2 3.84 2500.00 2500.00 9.2 3.96 2500.00 2500.00
35.5 47.8 565.0 7.1 3.84 2500.00 2500.00 7.1 3.96 2500.00 2500.00

Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm


Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm

Please let us know your requirements and we will provide you with transmission solutions.

Low Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpmLow Noise 3nm Brushless Dc Gear Motor For Smart Robot 24v 10Watt 15W 100rpm
