Specifications
Brand Name :
TYHE
Model Number :
TJP37FGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3V-24V custom
Speed :
20-5000rpm or Customized
Torque :
≤1.5N.m
Gear material :
Powder metallurgy gears
Commutation :
Brush brushes
Type :
DC gear micro Motor
Keywords :
Manufacturer TJP37FGb specifications rs 545 15 rpm 10kg cm torque 12v 24v 6 volt 10 watts 20 rpm dc gear motor ce
Description

Products Description

Manufacturer TJP37FGb specifications rs 545 15 rpm 10kg cm torque 12v 24v 6 volt 10 watts 20 rpm dc gear motor ce

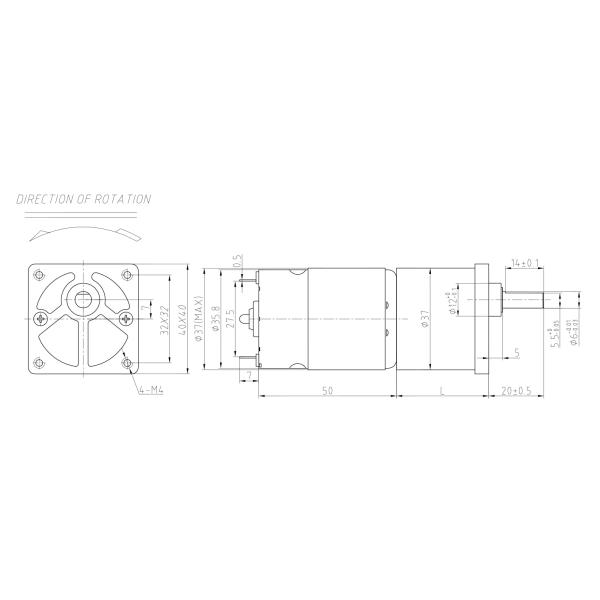

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 312.2 2.43 74.39 223.17 195.1 1.21 59.45 178.34
25.5 73 11.7 218.8 2.19 95.66 286.98 136.8 1.09 76.44 229.33
25.5 73 14.7 174.1 2.19 120.19 360.56 108.8 1.09 96.04 288.13
25.5 73 19.1 134.0 2.19 156.16 468.48 83.8 1.09 124.79 374.37
27.5 65.6 27.2 94.1 1.97 199.84 599.53 58.8 0.98 159.70 479.09
27.5 65.6 34.4 74.4 1.97 252.74 758.23 46.5 0.98 201.97 605.91
27.5 65.6 44.5 57.5 1.97 326.95 980.85 36.0 0.98 261.27 783.81
29.5 59 63.5 40.3 1.77 419.61 1258.82 25.2 0.88 335.31 1005.94
29.5 59 80.3 31.9 1.77 530.62 1591.87 19.9 0.88 424.02 1272.07
29.5 59 104.0 24.6 1.77 687.23 2061.70 15.4 0.88 549.17 1647.52
32.5 53 148.0 17.3 1.59 878.53 2500.00 10.8 0.79 702.04 2106.11
32.5 53 187.0 13.7 1.59 1110.03 2500.00 8.6 0.79 887.03 2500.00
32.5 53 242.0 10.6 1.59 1436.51 2500.00 6.6 0.79 1147.93 2500.00
35.5 47.8 346.0 7.4 1.44 1852.35 2500.00 4.6 0.72 1480.22 2500.00
35.5 47.8 437.0 5.9 1.44 2339.52 2500.00 3.7 0.72 1869.53 2500.00
35.5 47.8 565.0 4.5 1.44 2500.00 2500.00 2.8 0.72 2417.13 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 7.12 116.24 348.71 809.8 10.87 128.19 384.57
25.5 73 11.7 410.3 6.42 149.47 448.40 567.5 9.80 164.84 494.52
25.5 73 14.7 326.5 6.42 187.79 563.38 451.7 9.80 207.11 621.32
25.5 73 19.1 251.3 6.42 244.00 732.01 347.6 9.80 269.10 807.30
27.5 65.6 27.2 176.5 5.77 312.26 936.77 244.1 8.80 344.37 1033.12
27.5 65.6 34.4 139.5 5.77 394.91 1184.74 193.0 8.80 435.53 1306.59
27.5 65.6 44.5 107.9 5.77 510.86 1532.58 149.2 8.80 563.41 1690.22
29.5 59 63.5 75.6 5.19 655.64 1966.91 104.6 7.92 723.07 2169.22
29.5 59 80.3 59.8 5.19 829.10 2487.29 82.7 7.92 914.38 2500.00
29.5 59 104.0 46.2 5.19 1073.80 2500.00 63.8 7.92 1184.25 2500.00
32.5 53 148.0 32.4 4.66 1372.70 2500.00 44.9 7.11 1513.89 2500.00
32.5 53 187.0 25.7 4.66 1734.43 2500.00 35.5 7.11 1912.82 2500.00
32.5 53 242.0 19.8 4.66 2244.55 2500.00 27.4 7.11 2475.42 2500.00
35.5 47.8 346.0 13.9 4.20 2500.00 2500.00 19.2 6.41 2500.00 2500.00
35.5 47.8 437.0 11.0 4.20 2500.00 2500.00 15.2 6.41 2500.00 2500.00
35.5 47.8 565.0 8.5 4.20 2500.00 2500.00 11.8 6.41 2500.00 2500.00

Rs 545 15 Rpm 10kg Cm Torque 12V Dc Gear Motor 24v 6V 10W 20 Rpm TJP37FGb


Rs 545 15 Rpm 10kg Cm Torque 12V Dc Gear Motor 24v 6V 10W 20 Rpm TJP37FGb

Please let us know your requirements and we will provide you with transmission solutions.
