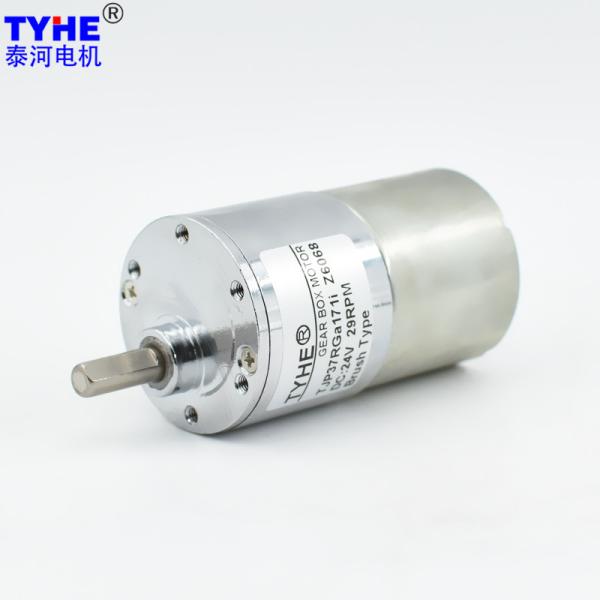

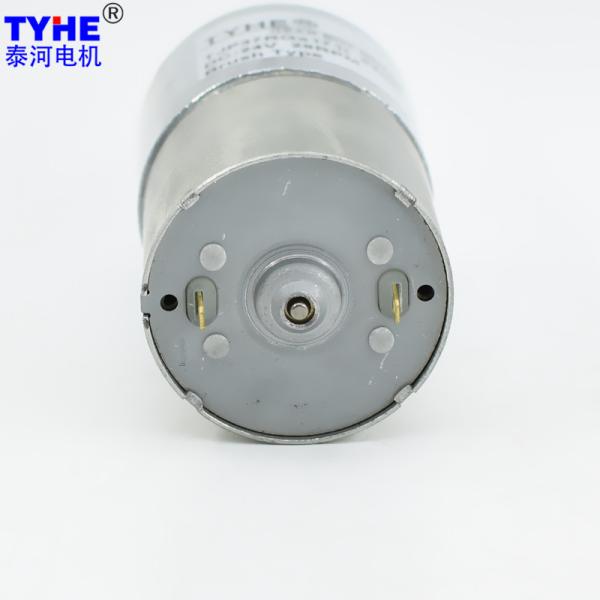

Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
Specifications
Brand Name :
TYHE
Model Number :
TJP37RGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm Dia
Voltage :
6-24v or customized
Speed :
45rpm or Customized
Torque :
2N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
brushes
Type :
DC Gear Motor, Micro DC gear Motor
Usage :
Shoe covers machine
Keywords :
Permanent Magnet Micro 3 Volt 6 Volt 12v 24v 3500rpm High Rpm 6w 10kg Cm Brush Dc Geared Motor Low Price
Description

Products Description

Permanent Magnet Micro 3 Volt 6 Volt 12v 24v 3500rpm High Rpm 6w 10kg Cm Brush Dc Geared Motor Low Price

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 12 7500 160 6000 0.80 9.50 5.97 62.30 28.50 6.70
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 430.8 1.26 27.90 83.71 615.4 3.02 46.86 140.58
22.5 81 7.6 368.4 1.26 32.63 97.88 526.3 3.02 54.79 164.37
22.5 73 9.3 301.1 1.13 35.98 107.95 430.1 2.72 60.42 181.27
22.5 73 11.8 237.3 1.13 45.65 136.96 339.0 2.72 76.66 229.99
22.5 73 15.2 184.2 1.13 58.81 176.43 263.2 2.72 98.75 296.26
22.5 73 20.4 137.3 1.13 78.93 236.78 196.1 2.72 132.54 397.62
24.5 65.6 27.5 101.8 1.02 95.61 286.84 145.5 2.45 160.56 481.67
24.5 65.6 35.6 78.7 1.02 123.77 371.32 112.4 2.45 207.85 623.54
24.5 65.6 41.6 67.3 1.02 144.63 433.90 96.2 2.45 242.88 728.63
24.5 65.6 57.7 48.5 1.02 200.61 601.83 69.3 2.45 336.88 1010.63
26.5 59 73.4 38.1 0.92 229.52 688.57 54.5 2.20 385.42 1156.27
26.5 59 83 33.7 0.92 259.54 778.62 48.2 2.20 435.83 1307.50
26.5 59 97 28.9 0.92 303.32 909.96 41.2 2.20 509.35 1528.04
26.5 59 111 25.2 0.92 347.10 1041.29 36.0 2.20 582.86 1748.58
26.5 59 119 23.5 0.92 372.11 1116.34 33.6 2.20 624.87 1874.61
26.5 59 130 21.5 0.92 406.51 1219.53 30.8 2.20 682.63 2047.89
29.5 53 194 14.4 0.82 544.95 1634.84 20.6 1.98 915.10 2500.00
29.5 53 226 12.4 0.82 634.83 1904.50 17.7 1.98 1066.04 2500.00
29.5 53 259 10.8 0.82 727.53 2182.59 15.4 1.98 1221.70 2500.00
29.5 53 277 10.1 0.82 778.09 2334.28 14.4 1.98 1306.61 2500.00
29.5 53 303 9.2 0.82 851.13 2500.00 13.2 1.98 1429.25 2500.00
29.5 53 316 8.9 0.82 887.64 2500.00 12.7 1.98 1490.57 2500.00
29.5 53 346 8.1 0.82 971.91 2500.00 11.6 1.98 1632.08 2500.00
29.5 53 382 7.3 0.82 1073.04 2500.00 10.5 1.98 1801.89 2500.00
32.5 47.8 452 6.2 0.74 1145.10 2500.00 8.8 1.78 1922.90 2500.00
32.5 47.8 528 5.3 0.74 1337.64 2500.00 7.6 1.78 2246.22 2500.00
32.5 47.8 604 4.6 0.74 1530.17 2500.00 6.6 1.78 2500.00 2500.00
32.5 47.8 665 4.2 0.74 1684.71 2500.00 6.0 1.78 2500.00 2500.00
32.5 47.8 733 3.8 0.74 1856.98 2500.00 5.5 1.78 2500.00 2500.00
32.5 47.8 808 3.5 0.74 2046.99 2500.00 5.0 1.78 2500.00 2500.00
32.5 47.8 890 3.1 0.74 2254.73 2500.00 4.5 1.78 2500.00 2500.00
32.5 43 1232 2.3 0.67 2500.00 2500.00 3.2 1.60 2500.00 2500.00
32.5 43 1408 2.0 0.67 2500.00 2500.00 2.8 1.60 2500.00 2500.00
32.5 43 1552 1.8 0.67 2500.00 2500.00 2.6 1.60 2500.00 2500.00
32.5 43 1711 1.6 0.67 2500.00 2500.00 2.3 1.60 2500.00 2500.00
32.5 43 2077 1.3 0.67 2500.00 2500.00 1.9 1.60 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-7500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 923.1 4.83 50.02 150.05 615.4 3.09 48.02 144.05
22.5 81 7.6 789.5 4.83 58.48 175.45 526.3 3.09 56.14 168.43
22.5 73 9.3 645.2 4.36 64.50 193.49 430.1 2.79 61.92 185.75
22.5 73 11.8 508.5 4.36 81.83 245.50 339.0 2.79 78.56 235.68
22.5 73 15.2 394.7 4.36 105.41 316.24 263.2 2.79 101.20 303.59
22.5 73 20.4 294.1 4.36 141.47 424.42 196.1 2.79 135.82 407.45
24.5 65.6 27.5 218.2 3.92 171.38 514.14 145.5 2.51 164.52 493.57
24.5 65.6 35.6 168.5 3.92 221.86 665.58 112.4 2.51 212.98 638.95
24.5 65.6 41.6 144.2 3.92 259.25 777.75 96.2 2.51 248.88 746.64
24.5 65.6 57.7 104.0 3.92 359.59 1078.76 69.3 2.51 345.20 1035.61
26.5 59 73.4 81.7 3.52 411.41 1234.22 54.5 2.25 394.95 1184.85
26.5 59 83 72.3 3.52 465.22 1395.65 48.2 2.25 446.61 1339.82
26.5 59 97 61.9 3.52 543.69 1631.06 41.2 2.25 521.94 1565.81
26.5 59 111 54.1 3.52 622.16 1866.47 36.0 2.25 597.27 1791.81
26.5 59 119 50.4 3.52 667.00 2000.99 33.6 2.25 640.32 1920.95
26.5 59 130 46.2 3.52 728.65 2185.95 30.8 2.25 699.50 2098.51
29.5 53 194 30.9 3.16 976.79 2500.00 20.6 2.02 937.72 2500.00
29.5 53 226 26.5 3.16 1137.91 2500.00 17.7 2.02 1092.39 2500.00
29.5 53 259 23.2 3.16 1304.07 2500.00 15.4 2.02 1251.90 2500.00
29.5 53 277 21.7 3.16 1394.70 2500.00 14.4 2.02 1338.91 2500.00
29.5 53 303 19.8 3.16 1525.61 2500.00 13.2 2.02 1464.58 2500.00
29.5 53 316 19.0 3.16 1591.06 2500.00 12.7 2.02 1527.42 2500.00
29.5 53 346 17.3 3.16 1742.11 2500.00 11.6 2.02 1672.43 2500.00
29.5 53 382 15.7 3.16 1923.37 2500.00 10.5 2.02 1846.44 2500.00
32.5 47.8 452 13.3 2.85 2052.53 2500.00 8.8 1.83 1970.43 2500.00
32.5 47.8 528 11.4 2.85 2397.65 2500.00 7.6 1.83 2301.74 2500.00
32.5 47.8 604 9.9 2.85 2500.00 2500.00 6.6 1.83 2500.00 2500.00
32.5 47.8 665 9.0 2.85 2500.00 2500.00 6.0 1.83 2500.00 2500.00
32.5 47.8 733 8.2 2.85 2500.00 2500.00 5.5 1.83 2500.00 2500.00
32.5 47.8 808 7.4 2.85 2500.00 2500.00 5.0 1.83 2500.00 2500.00
32.5 47.8 890 6.7 2.85 2500.00 2500.00 4.5 1.83 2500.00 2500.00
32.5 43 1232 4.9 2.57 2500.00 2500.00 3.2 1.64 2500.00 2500.00
32.5 43 1408 4.3 2.57 2500.00 2500.00 2.8 1.64 2500.00 2500.00
32.5 43 1552 3.9 2.57 2500.00 2500.00 2.6 1.64 2500.00 2500.00
32.5 43 1711 3.5 2.57 2500.00 2500.00 2.3 1.64 2500.00 2500.00
32.5 43 2077 2.9 2.57 2500.00 2500.00 1.9 1.64 2500.00 2500.00

Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w


Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w

Please let us know your requirements and we will provide you with transmission solutions.

Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w

Permanent Magnet Micro 12v DC Gear Motor 3V 6V 24v 3500rpm High Rpm 6w
