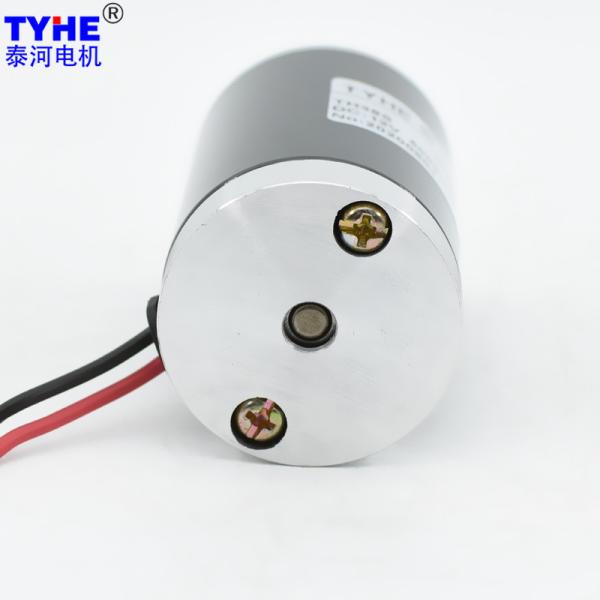

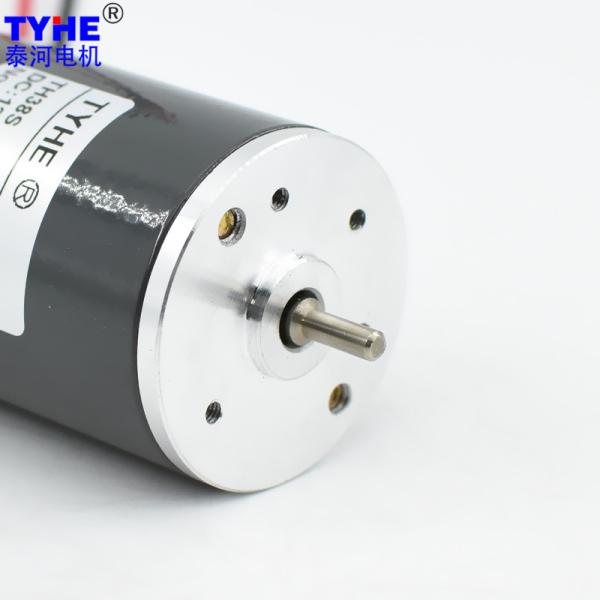

38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake
Specifications
Brand Name :
TYHE
Model Number :
TH38S
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
38mm*64mm
Voltage :
12V 24V or customize
Speed :
5000 rpm or Customized
Torque :
25mN.m
Commutation :
brushed
Type :
Brushed dc motor, mini dc motor
Keywords :
Manufacturer 38*64mm housing 12v 17v 24v 3000rpm 5000 rpm 3600 rpm high speed high torque brushed dc motor with brake
Description

Products Description

Manufacturer 38*64mm housing 12v 24v 3000rpm 5000 rpm 3600 rpm high speed high torque brushed dc motor with brake

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
TH38S 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
TH38S 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
TH38S 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
TH38S 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
TH38S 24 3200 80 2560 0.25 14.30 3.83 63.89 42.90 1.30
TH38S 24 4000 120 3200 0.40 17.90 6.00 62.48 53.70 2.20
TH38S 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
TH38S 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
TH38S 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
TH38S 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
TH38S 24 10000 350 8000 1.53 27.50 23.04 62.94 82.50 10.00

2D drawing

38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake


38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
TH38S 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
TH38S 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
TH38S 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
TH38S 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
TH38S 24 3200 80 2560 0.25 14.30 3.83 63.89 42.90 1.30
TH38S 24 4000 120 3200 0.40 17.90 6.00 62.48 53.70 2.20
TH38S 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
TH38S 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
TH38S 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
TH38S 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
TH38S 24 10000 350 8000 1.53 27.50 23.04 62.94 82.50 10.00

38*64mm 17v 3000rpm Brushed Dc Motor 250mA With Brake

Please let us know your requirements and we will provide you with transmission solutions.
