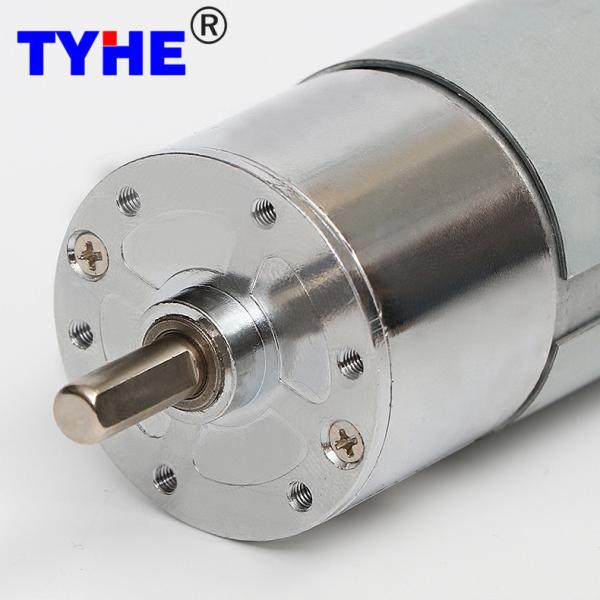

China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
6V-24V or customized
Speed :
Customized
Torque :
2.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushed
Type :
DC Gear Motor, Mini Motor
Usage :
Smart mop,Home Appliance
Keywords :
China supplier 37mm 115gearmotor 10000rpm 12v 24v 18v high torque 5kgcm 120rpm 150rpm low rpm micro dc gear motor for toy tool
Description

Products Description

China supplier 37mm 115gearmotor 10000rpm 12v 24v 18v high torque 5kgcm 120rpm 150rpm low rpm micro dc gear motor for toy tool

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37RGb φ37mm RS545 6mm-D cut 305g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 556.5 2.43 41.73 125.19 347.8 1.21 33.35 100.04
22.5 81 5.9 433.9 2.43 53.52 160.57 271.2 1.21 42.77 128.32
22.5 73 8.4 304.8 2.19 68.68 206.04 190.5 1.09 54.88 164.64
22.5 73 10.6 241.5 2.19 86.67 260.00 150.9 1.09 69.26 207.77
22.5 73 13.5 189.6 2.19 110.38 331.13 118.5 1.09 88.20 264.61
24.5 65.6 19.3 132.6 1.97 141.80 425.40 82.9 0.98 113.31 339.94
24.5 65.6 24.4 104.9 1.97 179.27 537.82 65.6 0.98 143.26 429.77
24.5 65.6 31.6 81.0 1.97 232.17 696.51 50.6 0.98 185.53 556.59
26.5 59 45.0 56.9 1.77 297.36 892.08 35.6 0.88 237.62 712.87
26.5 59 57.0 44.9 1.77 376.66 1129.97 28.1 0.88 300.99 902.97
26.5 59 73.6 34.8 1.77 486.35 1459.05 21.7 0.88 388.64 1165.93
29.5 53 105.0 24.4 1.59 623.28 1869.84 15.2 0.79 498.07 1494.20
29.5 53 133.0 19.2 1.59 789.49 2368.46 12.0 0.79 630.89 1892.66
29.5 53 172.0 14.9 1.59 1020.99 2500.00 9.3 0.79 815.88 2447.65
32.5 47.8 245.0 10.4 1.44 1311.63 2500.00 6.5 0.72 1048.13 2500.00
32.5 47.8 310.0 8.3 1.44 1659.62 2500.00 5.2 0.72 1326.21 2500.00
32.5 47.8 401.0 6.4 1.44 2146.79 2500.00 4.0 0.72 1715.52 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1043.5 7.12 65.21 195.62 1443.5 10.87 71.91 215.74
22.5 81 5.9 813.6 7.12 83.63 250.90 1125.4 10.87 92.23 276.70
22.5 73 8.4 571.4 6.42 107.31 321.93 790.5 9.80 118.35 355.04
22.5 73 10.6 452.8 6.42 135.42 406.25 626.4 9.80 149.34 448.03
22.5 73 13.5 355.6 6.42 172.46 517.39 491.9 9.80 190.20 570.60
24.5 65.6 19.3 248.7 5.77 221.56 664.69 344.0 8.80 244.35 733.06
24.5 65.6 24.4 196.7 5.77 280.11 840.34 272.1 8.80 308.92 926.77
24.5 65.6 31.6 151.9 5.77 362.77 1088.30 210.1 8.80 400.08 1200.24
26.5 59 45.0 106.7 5.19 464.63 1393.88 147.6 7.92 512.42 1537.25
26.5 59 57.0 84.2 5.19 588.53 1765.58 116.5 7.92 649.06 1947.18
26.5 59 73.6 65.2 5.19 759.92 2279.76 90.2 7.92 838.08 2500.00
29.5 53 105.0 45.7 4.66 973.88 2500.00 63.2 7.11 1074.05 2500.00
29.5 53 133.0 36.1 4.66 1233.58 2500.00 49.9 7.11 1360.46 2500.00
29.5 53 172.0 27.9 4.66 1595.30 2500.00 38.6 7.11 1759.39 2500.00
32.5 47.8 245.0 19.6 4.20 2049.43 2500.00 27.1 6.41 2260.22 2500.00
32.5 47.8 310.0 15.5 4.20 2500.00 2500.00 21.4 6.41 2500.00 2500.00
32.5 47.8 401.0 12.0 4.20 2500.00 2500.00 16.6 6.41 2500.00 2500.00

China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor


China Supplier 37mm 115gearmotor 10000rpm 12v 24v 18v High Torque 5kgcm 120rpm 150rpm Low Rpm Micro Dc Gear Motor

Please let us know your requirements and we will provide you with transmission solutions.
