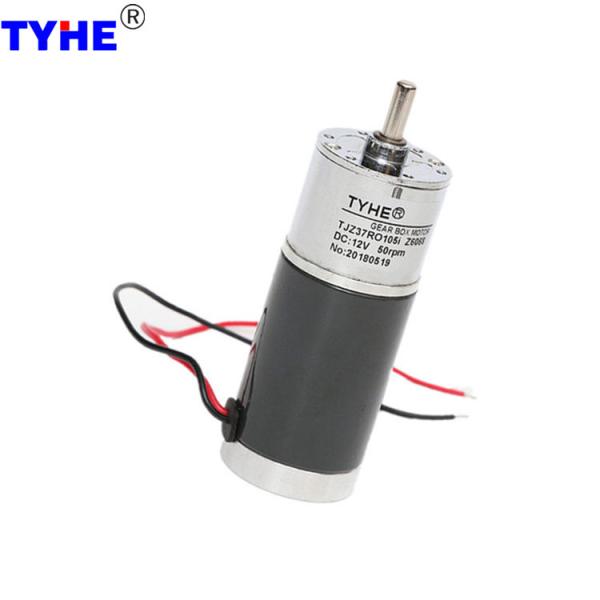

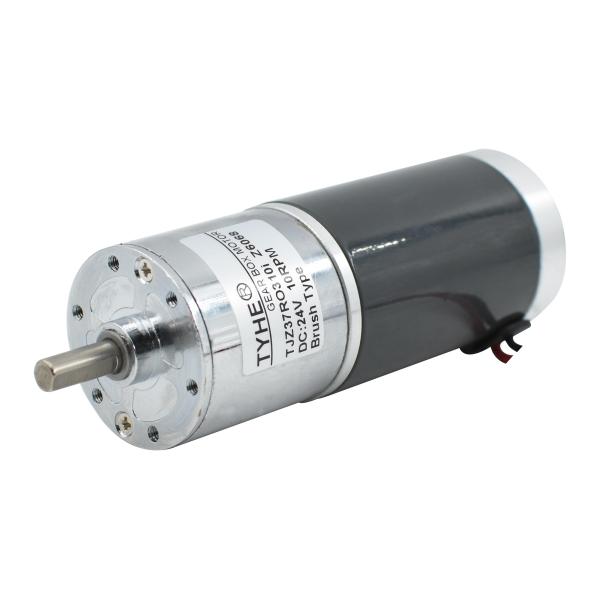

Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
3V 6V 12V 24V or Customized
Speed :
60rpm or customized
Torque :
2.48N.m
Gear material :
Powder metallurgy gear, steel gears
Commutation :
Brush brushes
Type :
Dc Small Gear Motor, Micro Motor
Keywords :
Powerful 37mm gearmotor 1.5v 3v 6v 12 v 24v 1rpm 500 rpm 120rpm high torque 15kgcm 20kgf small dc geared motor Ce Rohs
Description

Powerful 37mm gearmotor 1.5v 3v 6v 12 v 24v 1rpm 500 rpm 120rpm high torque 15kgcm 20kgf small dc geared motor Ce Rohs

Products Description

Small Diameter 37mm Gear Box 12v 24 V 180 Rpm 60rpm High Torque Low Speed 20 Watt 10w 2nm Brushed Dc Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 869.6 6.68 73.40 220.21 1043.5 8.26 75.64 226.91
22.5 81 5.9 678.0 6.68 94.15 282.44 813.6 8.26 97.01 291.04
22.5 73 8.4 476.2 6.0 120.80 362.40 571.43 7.45 124.48 373.44
22.5 73 10.6 377.4 6.0 152.44 457.32 452.83 7.45 157.08 471.24
22.5 73 13.5 296.3 6.0 194.14 582.43 355.56 7.45 200.06 600.17
24.5 65.6 19.3 207.3 5.41 249.42 748.25 248.7 6.69 257.01 771.04
24.5 65.6 24.4 163.9 5.41 315.33 945.98 196.7 6.69 324.93 974.79
24.5 65.6 31.6 126.6 5.41 408.37 1225.12 151.9 6.69 420.81 1262.43
26.5 59 45.0 88.9 4.9 523.04 1569.11 106.67 6.02 538.97 1616.90
26.5 59 57.0 70.2 4.9 662.51 1987.53 84.21 6.02 682.69 2048.07
26.5 59 73.6 54.3 4.9 855.45 2500.00 65.22 6.02 881.51 2500.00
29.5 53 105.0 38.1 4.37 1096.31 2500.00 45.7 5.41 1129.70 2500.00
29.5 53 133.0 30.1 4.37 1388.65 2500.00 36.1 5.41 1430.95 2500.00
29.5 53 172.0 23.3 4.37 1795.85 2500.00 27.9 5.41 1850.55 2500.00
32.5 47.8 245.0 16.3 3.9 2307.07 2500.00 19.59 4.88 2377.33 2500.00
32.5 47.8 310.0 12.9 3.9 2500.00 2500.00 15.48 4.88 2500.00 2500.00
32.5 47.8 401.0 10.0 3.9 2500.00 2500.00 11.97 4.88 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-4500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 782.6 5.56 67.81 203.44 869.6 6.62 72.66 217.97
22.5 81 5.9 610.2 5.56 86.98 260.93 678.0 6.62 93.19 279.57
22.5 73 8.4 428.6 5.0 111.60 334.81 476.19 5.96 119.57 358.72
22.5 73 10.6 339.6 5.0 140.83 422.49 377.36 5.96 150.89 452.67
22.5 73 13.5 266.7 5.0 179.36 538.08 296.30 5.96 192.17 576.52
24.5 65.6 19.3 186.5 4.50 230.43 691.28 207.3 5.36 246.89 740.66
24.5 65.6 24.4 147.5 4.50 291.32 873.95 163.9 5.36 312.12 936.37
24.5 65.6 31.6 113.9 4.50 377.28 1131.84 126.6 5.36 404.23 1212.68
26.5 59 45.0 80.0 4.0 483.21 1449.63 88.89 4.82 517.73 1553.18
26.5 59 57.0 63.2 4.0 612.07 1836.20 70.18 4.82 655.79 1967.36
26.5 59 73.6 48.9 4.0 790.32 2370.95 54.35 4.82 846.77 2500.00
29.5 53 105.0 34.3 3.64 1012.83 2500.00 38.1 4.33 1085.18 2500.00
29.5 53 133.0 27.1 3.64 1282.92 2500.00 30.1 4.33 1374.56 2500.00
29.5 53 172.0 20.9 3.64 1659.11 2500.00 23.3 4.33 1777.62 2500.00
32.5 47.8 245.0 14.7 3.3 2131.40 2500.00 16.33 3.90 2283.65 2500.00
32.5 47.8 310.0 11.6 3.3 2500.00 2500.00 12.90 3.90 2500.00 2500.00
32.5 47.8 401.0 9.0 3.3 2500.00 2500.00 9.98 3.90 2500.00 2500.00

2D drawing

Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque


Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque

Please let us know your requirements and we will provide you with transmission solutions.

Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque

Powerful Small Dc Geared Motor 37mm Gearmotor 120rpm High Torque
