Specifications
Brand Name :
TYHE
Model Number :
TJZ37FOO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ37mm size
Voltage :
12v-24v or customized
Speed :
Customized
Torque :
≤2.50N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushed
Type :
DC Micro Motor、DC gear motor
Usage :
Paper dispenser,Massage chair
Keywords :
Reversible tyhe 37mm gearbox 12 volt 12v 24v 35w 25 watt 15rpm 20rpm 25 rpm 2nm high torque low speed dc geared motor for bbq
Description

Products Description

Reversible tyhe 37mm gearbox 12 volt 12v 24v 35w 25 watt 15rpm 20rpm 25 rpm 2nm high torque low speed dc geared motor

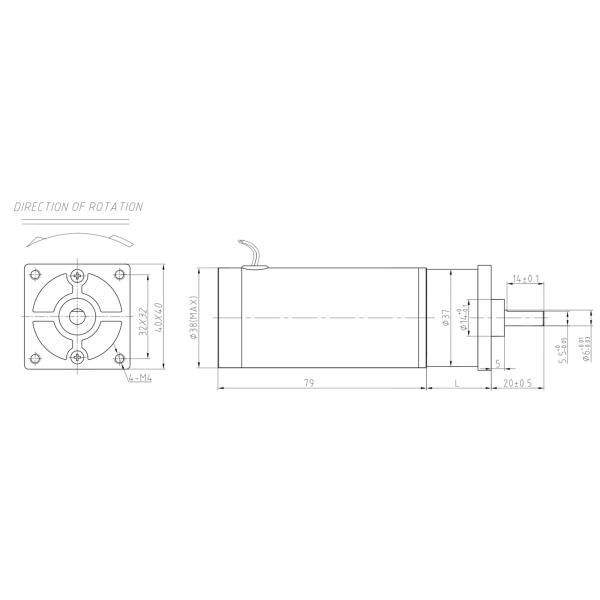

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37FOO φ37mm TH38S-1 6mm-D cut 360g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3879 12 4500 350 3600 1.23 24.50 9.24 62.83 73.50 7.00
ZY3879 12 5000 400 4000 1.35 24.50 10.26 63.34 73.50 7.50
ZY3879 12 8000 900 6400 2.65 29.70 19.90 62.59 89.10 13.00
ZY3879 24 3500 100 2800 0.48 24.90 7.30 63.37 74.70 3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 782.6 7.48 91.29 273.86 869.6 8.31 91.29 273.86
22.5 81 5.9 610.2 7.48 117.09 351.26 678.0 8.31 117.09 351.26
22.5 73 8.4 428.6 6.74 150.23 450.70 476.2 7.49 150.23 450.70
22.5 73 10.6 339.6 6.74 189.58 568.74 377.4 7.49 189.58 568.74
22.5 73 13.5 266.7 6.74 241.45 724.34 296.3 7.49 241.45 724.34
24.5 65.6 19.3 186.5 6.06 310.19 930.57 207.3 6.73 310.19 930.57
24.5 65.6 24.4 147.5 6.06 392.16 1176.47 163.9 6.73 392.16 1176.47
24.5 65.6 31.6 113.9 6.06 507.88 1523.63 126.6 6.73 507.88 1523.63
26.5 59 45.0 80.0 5.45 650.48 1951.43 88.9 6.05 650.48 1951.43
26.5 59 57.0 63.2 5.45 823.94 2471.81 70.2 6.05 823.94 2471.81
26.5 59 73.6 48.9 5.45 1063.89 2500.00 54.3 6.05 1063.89 2500.00
29.5 53 105.0 34.3 4.89 1363.43 2500.00 38.1 5.44 1363.43 2500.00
29.5 53 133.0 27.1 4.89 1727.01 2500.00 30.1 5.44 1727.01 2500.00
29.5 53 172.0 20.9 4.89 2233.42 2500.00 23.3 5.44 2233.42 2500.00
32.5 47.8 245.0 14.7 4.41 2500.00 2500.00 16.3 4.91 2500.00 2500.00
32.5 47.8 310.0 11.6 4.41 2500.00 2500.00 12.9 4.91 2500.00 2500.00
32.5 47.8 401.0 9.0 4.41 2500.00 2500.00 10.0 4.91 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-8000RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1391.3 16.12 110.66 331.99 608.7 5.91 92.78 278.33
22.5 81 5.9 1084.7 16.12 141.94 425.81 474.6 5.91 119.00 356.99
22.5 73 8.4 761.9 14.53 182.12 546.36 333.3 5.33 152.69 458.06
22.5 73 10.6 603.8 14.53 229.82 689.46 264.2 5.33 192.68 578.03
22.5 73 13.5 474.1 14.53 292.69 878.08 207.4 5.33 245.39 736.17
24.5 65.6 19.3 331.6 13.06 376.03 1128.08 145.1 4.79 315.25 945.76
24.5 65.6 24.4 262.3 13.06 475.39 1426.17 114.8 4.79 398.56 1195.68
24.5 65.6 31.6 202.5 13.06 615.67 1847.01 88.6 4.79 516.17 1548.50
26.5 59 45.0 142.2 11.74 788.54 2365.61 62.2 4.31 661.10 1983.29
26.5 59 57.0 112.3 11.74 998.81 2500.00 49.1 4.31 837.39 2500.00
26.5 59 73.6 87.0 11.74 1289.69 2500.00 38.0 4.31 1081.26 2500.00
29.5 53 105.0 61.0 10.55 1652.81 2500.00 26.7 3.87 1385.69 2500.00
29.5 53 133.0 48.1 10.55 2093.55 2500.00 21.1 3.87 1755.20 2500.00
29.5 53 172.0 37.2 10.55 2500.00 2500.00 16.3 3.87 2269.88 2500.00
32.5 47.8 245.0 26.1 9.51 2500.00 2500.00 11.4 3.49 2500.00 2500.00
32.5 47.8 310.0 20.6 9.51 2500.00 2500.00 9.0 3.49 2500.00 2500.00
32.5 47.8 401.0 16.0 9.51 2500.00 2500.00 7.0 3.49 2500.00 2500.00

Reversible Tyhe Dc Geared Motor 37mm Gearbox 12v High Torque Low Speed​


Reversible Tyhe Dc Geared Motor 37mm Gearbox 12v High Torque Low Speed

Please let us know your requirements and we will provide you with transmission solutions.
