Specifications
Brand Name :
TYHE
Model Number :
TJZ37FQ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
6v-24v or customized
Speed :
Customized
Torque :
≤2.50N.m
Gear material :
steel gear
Commutation :
brushed
Type :
Gear Motor, DC mini Motor
Usage :
Water meter, Auto grill
Keywords :
Speed adjustable 3v 6v 12v 24v 10 rpm 20rpm 1000 rpm low rpm 0.5nm 5kg load high torque 4w 3 watt dc metal gear box motor
Description

Products Description

Speed adjustable 3v 6v 12v 24v 10 rpm 20rpm 1000 rpm low rpm 0.5nm 5kg load high torque 3 watt dc metal gear box motor

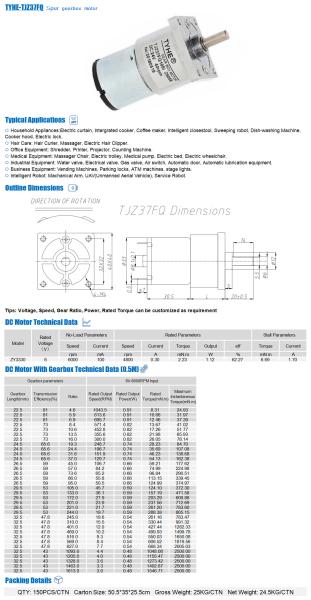

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37FQ φ37mm 528 6mm-D cut 170g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3330 6 6000 100 4800 0.30 2.23 1.12 62.27 6.69 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1043.5 0.91 8.31 24.93
22.5 81 5.9 813.6 0.91 10.66 31.97
22.5 81 6.9 695.7 0.91 12.46 37.39
22.5 73 8.4 571.4 0.82 13.67 41.02
22.5 73 10.6 452.8 0.82 17.26 51.77
22.5 73 13.5 355.6 0.82 21.98 65.93
22.5 73 16.0 300.0 0.82 26.05 78.14
24.5 65.6 19.3 248.7 0.74 28.23 84.70
24.5 65.6 24.4 196.7 0.74 35.69 107.08
24.5 65.6 31.6 151.9 0.74 46.23 138.68
24.5 65.6 37.0 129.7 0.74 54.13 162.38
26.5 59 45.0 106.7 0.66 59.21 177.62
26.5 59 57.0 84.2 0.66 74.99 224.98
26.5 59 73.6 65.2 0.66 96.84 290.51
26.5 59 86.0 55.8 0.66 113.15 339.45
26.5 59 95.0 50.5 0.66 124.99 374.97
29.5 53 105.0 45.7 0.59 124.10 372.30
29.5 53 133.0 36.1 0.59 157.19 471.58
29.5 53 172.0 27.9 0.59 203.29 609.86
29.5 53 201.0 23.9 0.59 237.56 712.69
29.5 53 221.0 21.7 0.59 261.20 783.60
29.5 53 244.0 19.7 0.59 288.38 865.15
32.5 47.8 245.0 19.6 0.54 261.16 783.47
32.5 47.8 310.0 15.5 0.54 330.44 991.32
32.5 47.8 401.0 12.0 0.54 427.44 1282.33
32.5 47.8 469.0 10.2 0.54 499.93 1499.78
32.5 47.8 516.0 9.3 0.54 550.03 1650.08
32.5 47.8 569.0 8.4 0.54 606.52 1819.56
32.5 47.8 627.0 7.7 0.54 668.34 2005.03
32.5 43 1093.0 4.4 0.48 1048.08 2500.00
32.5 43 1205.0 4.0 0.48 1155.47 2500.00
32.5 43 1328.0 3.6 0.48 1273.42 2500.00
32.5 43 1463.0 3.3 0.48 1402.87 2500.00
32.5 43 1613.0 3.0 0.48 1546.71 2500.00

High Torque Dc Metal Gear Box Motor 12v 1000 Rpm Low Rpm 0.5nm Load


High Torque Dc Metal Gear Box Motor 12v 1000 Rpm Low Rpm 0.5nm Load

Please let us know your requirements and we will provide you with transmission solutions.

High Torque Dc Metal Gear Box Motor 12v 1000 Rpm Low Rpm 0.5nm Load

High Torque Dc Metal Gear Box Motor 12v 1000 Rpm Low Rpm 0.5nm Load
