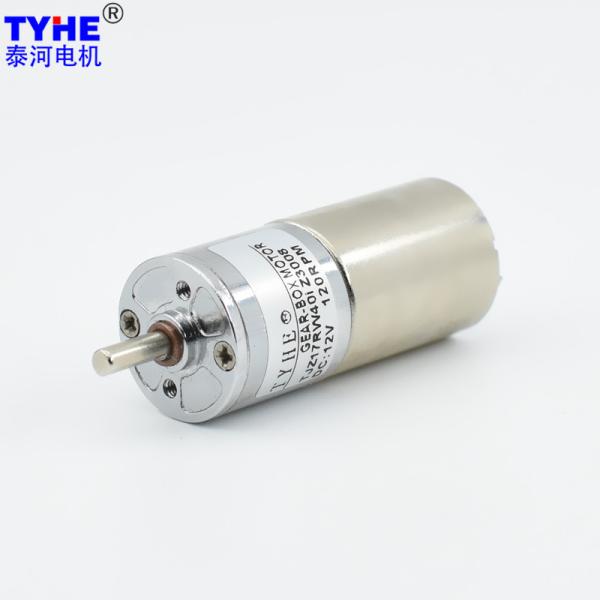

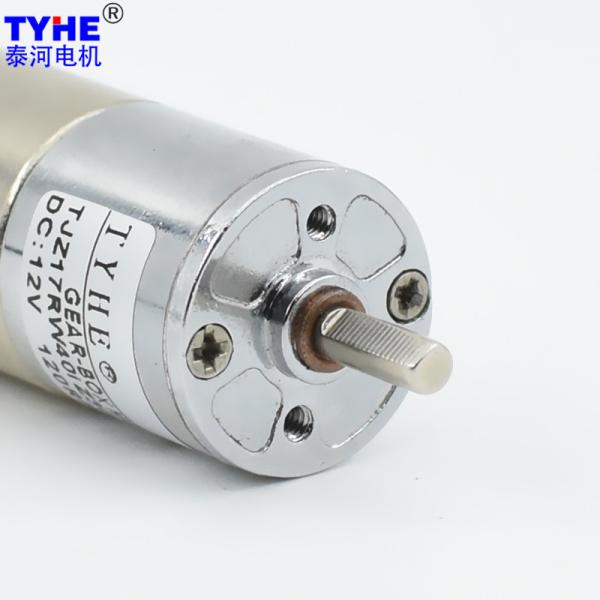

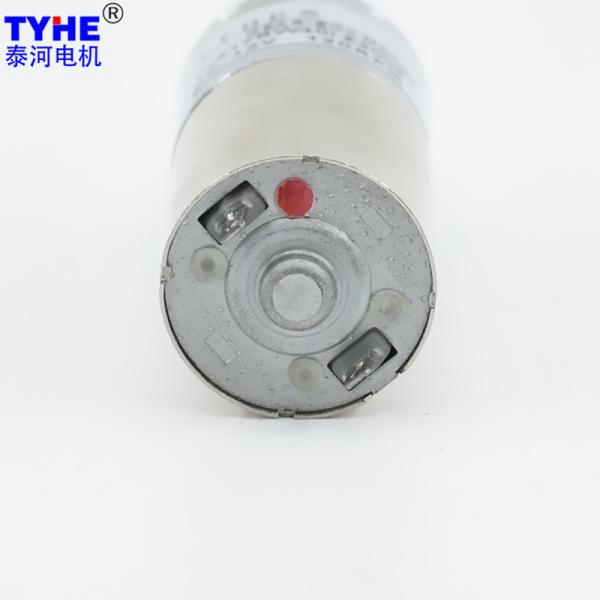

Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm
Specifications
Brand Name :
TYHE
Model Number :
TJZ17RW
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
17mm Dia
Voltage :
1.5v~24v
Speed :
15-1500rpm
Torque :
≤0.55N.m
Gear material :
Powder metallurgy
Type :
DC Gear Motor, Mini Motor
Usage :
Parking lock and so on
Keywords :
Diameter 17mm 3v 4 volt 9 volt 12v 24v 180rpm 50rpm 60 rpm 1w 2w 1.5w 0.5nm 3kg cm dc gear motor with encoder
Description

Products Description

Diameter 17mm 3v 4 volt 9 volt 12v 24v 180rpm 50rpm 60 rpm 1w 2w 1.5w 0.5nm 3kg cm dc gear motor with encoder

2D drawing

Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm

Model End cover dimensions Motor type Regular Shaft Weight
TJZ17RW φ17mm RF130 3mm-D cut 60g


Variable Speed 12v Dc Gear Motor Brush Planetary Gearbox With Encoder 180rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RF130 6 4200 20 3360 0.07 0.75 0.26 62.83 2.25 0.43
RF130 6 6500 31 5200 0.11 0.77 0.42 63.53 2.31 0.64
RF130 6 10000 100 8000 0.25 1.10 0.92 61.43 3.30 1.50
RF130 12 5500 12 4400 0.03 0.52 0.24 62.39 1.56 0.19
RF130 12 9000 40 7200 0.13 1.32 1.00 64.79 3.96 0.77
RF130 12 12000 51 9600 0.20 1.49 1.50 62.41 4.47 0.65
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-4200RPM Input 6V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 763.6 0.21 2.67 8.02 1181.8 0.34 2.74 8.23
16.5 73 9.1 369.2 0.19 4.98 14.95 571.4 0.31 5.12 15.35
16.5 65.5 19.1 175.9 0.17 9.38 28.15 272.3 0.27 9.63 28.90
16.5 59 40.0 84.0 0.16 17.70 53.10 130.0 0.25 18.17 54.52
18.5 53 83.5 40.2 0.14 33.19 99.57 62.3 0.22 34.08 102.23
20.5 47.8 175.0 19.2 0.13 62.74 188.21 29.7 0.20 64.41 193.23
22.5 43 365.0 9.2 0.11 117.71 353.14 14.2 0.18 120.85 362.55
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-10000RPM Input 12V-5500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1818.2 0.75 3.92 11.76 1000.0 0.19 1.85 5.56
16.5 73 9.1 879.1 0.67 7.31 21.92 483.5 0.17 3.45 10.36
16.5 65.5 19.1 418.8 0.60 13.76 41.28 230.4 0.16 6.51 19.52
16.5 59 40.0 200.0 0.54 25.96 77.88 110.0 0.14 12.27 36.82
18.5 53 83.5 95.8 0.49 48.68 146.04 52.7 0.13 23.01 69.04
20.5 47.8 175.0 45.7 0.44 92.02 276.05 25.1 0.11 43.50 130.49
22.5 43 365.0 21.9 0.40 172.65 517.94 12.1 0.10 81.61 244.84
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 12V-9000RPM Input 12V-12000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1636.4 0.81 4.70 14.11 2181.8 1.21 5.31 15.93
16.5 73 9.1 791.2 0.73 8.77 26.31 1054.9 1.09 9.90 29.69
16.5 65.5 19.1 377.0 0.65 16.51 49.54 502.6 0.98 18.64 55.92
16.5 59 40.0 180.0 0.59 31.15 93.46 240.0 0.88 35.16 105.49
18.5 53 83.5 86.2 0.53 58.42 175.25 115.0 0.79 65.94 197.82
20.5 47.8 175.0 41.1 0.48 110.42 331.25 54.9 0.72 124.64 373.92
22.5 43 365.0 19.7 0.43 207.17 621.52 26.3 0.64 233.86 701.57

Please let us know your requirements and we will provide you with transmission solutions.
