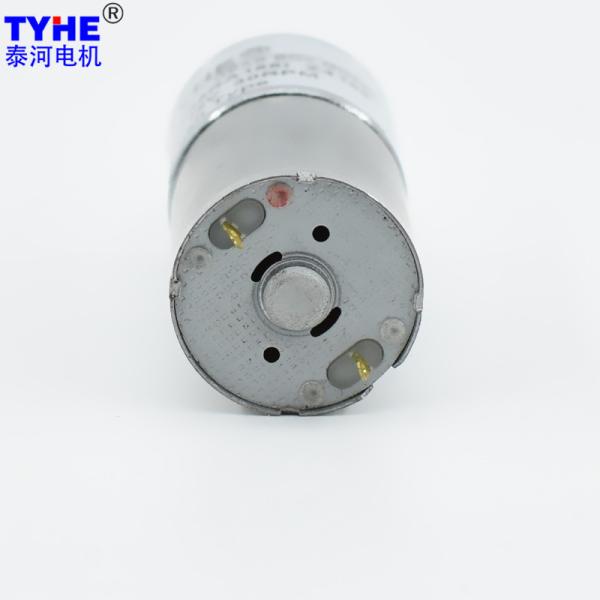

High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter
Specifications
Brand Name :
TYHE
Model Number :
TJZ25RA
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D25mm
Voltage :
3v ~ 24v or customized
Speed :
10-1500rpm or customized
Torque :
≤1.5N.M
Gear material :
Powder gears
Commutation :
Brush brushed
Type :
DC Mini Gear Motor
Usage :
Grill, Claw machine
Keywords :
High Precision 25mm 25ga370 diameter 3v 6v 12 volt 20v 5 rpm 10rpm 100rpm rf370 0.5w 5kgcm dc geared motor Ce & Rohs
Description

Products Description

High Precision 25mm 25ga370 diameter 3v 6v 12 volt 20v 5 rpm 10rpm 100rpm rf370 0.5w 5kgcm dc geared motor Ce & Rohs

2D drawing

High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter

Model End cover dimensions Motor type Regular Shaft Weight
TJZ25RA φ25mm RF370 4mm-D cut 100g


High Precision Mini 12V DC Gear Motor Powder Gearbox Rf370 25mm Diameter

Specifications

DC Motor Technical Data
Model

Rated Voltage

(V)

 No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
370 6 6500 70 5200 0.23 1.58 0.86 62.34 4.74 1.50
370 6 7500 80 6000 0.26 1.60 1.01 65.06 4.80 1.65
370 12 6500 30 5200 0.12 1.72 0.94 62.86 5.16 0.95
370 12 11000 70 8800 0.23 1.95 1.80 65.10 5.85 1.50
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 6V-6500RPM Input 6V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.70 6.14 18.43 1250.0 0.81 6.22 18.66
19 81 5.7 912.3 0.70 7.29 21.88 1052.6 0.81 7.39 22.16
19 73 10.6 490.6 0.63 12.23 36.68 566.0 0.73 12.38 37.14
19 73 12.5 416.0 0.63 14.42 43.25 480.0 0.73 14.60 43.80
19 73 14.7 353.7 0.63 16.95 50.86 408.2 0.73 17.17 51.51
19 65.6 23.0 226.1 0.56 23.84 71.52 260.9 0.66 24.14 72.42
19 65.6 27.5 189.1 0.56 28.50 85.51 218.2 0.66 28.86 86.59
19 65.6 32.0 162.5 0.56 33.17 99.50 187.5 0.66 33.59 100.76
19 65.6 38.0 136.8 0.56 39.39 118.16 157.9 0.66 39.88 119.65
22 59 51.5 101.0 0.51 48.01 144.02 116.5 0.59 48.62 145.85
22 59 60.5 86.0 0.51 56.40 169.19 99.2 0.59 57.11 171.34
22 59 71.0 73.2 0.51 66.19 198.56 84.5 0.59 67.02 201.07
22 59 83.0 62.7 0.51 77.37 232.12 72.3 0.59 78.35 235.06
22 59 98.0 53.1 0.51 91.36 274.07 61.2 0.59 92.51 277.54
24 53 113.0 46.0 0.46 94.63 283.88 53.1 0.53 95.82 287.47
24 53 133.0 39.1 0.46 111.37 334.12 45.1 0.53 112.78 338.35
24 53 156.0 33.3 0.46 130.63 391.90 38.5 0.53 132.29 396.86
24 53 184.0 28.3 0.46 154.08 462.24 32.6 0.53 156.03 468.10
24 53 215.0 24.2 0.46 180.04 540.12 27.9 0.53 182.32 546.96
24 53 253.0 20.6 0.46 211.86 635.59 23.7 0.53 214.54 643.63
27 47.8 249.0 20.9 0.41 188.05 564.16 24.1 0.48 190.44 571.31
27 47.8 293.0 17.7 0.41 221.29 663.86 20.5 0.48 224.09 672.26
27 47.8 344.0 15.1 0.41 259.80 779.41 17.4 0.48 263.09 789.27
27 47.8 404.0 12.9 0.41 305.12 915.35 14.9 0.48 308.98 926.94
27 47.8 474.0 11.0 0.41 357.98 1073.95 12.7 0.48 362.52 1087.55
27 47.8 557.0 9.3 0.41 420.67 1262.01 10.8 0.48 425.99 1277.98
27 47.8 654.0 8.0 0.41 493.93 1481.78 9.2 0.48 500.18 1500.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-6500RPM Input 12V-11000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.76 6.69 20.06 1833.3 1.46 7.58 22.74
19 81 5.7 912.3 0.76 7.94 23.82 1543.9 1.46 9.00 27.01
19 73 10.6 490.6 0.68 13.31 39.93 830.2 1.31 15.09 45.27
19 73 12.5 416.0 0.68 15.70 47.09 704.0 1.31 17.79 53.38
19 73 14.7 353.7 0.68 18.46 55.37 598.6 1.31 20.93 62.78
19 65.6 23.0 226.1 0.61 25.95 77.85 382.6 1.18 29.42 88.26
19 65.6 27.5 189.1 0.61 31.03 93.09 320.0 1.18 35.18 105.53
19 65.6 32.0 162.5 0.61 36.11 108.32 275.0 1.18 40.93 122.80
19 65.6 38.0 136.8 0.61 42.88 128.63 231.6 1.18 48.61 145.83
22 59 51.5 101.0 0.55 52.26 156.79 170.9 1.06 59.25 177.75
22 59 60.5 86.0 0.55 61.40 184.19 145.5 1.06 69.61 208.82
22 59 71.0 73.2 0.55 72.05 216.15 123.9 1.06 81.69 245.06
22 59 83.0 62.7 0.55 84.23 252.69 106.0 1.06 95.49 286.47
22 59 98.0 53.1 0.55 99.45 298.35 89.8 1.06 112.75 338.25
24 53 113.0 46.0 0.50 103.01 309.03 77.9 0.95 116.79 350.36
24 53 133.0 39.1 0.50 121.24 363.73 66.2 0.95 137.46 412.37
24 53 156.0 33.3 0.50 142.21 426.63 56.4 0.95 161.23 483.68
24 53 184.0 28.3 0.50 167.73 503.20 47.8 0.95 190.16 570.49
24 53 215.0 24.2 0.50 195.99 587.98 40.9 0.95 222.20 666.61
24 53 253.0 20.6 0.50 230.63 691.90 34.8 0.95 261.48 784.43
27 47.8 249.0 20.9 0.45 204.72 614.15 35.3 0.86 232.09 696.28
27 47.8 293.0 17.7 0.45 240.89 722.68 30.0 0.86 273.11 819.32
27 47.8 344.0 15.1 0.45 282.82 848.47 25.6 0.86 320.64 961.93
27 47.8 404.0 12.9 0.45 332.15 996.46 21.8 0.86 376.57 1129.71
27 47.8 474.0 11.0 0.45 389.70 1169.11 18.6 0.86 441.82 1325.45
27 47.8 557.0 9.3 0.45 457.94 1373.83 15.8 0.86 519.18 1500.00
27 47.8 654.0 8.0 0.45 537.69 1500.00 13.5 0.86 609.59 1500.00

Please let us know your requirements and we will provide you with transmission solutions.
