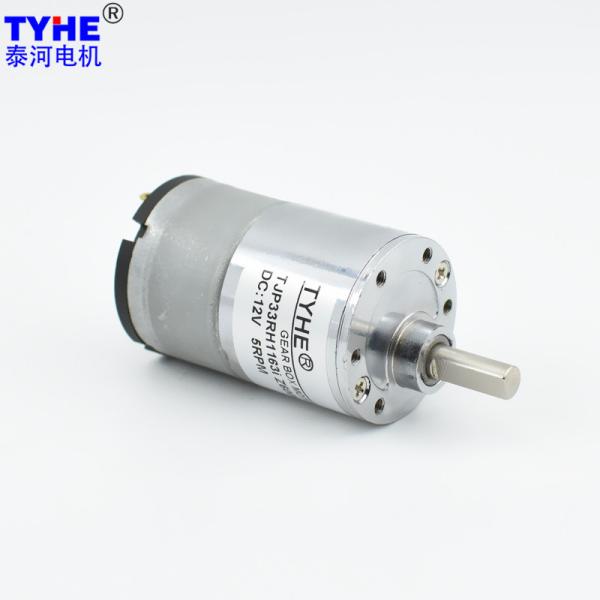

High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
Specifications
Brand Name :
TYHE
Model Number :
TJP33RH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D33mm
Voltage :
3-24volt
Speed :
Customized
Torque :
2N.m or Customized
Gear material :
Powder metallurgy gears
Commutation :
brushed
Type :
DC Gear Motor, Mini Motor
Keywords :
High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic
Description

Products Description

High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic

2D drawing

High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic


High Precision Zhejiang Manufacturer 33mm 12v 24v 10kgf Cm Torque 900rpm 1 Watt Dc Gear Motor For Robotic

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 7 4000 30 3200 0.14 1.79 0.60 62.70 5.37 1.10
ZY3324 12 5500 38 4400 0.13 2.13 0.98 64.82 6.39 0.83
ZY3324 12 7300 64 5840 0.27 3.24 1.98 61.30 9.72 2.08
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 7V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 727.3 1.12 14.66 43.97 415.6 0.49 11.16 33.49
21.3 81 9.0 622.2 1.12 17.13 51.39 355.6 0.49 13.05 39.15
21.3 73 18.4 304.3 1.01 31.57 94.70 173.9 0.44 24.04 72.13
21.3 73 21.6 259.3 1.01 37.05 111.16 148.1 0.44 28.22 84.67
21.3 73 25.4 220.5 1.01 43.57 130.72 126.0 0.44 33.19 99.57
21.3 65.6 44.2 126.7 0.90 68.14 204.42 72.4 0.39 51.90 155.70
21.3 65.6 51.9 107.9 0.90 80.01 240.03 61.7 0.39 60.94 182.83
21.3 65.6 61.0 91.8 0.90 94.04 282.11 52.5 0.39 71.63 214.89
21.3 65.6 71.6 78.2 0.90 110.38 331.14 44.7 0.39 84.08 252.23
22.5 59 106.0 52.8 0.81 146.97 440.91 30.2 0.35 111.95 335.84
22.5 59 125.0 44.8 0.81 173.31 519.94 25.6 0.35 132.01 396.04
22.5 59 146.0 38.4 0.81 202.43 607.29 21.9 0.35 154.19 462.57
22.5 59 172.0 32.6 0.81 238.48 715.43 18.6 0.35 181.65 544.95
22.5 59 202.0 27.7 0.81 280.07 840.22 15.8 0.35 213.33 640.00
24.7 53 255.0 22.0 0.73 317.60 952.81 12.5 0.32 241.92 725.76
24.7 53 299.0 18.7 0.73 372.40 1117.21 10.7 0.32 283.66 850.98
24.7 53 351.0 16.0 0.73 437.17 1311.51 9.1 0.32 332.99 998.98
24.7 53 413.0 13.6 0.73 514.39 1543.17 7.7 0.32 391.81 1175.44
24.7 53 484.0 11.6 0.73 602.82 1808.47 6.6 0.32 459.17 1377.51
24.7 53 569.0 9.8 0.73 708.69 2000.00 5.6 0.32 539.81 1619.43
27.2 48 612.0 9.2 0.66 690.34 2000.00 5.2 0.29 525.83 1577.49
27.2 48 718.0 7.8 0.66 809.90 2000.00 4.5 0.29 616.91 1850.72
27.2 48 843.0 6.6 0.66 950.90 2000.00 3.8 0.29 724.31 2000.00
27.2 48 990.0 5.7 0.66 1116.72 2000.00 3.2 0.29 850.61 2000.00
27.2 48 1163.0 4.8 0.66 1311.86 2000.00 2.8 0.29 999.25 2000.00
27.2 48 1365.0 4.1 0.66 1539.72 2000.00 2.3 0.29 1172.81 2000.00
27.2 48 1603.0 3.5 0.66 1808.18 2000.00 2.0 0.29 1377.30 2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 571.4 0.79 13.28 39.85 758.4 1.60 20.21 60.62
21.3 81 9.0 488.9 0.79 15.53 46.58 648.9 1.60 23.62 70.86
21.3 73 18.4 239.1 0.72 28.61 85.83 317.4 1.45 43.52 130.56
21.3 73 21.6 203.7 0.72 33.59 100.76 270.4 1.45 51.09 153.26
21.3 73 25.4 173.2 0.72 39.49 118.48 229.9 1.45 60.08 180.23
21.3 65.6 44.2 99.5 0.64 61.76 185.28 132.1 1.30 93.94 281.83
21.3 65.6 51.9 84.8 0.64 72.52 217.56 112.5 1.30 110.31 330.93
21.3 65.6 61.0 72.1 0.64 85.23 255.70 95.7 1.30 129.65 388.96
21.3 65.6 71.6 61.5 0.64 100.05 300.14 81.6 1.30 152.18 456.54
22.5 59 106.0 41.5 0.58 133.21 399.63 55.1 1.17 202.63 607.89
22.5 59 125.0 35.2 0.58 157.09 471.26 46.7 1.17 238.95 716.85
22.5 59 146.0 30.1 0.58 183.48 550.43 40.0 1.17 279.09 837.28
22.5 59 172.0 25.6 0.58 216.15 648.46 34.0 1.17 328.80 986.39
22.5 59 202.0 21.8 0.58 253.85 761.56 28.9 1.17 386.14 1158.43
24.7 53 255.0 17.3 0.52 287.87 863.61 22.9 1.05 437.89 1313.66
24.7 53 299.0 14.7 0.52 337.54 1012.62 19.5 1.05 513.44 1540.33
24.7 53 351.0 12.5 0.52 396.24 1188.73 16.6 1.05 602.74 1808.21
24.7 53 413.0 10.7 0.52 466.24 1398.71 14.1 1.05 709.20 2000.00
24.7 53 484.0 9.1 0.52 546.39 1639.16 12.1 1.05 831.12 2000.00
24.7 53 569.0 7.7 0.52 642.34 1927.03 10.3 1.05 977.09 2000.00
27.2 48 612.0 7.2 0.47 625.71 1877.13 9.5 0.95 951.78 2000.00
27.2 48 718.0 6.1 0.47 734.08 2000.00 8.1 0.95 1116.63 2000.00
27.2 48 843.0 5.2 0.47 861.88 2000.00 6.9 0.95 1311.03 2000.00
27.2 48 990.0 4.4 0.47 1012.18 2000.00 5.9 0.95 1539.65 2000.00
27.2 48 1163.0 3.8 0.47 1189.05 2000.00 5.0 0.95 1808.70 2000.00
27.2 48 1365.0 3.2 0.47 1395.58 2000.00 4.3 0.95 2000.00 2000.00
27.2 48 1603.0 2.7 0.47 1638.91 2000.00 3.6 0.95 2000.00 2000.00

Please let us know your requirements and we will provide you with transmission solutions.
