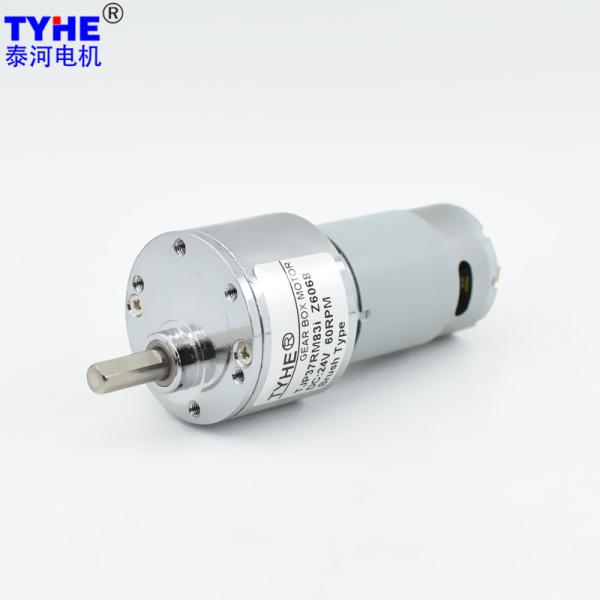

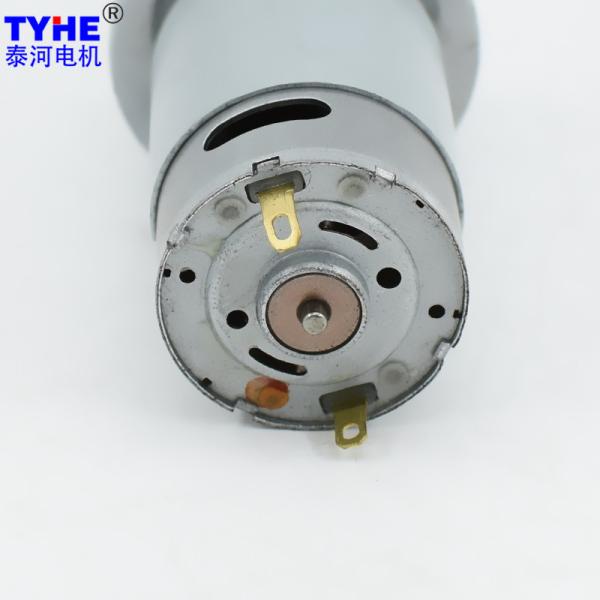

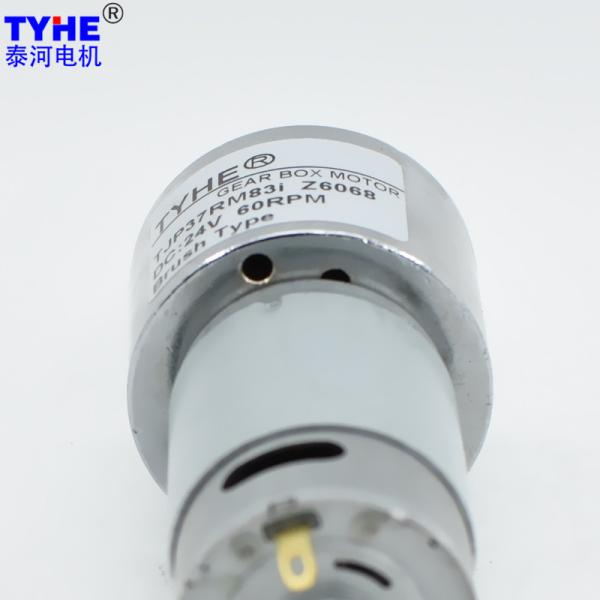

Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
Specifications
Brand Name :
TYHE
Model Number :
TJP37RM
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
6V 12V 24V or customized
Speed :
80rpm 100rpm 160rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Electraflow,Car
Keywords :
Factory price 37mm metal gearmotor 30rpm high rpm 30kg torque 7.2v 12v 24v brushed micro 6w 7w dc gear motor with CE ROHS
Description

Factory Price 37mm Metal Gearmotor 30rpm High Rpm 30kg Torque 12v 24v Brushed Micro 6w 7w Dc Gear Motor With CE ROHS

Products Description

Factory price 37mm metal gearmotor 30rpm high rpm 30kg torque 7.2v 12v 24v brushed micro 6w 7w dc gear motor with CE ROHS

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY2847 12 4500 100 3600 0.30 5.89 2.22 61.68 17.67 1.70
ZY2847 12 7500 160 6000 0.60 7.17 4.50 62.57 21.51 4.80
ZY2847 24 5000 50 4000 0.20 7.25 3.04 63.26 21.75 1.14
ZY2847 24 7500 75 6000 0.28 6.64 4.17 62.08 19.92 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 553.8 1.80 31.01 93.03 923.1 3.65 37.75 113.25
22.5 81 7.6 473.7 1.80 36.26 108.78 789.5 3.65 44.14 132.42
22.5 73 9.3 387.1 1.62 39.99 119.96 645.2 3.29 48.68 146.03
22.5 73 11.8 305.1 1.62 50.74 152.21 508.5 3.29 61.76 185.29
22.5 73 15.2 236.8 1.62 65.36 196.07 394.7 3.29 79.56 238.67
22.5 73 20.4 176.5 1.62 87.71 263.14 294.1 3.29 106.78 320.33
24.5 65.6 27.5 130.9 1.46 106.26 318.77 218.2 2.96 129.35 388.04
24.5 65.6 35.6 101.1 1.46 137.55 412.66 168.5 2.96 167.45 502.34
24.5 65.6 41.6 86.5 1.46 160.74 482.21 144.2 2.96 195.67 587.00
24.5 65.6 57.7 62.4 1.46 222.94 668.83 104.0 2.96 271.39 814.18
26.5 59 73.4 49.0 1.31 255.07 765.22 81.7 2.66 310.50 931.51
26.5 59 83 43.4 1.31 288.43 865.30 72.3 2.66 351.11 1053.34
26.5 59 97 37.1 1.31 337.08 1011.25 61.9 2.66 410.34 1231.02
26.5 59 111 32.4 1.31 385.74 1157.21 54.1 2.66 469.56 1408.69
26.5 59 119 30.3 1.31 413.54 1240.61 50.4 2.66 503.41 1510.22
26.5 59 130 27.7 1.31 451.76 1355.29 46.2 2.66 549.94 1649.82
29.5 53 194 18.6 1.18 605.61 1816.83 30.9 2.39 737.22 2211.66
29.5 53 226 15.9 1.18 705.50 2116.51 26.5 2.39 858.82 2500.00
29.5 53 259 13.9 1.18 808.52 2425.56 23.2 2.39 984.23 2500.00
29.5 53 277 13.0 1.18 864.71 2500.00 21.7 2.39 1052.63 2500.00
29.5 53 303 11.9 1.18 945.88 2500.00 19.8 2.39 1151.43 2500.00
29.5 53 316 11.4 1.18 986.46 2500.00 19.0 2.39 1200.83 2500.00
29.5 53 346 10.4 1.18 1080.11 2500.00 17.3 2.39 1314.83 2500.00
29.5 53 382 9.4 1.18 1192.49 2500.00 15.7 2.39 1451.64 2500.00
32.5 47.8 452 8.0 1.06 1272.57 2500.00 13.3 2.15 1549.12 2500.00
32.5 47.8 528 6.8 1.06 1486.54 2500.00 11.4 2.15 1809.59 2500.00
32.5 47.8 604 6.0 1.06 1700.51 2500.00 9.9 2.15 2070.07 2500.00
32.5 47.8 665 5.4 1.06 1872.25 2500.00 9.0 2.15 2279.13 2500.00
32.5 47.8 733 4.9 1.06 2063.70 2500.00 8.2 2.15 2500.00 2500.00
32.5 47.8 808 4.5 1.06 2274.86 2500.00 7.4 2.15 2500.00 2500.00
32.5 47.8 890 4.0 1.06 2500.00 2500.00 6.7 2.15 2500.00 2500.00
32.5 43 1232 2.9 0.95 2500.00 2500.00 4.9 1.94 2500.00 2500.00
32.5 43 1408 2.6 0.95 2500.00 2500.00 4.3 1.94 2500.00 2500.00
32.5 43 1552 2.3 0.95 2500.00 2500.00 3.9 1.94 2500.00 2500.00
32.5 43 1711 2.1 0.95 2500.00 2500.00 3.5 1.94 2500.00 2500.00
32.5 43 2077 1.7 0.95 2500.00 2500.00 2.9 1.94 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 2.46 38.17 114.51 923.1 3.38 34.96 104.88
22.5 81 7.6 526.3 2.46 44.63 133.89 789.5 3.38 40.88 122.63
22.5 73 9.3 430.1 2.22 49.22 147.66 645.2 3.05 45.08 135.24
22.5 73 11.8 339.0 2.22 62.45 187.35 508.5 3.05 57.20 171.59
22.5 73 15.2 263.2 2.22 80.45 241.34 394.7 3.05 73.68 221.03
22.5 73 20.4 196.1 2.22 107.97 323.90 294.1 3.05 98.88 296.65
24.5 65.6 27.5 145.5 1.99 130.79 392.37 218.2 2.74 119.79 359.36
24.5 65.6 35.6 112.4 1.99 169.31 507.94 168.5 2.74 155.07 465.20
24.5 65.6 41.6 96.2 1.99 197.85 593.55 144.2 2.74 181.20 543.61
24.5 65.6 57.7 69.3 1.99 274.42 823.26 104.0 2.74 251.33 754.00
26.5 59 73.4 54.5 1.79 313.97 941.91 81.7 2.46 287.55 862.66
26.5 59 83 48.2 1.79 355.03 1065.10 72.3 2.46 325.16 975.48
26.5 59 97 41.2 1.79 414.92 1244.75 61.9 2.46 380.01 1140.02
26.5 59 111 36.0 1.79 474.80 1424.41 54.1 2.46 434.85 1304.56
26.5 59 119 33.6 1.79 509.02 1527.07 50.4 2.46 466.19 1398.58
26.5 59 130 30.8 1.79 556.08 1668.23 46.2 2.46 509.29 1527.86
29.5 53 194 20.6 1.61 745.45 2236.34 30.9 2.21 682.72 2048.17
29.5 53 226 17.7 1.61 868.41 2500.00 26.5 2.21 795.34 2386.02
29.5 53 259 15.4 1.61 995.21 2500.00 23.2 2.21 911.47 2500.00
29.5 53 277 14.4 1.61 1064.37 2500.00 21.7 2.21 974.82 2500.00
29.5 53 303 13.2 1.61 1164.28 2500.00 19.8 2.21 1066.32 2500.00
29.5 53 316 12.7 1.61 1214.23 2500.00 19.0 2.21 1112.07 2500.00
29.5 53 346 11.6 1.61 1329.51 2500.00 17.3 2.21 1217.64 2500.00
29.5 53 382 10.5 1.61 1467.84 2500.00 15.7 2.21 1344.33 2500.00
32.5 47.8 452 8.8 1.45 1566.41 2500.00 13.3 1.99 1434.61 2500.00
32.5 47.8 528 7.6 1.45 1829.78 2500.00 11.4 1.99 1675.83 2500.00
32.5 47.8 604 6.6 1.45 2093.16 2500.00 9.9 1.99 1917.05 2500.00
32.5 47.8 665 6.0 1.45 2304.56 2500.00 9.0 1.99 2110.66 2500.00
32.5 47.8 733 5.5 1.45 2500.00 2500.00 8.2 1.99 2326.48 2500.00
32.5 47.8 808 5.0 1.45 2500.00 2500.00 7.4 1.99 2500.00 2500.00
32.5 47.8 890 4.5 1.45 2500.00 2500.00 6.7 1.99 2500.00 2500.00
32.5 43 1232 3.2 1.31 2500.00 2500.00 4.9 1.79 2500.00 2500.00
32.5 43 1408 2.8 1.31 2500.00 2500.00 4.3 1.79 2500.00 2500.00
32.5 43 1552 2.6 1.31 2500.00 2500.00 3.9 1.79 2500.00 2500.00
32.5 43 1711 2.3 1.31 2500.00 2500.00 3.5 1.79 2500.00 2500.00
32.5 43 2077 1.9 1.31 2500.00 2500.00 2.9 1.79 2500.00 2500.00

2D drawing

Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed


Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed

Please let us know your requirements and we will provide you with transmission solutions.

Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed

Metal 37mm 30rpm Micro Dc Gear Motor For Electraflow High Rpm 12v 24v Brushed
