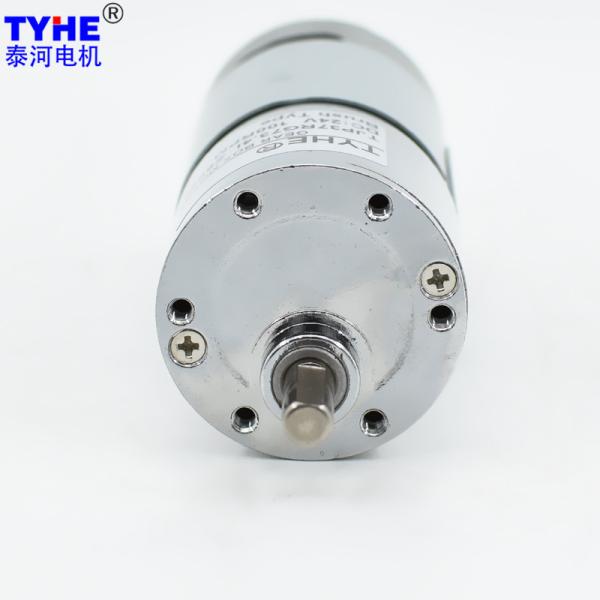

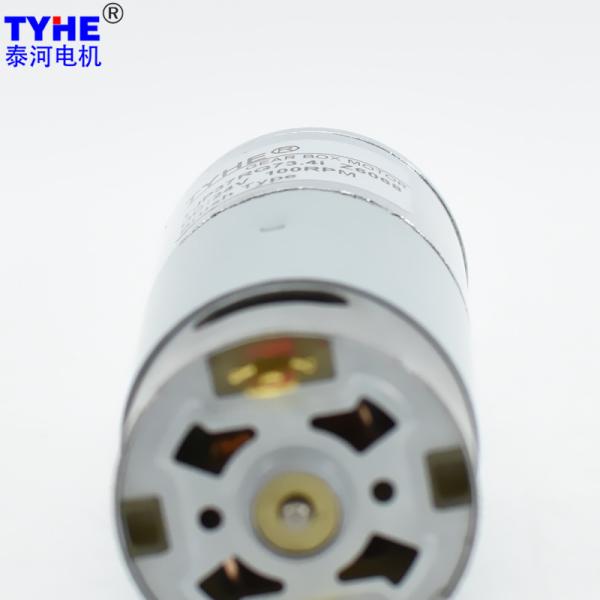

37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP37RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3-24volt
Speed :
Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, DC Small Motor
Usage :
Pitching Machine
Keywords :
37mm gearbox high torque low rpm RS555 24v 12v 10rpm 20rpm 30rpm 50rpm 100rpm 200rpm 300rpm 15 watt 20w 2nm 1nm dc geared motor
Description

37mm Gearbox High Torque Low Rpm RS555 24v 12v 10rpm 30rpm 50rpm 100rpm 200rpm 300rpm 15 Watt 20w 2nm Nm Dc Geared Motor

Products Description

37mm gearbox high torque low rpm RS555 24v 12v 10rpm 20rpm 30rpm 50rpm 100rpm 200rpm 300rpm 15 watt 20w 2nm 1nm dc geared motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.70 88.45 265.36 800.0 8.60 102.67 308.00
22.5 73 9.3 430.1 5.14 114.06 342.17 559.1 7.75 132.39 397.16
22.5 73 11.8 339.0 5.14 144.72 434.15 440.7 7.75 167.97 503.92
22.5 73 14.2 281.7 5.14 174.15 522.45 366.2 7.75 202.14 606.41
22.5 73 17.4 229.9 5.14 213.39 640.18 298.9 7.75 247.69 743.07
24.5 65.6 21.8 183.5 4.62 240.25 720.76 238.5 6.97 278.87 836.60
24.5 65.6 27.5 145.5 4.62 303.07 909.22 189.1 6.97 351.78 1055.34
24.5 65.6 36.6 109.3 4.62 403.36 1210.08 142.1 6.97 468.19 1404.56
24.5 65.6 40.4 99.0 4.62 445.24 1335.72 128.7 6.97 516.80 1550.39
26.5 59 58.1 68.8 4.15 575.89 1727.66 89.5 6.26 668.44 2005.32
26.5 59 73.4 54.5 4.15 727.54 2182.62 70.8 6.26 844.47 2500.00
26.5 59 83 48.2 4.15 822.70 2468.09 62.7 6.26 954.92 2500.00
26.5 59 89 44.9 4.15 882.17 2500.00 58.4 6.26 1023.95 2500.00
26.5 59 95 42.1 4.15 941.64 2500.00 54.7 6.26 1092.98 2500.00
26.5 59 103 38.8 4.15 1020.94 2500.00 50.5 6.26 1185.02 2500.00
29.5 53 119 33.6 3.73 1059.58 2500.00 43.7 5.63 1229.87 2500.00
29.5 53 136 29.4 3.73 1210.94 2500.00 38.2 5.63 1405.56 2500.00
29.5 53 171 23.4 3.73 1522.58 2500.00 30.4 5.63 1767.29 2500.00
29.5 53 194 20.6 3.73 1727.38 2500.00 26.8 5.63 2004.99 2500.00
29.5 53 207 19.3 3.73 1843.13 2500.00 25.1 5.63 2139.35 2500.00
29.5 53 221 18.1 3.73 1967.78 2500.00 23.5 5.63 2284.04 2500.00
29.5 53 242 16.5 3.73 2154.77 2500.00 21.5 5.63 2500.00 2500.00
29.5 53 277 14.4 3.73 2466.41 2500.00 18.8 5.63 2500.00 2500.00
29.5 53 305 13.1 3.73 2500.00 2500.00 17.0 5.63 2500.00 2500.00
32.5 47.8 350 11.4 3.36 2500.00 2500.00 14.9 5.08 2500.00 2500.00
32.5 47.8 422 9.5 3.36 2500.00 2500.00 12.3 5.08 2500.00 2500.00
32.5 47.8 465 8.6 3.36 2500.00 2500.00 11.2 5.08 2500.00 2500.00
32.5 47.8 513 7.8 3.36 2500.00 2500.00 10.1 5.08 2500.00 2500.00
32.5 47.8 532 7.5 3.36 2500.00 2500.00 9.8 5.08 2500.00 2500.00
32.5 47.8 586 6.8 3.36 2500.00 2500.00 8.9 5.08 2500.00 2500.00
32.5 47.8 712 5.6 3.36 2500.00 2500.00 7.3 5.08 2500.00 2500.00
32.5 47.8 784 5.1 3.36 2500.00 2500.00 6.6 5.08 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7600RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.94 92.14 276.41 935.4 11.96 122.15 366.44
22.5 73 9.3 430.1 5.35 118.81 356.42 653.8 10.78 157.50 472.51
22.5 73 11.8 339.0 5.35 150.75 452.24 515.3 10.78 199.84 599.53
22.5 73 14.2 281.7 5.35 181.41 544.22 428.2 10.78 240.49 721.47
22.5 73 17.4 229.9 5.35 222.29 666.86 349.4 10.78 294.69 884.06
24.5 65.6 21.8 183.5 4.81 250.26 750.79 278.9 9.69 331.78 995.34
24.5 65.6 27.5 145.5 4.81 315.70 947.10 221.1 9.69 418.53 1255.58
24.5 65.6 36.6 109.3 4.81 420.17 1260.50 166.1 9.69 557.02 1671.07
24.5 65.6 40.4 99.0 4.81 463.79 1391.38 150.5 9.69 614.86 1844.57
26.5 59 58.1 68.8 4.32 599.88 1799.65 104.6 8.71 795.27 2385.82
26.5 59 73.4 54.5 4.32 757.86 2273.57 82.8 8.71 1004.70 2500.00
26.5 59 83 48.2 4.32 856.98 2570.93 73.3 8.71 1136.10 2500.00
26.5 59 89 44.9 4.32 918.93 2756.78 68.3 8.71 1218.23 2500.00
26.5 59 95 42.1 4.32 980.88 2942.63 64.0 8.71 1300.36 2500.00
26.5 59 103 38.8 4.32 1063.48 3190.43 59.0 8.71 1409.86 2500.00
29.5 53 119 33.6 3.88 1103.73 2500.00 51.1 7.83 1463.22 2500.00
29.5 53 136 29.4 3.88 1261.40 2500.00 44.7 7.83 1672.26 2500.00
29.5 53 171 23.4 3.88 1586.03 2500.00 35.6 7.83 2102.62 2500.00
29.5 53 194 20.6 3.88 1799.35 2500.00 31.3 7.83 2385.42 2500.00
29.5 53 207 19.3 3.88 1919.93 2500.00 29.4 7.83 2500.00 2500.00
29.5 53 221 18.1 3.88 2049.78 2500.00 27.5 7.83 2500.00 2500.00
29.5 53 242 16.5 3.88 2244.55 2500.00 25.1 7.83 2500.00 2500.00
29.5 53 277 14.4 3.88 2500.00 2500.00 21.9 7.83 2500.00 2500.00
29.5 53 305 13.1 3.88 2500.00 2500.00 19.9 7.83 2500.00 2500.00
32.5 47.8 350 11.4 3.50 2500.00 2500.00 17.4 7.06 2500.00 2500.00
32.5 47.8 422 9.5 3.50 2500.00 2500.00 14.4 7.06 2500.00 2500.00
32.5 47.8 465 8.6 3.50 2500.00 2500.00 13.1 7.06 2500.00 2500.00
32.5 47.8 513 7.8 3.50 2500.00 2500.00 11.9 7.06 2500.00 2500.00
32.5 47.8 532 7.5 3.50 2500.00 2500.00 11.4 7.06 2500.00 2500.00
32.5 47.8 586 6.8 3.50 2500.00 2500.00 10.4 7.06 2500.00 2500.00
32.5 47.8 712 5.6 3.50 2500.00 2500.00 8.5 7.06 2500.00 2500.00
32.5 47.8 784 5.1 3.50 2500.00 2500.00 7.8 7.06 2500.00 2500.00

2D drawing

37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm


37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm

Please let us know your requirements and we will provide you with transmission solutions.

37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm

37mm Gearbox RS555 12v 24V Dc Geared Motor High Torque Low Rpm 10rpm
