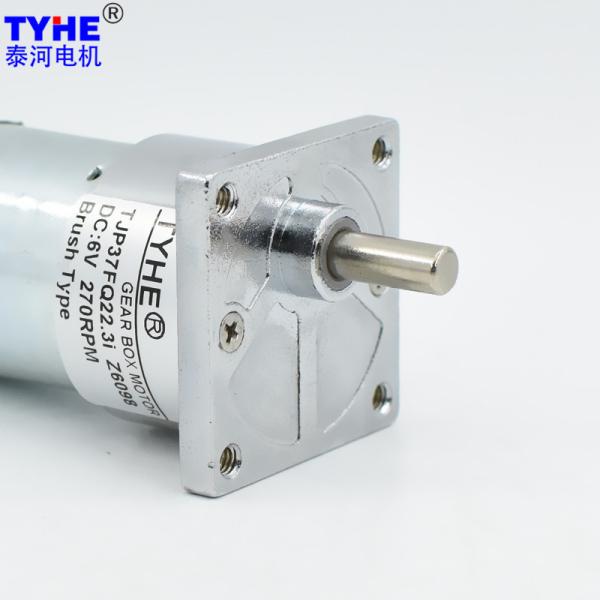

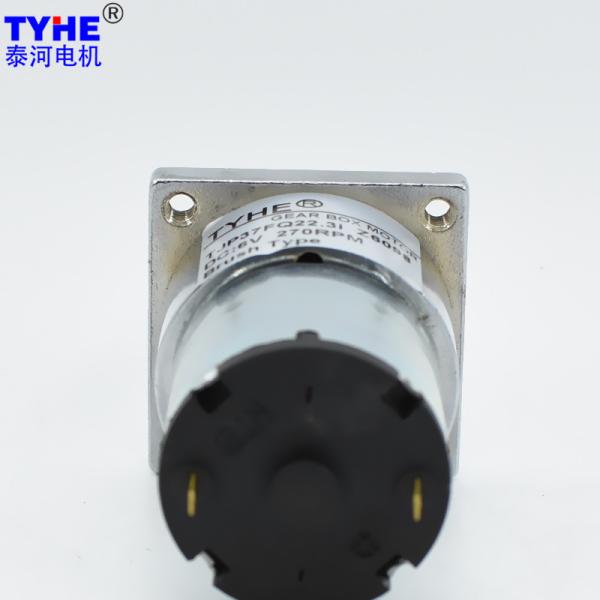

6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
Specifications
Brand Name :
TYHE
Model Number :
TJP37FQ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V
Speed :
Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, mini Motor
Usage :
Grill machine
Keywords :
China Factory Direct Sales Small 37mm 6v 12v 12 v 24volt 15rpm 5w 3w 5kgcm low rpm miniature Dc Gear Motor for led light
Description

Products Description

China Factory Direct Sales Small 37mm 6v 12v 12 v 24volt 15rpm 5w 3w 5kgcm low rpm miniature Dc Gear Motor for led light

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3330 6 6000 100 4800 0.30 2.23 1.12 62.27 6.69 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 0.91 14.81 44.43
25.5 81 9.5 505.3 0.91 17.16 51.48
25.5 73 14.7 326.5 0.82 23.93 71.79
25.5 73 22.3 215.2 0.82 36.30 108.91
25.5 73 24.5 195.9 0.82 39.88 119.65
27.5 65.6 27.2 176.5 0.74 39.79 119.37
27.5 65.6 34.4 139.5 0.74 50.32 150.97
27.5 65.6 44.5 107.9 0.74 65.10 195.29
27.5 65.6 52.0 92.3 0.74 76.07 228.21
27.5 65.6 57.0 84.2 0.74 83.38 250.15
27.5 65.6 63.0 76.2 0.74 92.16 276.48
29.5 59 80.3 59.8 0.66 105.65 316.95
29.5 59 104.0 46.2 0.66 136.83 410.50
29.5 59 121.0 39.7 0.66 159.20 477.60
29.5 59 134.0 35.8 0.66 176.30 528.91
29.5 59 147.0 32.7 0.66 193.41 580.22
29.5 59 162.0 29.6 0.66 213.14 639.43
32.5 53 187.0 25.7 0.59 221.02 663.05
32.5 53 242.0 19.8 0.59 286.02 858.06
32.5 53 283.0 17.0 0.59 334.48 1003.43
32.5 53 312.0 15.4 0.59 368.75 1106.26
32.5 53 344.0 14.0 0.59 406.57 1219.72
32.5 53 379.0 12.7 0.59 447.94 1343.82
32.5 53 417.0 11.5 0.59 492.85 1478.56
35.5 47.8 437.0 11.0 0.54 465.82 1397.45
35.5 47.8 565.0 8.5 0.54 602.26 1806.77
35.5 47.8 660.0 7.3 0.54 703.52 2110.56
35.5 47.8 728.0 6.6 0.54 776.00 2328.01
35.5 47.8 802.0 6.0 0.54 854.88 2500.00
35.5 47.8 884.0 5.4 0.54 942.29 2500.00
35.5 47.8 974.0 4.9 0.54 1038.23 2500.00
35.5 47.8 1073.0 4.5 0.54 1143.75 2500.00
32.5 43 1540.0 3.1 0.48 1476.71 2500.00
32.5 43 1698.0 2.8 0.48 1628.21 2500.00
32.5 43 1871.0 2.6 0.48 1794.10 2500.00
32.5 43 2062.0 2.3 0.48 1977.25 2500.00
32.5 43 2272.0 2.1 0.48 2178.62 2500.00

2D drawing

6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light


6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light

Please let us know your requirements and we will provide you with transmission solutions.

6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light

6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
