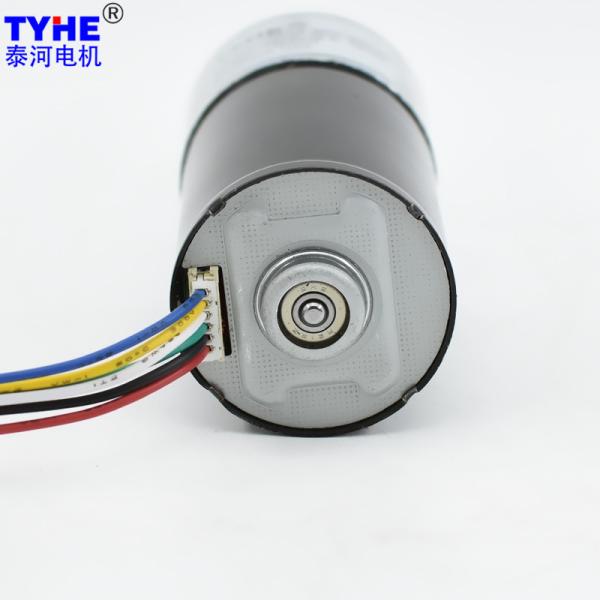

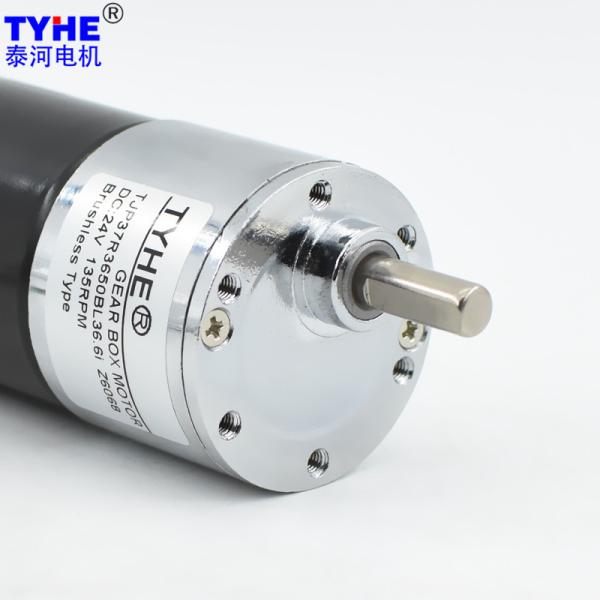

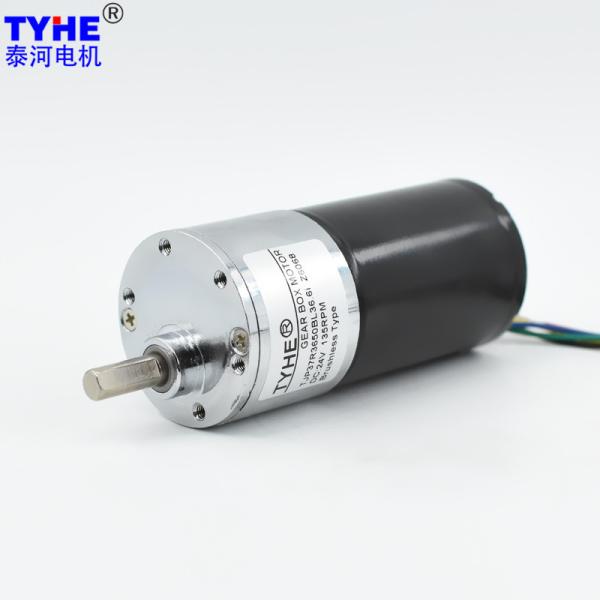

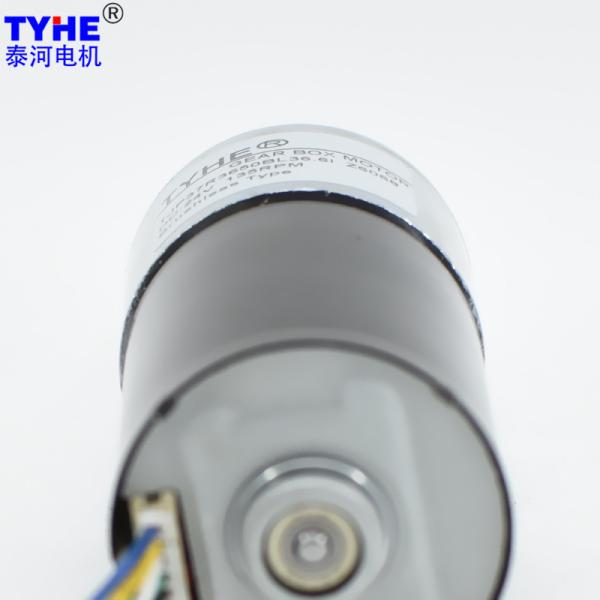

10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
Specifications
Brand Name :
TYHE
Model Number :
TJP37R3650BL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
120pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ37mm
Voltage :
12-24volt
Speed :
Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brushless, BLDC
Type :
Gear Motor, Micro Motor
Usage :
Barbecue Machine
Keywords :
Custom D37mm 12v 24 v 9 volt low rpm 500rpm 10000rpm 12w 15 watt 18w 10kg 5kg load brushless dc gear motor for paper dispenser
Description

Custom D37mm 12v 24 V 9 Volt Low Rpm 500rpm 10000rpm 12w Watt 10kg 5kg Load Brushless Dc Gear Motor For Paper Dispenser

Products Description

Custom D37mm 12v 24 v 9 volt low rpm 500rpm 10000rpm 12w 18 10kg 5kg load brushless dc gear motor for paper dispenser

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
3650BL 12 5000 350 4000 1.07 19.20 8.04 62.83 57.60 6.50
3650BL 24 5000 160 4000 0.53 19.80 8.29 64.99 59.40 3.50
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 6.51 101.09 303.26 615.4 6.72 104.25 312.74
22.5 73 9.3 430.1 5.87 130.35 391.05 430.1 6.05 134.42 403.27
22.5 73 11.8 339.0 5.87 165.39 496.17 339.0 6.05 170.56 511.67
22.5 73 14.2 281.7 5.87 199.03 597.08 281.7 6.05 205.25 615.74
22.5 73 17.4 229.9 5.87 243.88 731.64 229.9 6.05 251.50 754.50
24.5 65.6 21.8 183.5 5.28 274.58 823.73 183.5 5.44 283.16 849.47
24.5 65.6 27.5 145.5 5.28 346.37 1039.10 145.5 5.44 357.19 1071.58
24.5 65.6 36.6 109.3 5.28 460.98 1382.95 109.3 5.44 475.39 1426.17
24.5 65.6 40.4 99.0 5.28 508.85 1526.54 99.0 5.44 524.75 1574.24
26.5 59 58.1 68.8 4.74 658.16 1974.47 68.8 4.89 678.72 2036.17
26.5 59 73.4 54.5 4.74 831.48 2494.43 54.5 4.89 857.46 2500.00
26.5 59 83 48.2 4.74 940.22 2500.00 48.2 4.89 969.61 2500.00
26.5 59 89 44.9 4.74 1008.19 2500.00 44.9 4.89 1039.70 2500.00
26.5 59 95 42.1 4.74 1076.16 2500.00 42.1 4.89 1109.79 2500.00
26.5 59 103 38.8 4.74 1166.78 2500.00 38.8 4.89 1203.25 2500.00
29.5 53 119 33.6 4.26 1210.94 2500.00 33.6 4.40 1248.79 2500.00
29.5 53 136 29.4 4.26 1383.94 2500.00 29.4 4.40 1427.18 2500.00
29.5 53 171 23.4 4.26 1740.10 2500.00 23.4 4.40 1794.47 2500.00
29.5 53 194 20.6 4.26 1974.14 2500.00 20.6 4.40 2035.84 2500.00
29.5 53 207 19.3 4.26 2106.43 2500.00 19.3 4.40 2172.26 2500.00
29.5 53 221 18.1 4.26 2248.90 2500.00 18.1 4.40 2319.17 2500.00
29.5 53 242 16.5 4.26 2462.59 2500.00 16.5 4.40 2500.00 2500.00
29.5 53 277 14.4 4.26 2500.00 2500.00 14.4 4.40 2500.00 2500.00
29.5 53 305 13.1 4.26 2500.00 2500.00 13.1 4.40 2500.00 2500.00
32.5 47.8 350 11.4 3.84 2500.00 2500.00 11.4 3.96 2500.00 2500.00
32.5 47.8 422 9.5 3.84 2500.00 2500.00 9.5 3.96 2500.00 2500.00
32.5 47.8 465 8.6 3.84 2500.00 2500.00 8.6 3.96 2500.00 2500.00
32.5 47.8 513 7.8 3.84 2500.00 2500.00 7.8 3.96 2500.00 2500.00
32.5 47.8 532 7.5 3.84 2500.00 2500.00 7.5 3.96 2500.00 2500.00
32.5 47.8 586 6.8 3.84 2500.00 2500.00 6.8 3.96 2500.00 2500.00
32.5 47.8 712 5.6 3.84 2500.00 2500.00 5.6 3.96 2500.00 2500.00
32.5 47.8 784 5.1 3.84 2500.00 2500.00 5.1 3.96 2500.00 2500.00

2D drawing

10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V


10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V

Please let us know your requirements and we will provide you with transmission solutions.

10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V

10000rpm 12w 5kg Load Brushless Dc Gear Motor For Paper Dispenser 12v 24V
