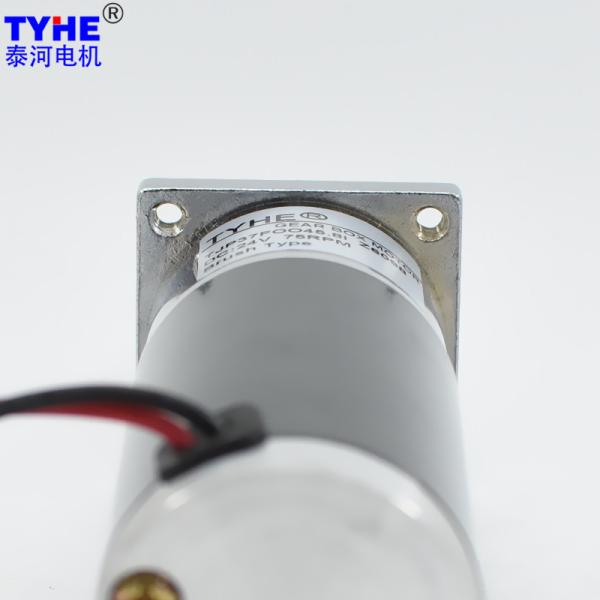

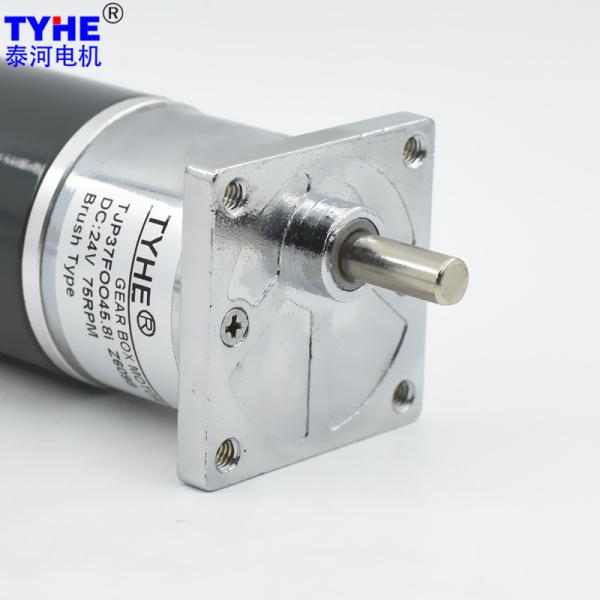

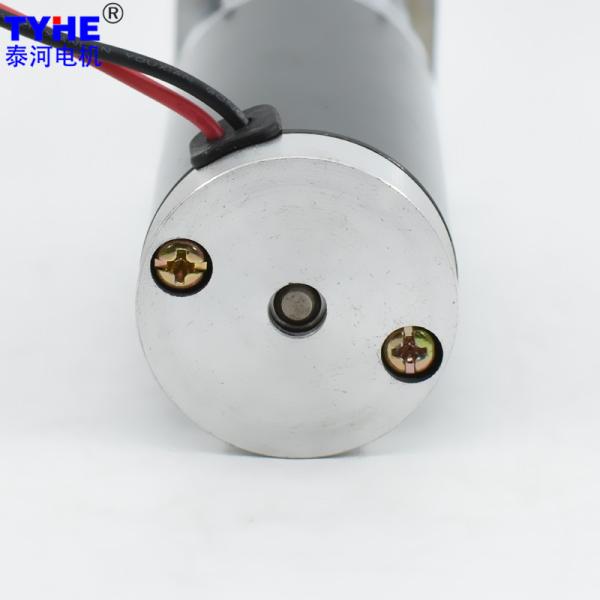

High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill
Specifications
Brand Name :
TYHE
Model Number :
TJP37FOO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3V-24V
Speed :
100rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush /brushes /brushed
Type :
Gear Motor, Micro Motor
Usage :
lifting socket /car
Keywords :
Manufacturer High Precision 6v 12 volt 24 volt high rpm 25w 20kgcm 30 rpm dc geared motor for the grill
Description

Products Description

Manufacturer High Precision 6v 12 volt 24 volt high rpm 25w 20kgcm 30 rpm dc geared motor for the grill

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3879 12 4500 350 3600 1.23 24.50 9.24 62.83 73.50 7.00
ZY3879 12 5000 400 4000 1.35 24.50 10.26 63.34 73.50 7.50
ZY3879 12 8000 900 6400 2.65 29.70 19.90 62.59 89.10 13.00
ZY3879 24 3500 100 2800 0.48 24.90 7.30 63.37 74.70 3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 439.0 7.48 162.73 488.19 487.8 8.31 162.73 488.19
25.5 73 11.7 307.7 6.74 209.25 627.76 341.9 7.49 209.25 627.76
25.5 73 14.7 244.9 6.74 262.91 788.73 272.1 7.49 262.91 788.73
25.5 73 19.1 188.5 6.74 341.60 1024.81 209.4 7.49 341.60 1024.81
27.5 65.6 27.2 132.4 6.06 437.16 1311.48 147.1 6.73 437.16 1311.48
27.5 65.6 34.4 104.7 6.06 552.88 1658.63 116.3 6.73 552.88 1658.63
27.5 65.6 44.5 80.9 6.06 715.20 2145.61 89.9 6.73 715.20 2145.61
29.5 59 63.5 56.7 5.45 917.89 2500.00 63.0 6.05 917.89 2500.00
29.5 59 80.3 44.8 5.45 1160.74 2500.00 49.8 6.05 1160.74 2500.00
29.5 59 104.0 34.6 5.45 1503.32 2500.00 38.5 6.05 1503.32 2500.00
32.5 53 148.0 24.3 4.89 1921.78 2500.00 27.0 5.44 1921.78 2500.00
32.5 53 187.0 19.3 4.89 2428.20 2500.00 21.4 5.44 2428.20 2500.00
32.5 53 242.0 14.9 4.89 2500.00 2500.00 16.5 5.44 2500.00 2500.00
35.5 47.8 346.0 10.4 4.41 2500.00 2500.00 11.6 4.91 2500.00 2500.00
35.5 47.8 437.0 8.2 4.41 2500.00 2500.00 9.2 4.91 2500.00 2500.00
35.5 47.8 565.0 6.4 4.41 2500.00 2500.00 7.1 4.91 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-8000RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 780.5 16.12 197.27 591.80 341.5 5.91 165.39 496.16
25.5 73 11.7 547.0 14.53 253.67 761.00 239.3 5.33 212.67 638.01
25.5 73 14.7 435.4 14.53 318.71 956.13 190.5 5.33 267.20 801.61
25.5 73 19.1 335.1 14.53 414.11 1242.32 146.6 5.33 347.18 1041.54
27.5 65.6 27.2 235.3 13.06 529.94 1589.83 102.9 4.79 444.30 1332.89
27.5 65.6 34.4 186.0 13.06 670.22 2010.67 81.4 4.79 561.90 1685.71
27.5 65.6 44.5 143.8 13.06 867.00 2500.00 62.9 4.79 726.88 2180.64
29.5 59 63.5 100.8 11.74 1112.71 2500.00 44.1 4.31 932.88 2500.00
29.5 59 80.3 79.7 11.74 1407.10 2500.00 34.9 4.31 1179.69 2500.00
29.5 59 104.0 61.5 11.74 1822.39 2500.00 26.9 4.31 1527.86 2500.00
32.5 53 148.0 43.2 10.55 2329.67 2500.00 18.9 3.87 1953.16 2500.00
32.5 53 187.0 34.2 10.55 2500.00 2500.00 15.0 3.87 2467.84 2500.00
32.5 53 242.0 26.4 10.55 2500.00 2500.00 11.6 3.87 2500.00 2500.00
35.5 47.8 346.0 18.5 9.51 2500.00 2500.00 8.1 3.49 2500.00 2500.00
35.5 47.8 437.0 14.6 9.51 2500.00 2500.00 6.4 3.49 2500.00 2500.00
35.5 47.8 565.0 11.3 9.51 2500.00 2500.00 5.0 3.49 2500.00 2500.00

2D drawing

High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill


High Precision 6v 12V 24V DC Gear Motor High Rpm 25w 20kgcm 30 Rpm For The Grill

Please let us know your requirements and we will provide you with transmission solutions.
