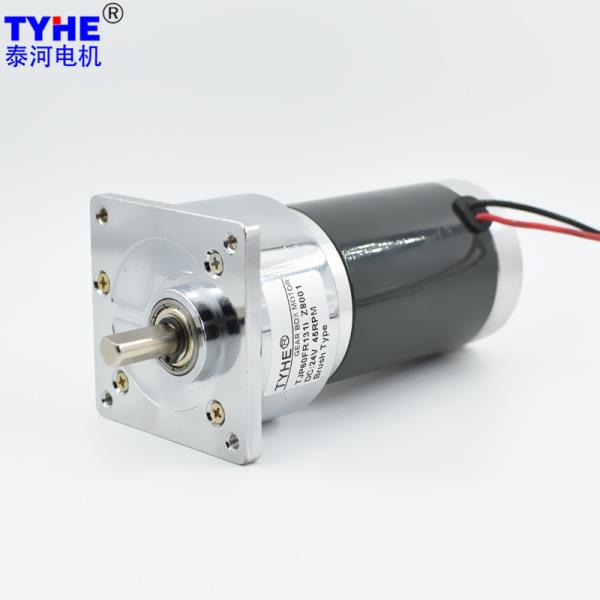

Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
Specifications
Brand Name :
TYHE
Model Number :
TJP60FR
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60*60mm square cover
Voltage :
12v-24V
Speed :
55rpm or Customized
Torque :
10.45N.m
Gear material :
Steel gears
Commutation :
brushed
Type :
DC Gear Motor, DC Mini Motor
Keywords :
Low noise 60MM 6v 12 volt 24v 50w 60w 40 watt 150rpm 200 rpm 100kg 50kg 8nm PMDC dc gear reduction motor with encoder and brake
Description

Products Description

Low noise 60MM 6v 12 volt 24v 50w 60w 40 watt 150rpm 200 rpm 100kg 50kg 8nm PMDC dc gear reduction motor with encoder and brake

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 4000 560 3200 2.17 49.32 16.53 63.37 147.96 16.00
ZY5078 12 5500 850 4400 3.30 55.23 25.45 64.26 165.69 24.30
ZY5078 12 6000 1030 4800 4.00 60.19 30.25 63.11 180.57 29.40
ZY5078 12 6500 1300 5200 4.98 69.52 37.85 63.30 208.56 36.40
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-4000RPM Input 12V-5500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 492.3 13.39 259.67 779.01 676.9 20.61 290.79 872.36
28.5 81 7.6 421.1 13.39 303.61 910.84 578.9 20.61 340.00 1019.99
28.5 81 8.3 385.5 13.39 331.58 994.74 530.1 20.61 371.31 1113.93
28.5 81 9.9 323.2 13.39 395.50 1186.49 444.4 20.61 442.89 1328.67
28.5 81 10.8 296.3 13.39 431.45 1294.35 407.4 20.61 483.15 1449.46
28.5 81 12.8 250.0 13.39 511.35 1534.05 343.8 20.61 572.62 1717.87
28.5 81 14.1 227.0 13.39 563.28 1689.85 312.1 20.61 630.78 1892.35
33.5 73 20.7 154.6 12.06 745.27 2235.82 212.6 18.58 834.58 2503.74
33.5 73 24.3 131.7 12.06 874.89 2624.66 181.1 18.58 979.72 2939.17
33.5 73 26.4 121.2 12.06 950.50 2851.49 166.7 18.58 1064.39 3193.18
33.5 73 27 118.5 12.06 972.10 2916.29 163.0 18.58 1088.58 3265.75
33.5 73 31.5 101.6 12.06 1134.11 3402.34 139.7 18.58 1270.01 3810.04
33.5 73 34.3 93.3 12.06 1234.92 3704.77 128.3 18.58 1382.90 4148.71
33.5 73 34.7 92.2 12.06 1249.32 3747.97 126.8 18.58 1399.03 4197.09
33.5 73 41 78.0 12.06 1476.15 4428.44 107.3 18.58 1653.03 4959.10
33.5 73 45 71.1 12.06 1620.16 4860.49 97.8 18.58 1814.31 5442.92
36 65.6 66.3 48.3 10.84 2145.06 6435.19 66.4 16.69 2402.11 7206.32
36 65.6 77.7 41.2 10.84 2513.90 7541.70 56.6 16.69 2815.14 8445.42
36 65.6 86 37.2 10.84 2782.44 8347.31 51.2 16.69 3115.86 9347.57
36 65.6 101 31.7 10.84 3267.75 9803.24 43.6 16.69 3659.32 10977.96
36 65.6 111 28.8 10.84 3591.29 10773.86 39.6 16.69 4021.63 12064.88
36 65.6 131 24.4 10.84 4238.36 12715.09 33.6 16.69 4746.25 14238.74
36 65.6 144 22.2 10.84 4658.96 13976.89 30.6 16.69 5217.25 15000.00
40 59 212 15.1 9.75 6168.95 15000.00 20.8 15.01 6908.17 15000.00
40 59 249 12.9 9.75 7245.60 15000.00 17.7 15.01 8113.84 15000.00
40 59 270 11.9 9.75 7856.68 15000.00 16.3 15.01 8798.14 15000.00
40 59 276 11.6 9.75 8031.27 15000.00 15.9 15.01 8993.65 15000.00
40 59 323 9.9 9.75 9398.91 15000.00 13.6 15.01 10525.18 15000.00
40 59 351 9.1 9.75 10213.68 15000.00 12.5 15.01 11437.58 15000.00
40 59 355 9.0 9.75 10330.07 15000.00 12.4 15.01 11567.92 15000.00
40 59 420 7.6 9.75 12221.50 15000.00 10.5 15.01 13685.99 15000.00
40 59 462 6.9 9.75 13443.65 15000.00 9.5 15.01 15000.00 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-6000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 738.5 24.50 316.90 950.70 800.0 30.66 366.02 1098.07
28.5 81 7.6 631.6 24.50 370.53 1111.59 684.2 30.66 427.97 1283.90
28.5 81 8.3 578.3 24.50 404.66 1213.97 626.5 30.66 467.38 1402.15
28.5 81 9.9 484.8 24.50 482.66 1447.99 525.3 30.66 557.48 1672.44
28.5 81 10.8 444.4 24.50 526.54 1579.63 481.5 30.66 608.16 1824.48
28.5 81 12.8 375.0 24.50 624.05 1872.15 406.3 30.66 720.78 2162.35
28.5 81 14.1 340.4 24.50 687.43 2062.29 368.8 30.66 793.99 2381.96
33.5 73 20.7 231.9 22.08 909.53 2728.59 251.2 27.63 1050.52 3151.55
33.5 73 24.3 197.5 22.08 1067.71 3203.13 214.0 27.63 1233.22 3699.65
33.5 73 26.4 181.8 22.08 1159.98 3479.95 197.0 27.63 1339.79 4019.37
33.5 73 27 177.8 22.08 1186.34 3559.03 192.6 27.63 1370.24 4110.72
33.5 73 31.5 152.4 22.08 1384.07 4152.21 165.1 27.63 1598.61 4795.84
33.5 73 34.3 139.9 22.08 1507.10 4521.29 151.6 27.63 1740.71 5222.13
33.5 73 34.7 138.3 22.08 1524.67 4574.02 149.9 27.63 1761.01 5283.03
33.5 73 41 117.1 22.08 1801.49 5404.46 126.8 27.63 2080.73 6242.20
33.5 73 45 106.7 22.08 1977.24 5931.72 115.6 27.63 2283.73 6851.20
36 65.6 66.3 72.4 19.85 2617.83 7853.49 78.4 24.83 3023.62 9070.86
36 65.6 77.7 61.8 19.85 3067.96 9203.87 66.9 24.83 3543.52 10630.55
36 65.6 86 55.8 19.85 3395.68 10187.04 60.5 24.83 3922.04 11766.12
36 65.6 101 47.5 19.85 3987.95 11963.85 51.5 24.83 4606.12 13818.35
36 65.6 111 43.2 19.85 4382.80 13148.39 46.8 24.83 5062.17 15000.00
36 65.6 131 36.6 19.85 5172.49 15000.00 39.7 24.83 5974.27 15000.00
36 65.6 144 33.3 19.85 5685.79 15000.00 36.1 24.83 6567.14 15000.00
40 59 212 22.6 17.85 7528.57 15000.00 24.5 22.33 8695.56 15000.00
40 59 249 19.3 17.85 8842.51 15000.00 20.9 22.33 10213.18 15000.00
40 59 270 17.8 17.85 9588.27 15000.00 19.3 22.33 11074.54 15000.00
40 59 276 17.4 17.85 9801.34 15000.00 18.8 22.33 11320.64 15000.00
40 59 323 14.9 17.85 11470.41 15000.00 16.1 22.33 13248.43 15000.00
40 59 351 13.7 17.85 12464.75 15000.00 14.8 22.33 14396.90 15000.00
40 59 355 13.5 17.85 12606.80 15000.00 14.6 22.33 14560.96 15000.00
40 59 420 11.4 17.85 14915.08 15000.00 12.4 22.33 15000.00 15000.00
40 59 462 10.4 17.85 15000.00 15000.00 11.3 22.33 15000.00 15000.00

Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm


Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm

Please let us know your requirements and we will provide you with transmission solutions.

Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm

Low Noise PMDC Dc Gear Reduction Motor 60MM 6v 12v 24v 60w 150rpm 8nm
