Specifications
Brand Name :
TYHE
Model Number :
TJP60FT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
Size 60*60mm
Voltage :
6v-24v
Speed :
5~1000rpm
Torque :
10.1N.m
Gear material :
steel
Commutation :
Brush brushed
Type :
12v DC Gear Motor, DC Mini Motor
Keywords :
Manufacturer 60mm gearmotor 12v 24v 24 volt 12 v low rpm high torque 50kg 10nm 100kg 40 watt 35w 15 rpm speed 775 dc gear motor
Description

Products Description

Manufacturer 60mm gearmotor 12v 24v 24 volt 12 v low rpm high torque 50kg 10nm 100kg 40 watt 35w 15 rpm speed 775 dc gear motor

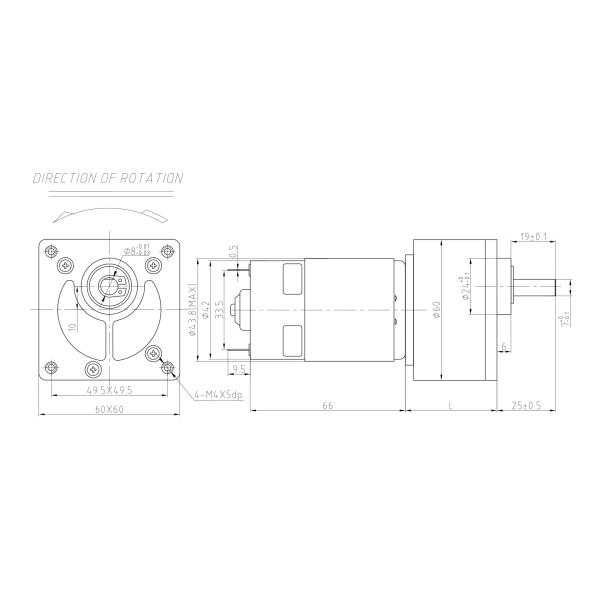

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 12 10000 1120 8000 3.76 34.00 28.48 63.07 102.00 25.00
RS775 24 2000 70 1600 0.26 23.00 3.85 61.95 69.00 1.85
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 615.4 10.72 166.37 499.12 861.5 18.05 200.07 600.21
28.5 81 7.6 526.3 10.72 194.53 583.59 736.8 18.05 233.93 701.78
28.5 81 8.3 481.9 10.72 212.45 637.34 674.7 18.05 255.47 766.42
28.5 81 9.9 404.0 10.72 253.40 760.20 565.7 18.05 304.72 914.17
28.5 81 10.8 370.4 10.72 276.44 829.31 518.5 18.05 332.42 997.27
28.5 81 12.8 312.5 10.72 327.63 982.89 437.5 18.05 393.98 1181.95
28.5 81 14.1 283.7 10.72 360.90 1082.71 397.2 18.05 434.00 1301.99
33.5 73 20.7 193.2 9.66 477.51 1432.52 270.5 16.27 574.22 1722.65
33.5 73 24.3 164.6 9.66 560.55 1681.66 230.5 16.27 674.08 2022.25
33.5 73 26.4 151.5 9.66 609.00 1826.99 212.1 16.27 732.34 2197.01
33.5 73 27 148.1 9.66 622.84 1868.51 207.4 16.27 748.98 2246.94
33.5 73 31.5 127.0 9.66 726.64 2179.93 177.8 16.27 873.81 2621.43
33.5 73 34.3 116.6 9.66 791.23 2373.70 163.3 16.27 951.48 2854.45
33.5 73 34.7 115.3 9.66 800.46 2401.38 161.4 16.27 962.58 2887.73
33.5 73 41 97.6 9.66 945.79 2837.36 136.6 16.27 1137.34 3412.02
33.5 73 45 88.9 9.66 1038.06 3114.18 124.4 16.27 1248.30 3744.90
36 65.6 66.3 60.3 8.68 1374.37 4123.12 84.5 14.62 1652.73 4958.18
36 65.6 77.7 51.5 8.68 1610.69 4832.07 72.1 14.62 1936.91 5810.72
36 65.6 86 46.5 8.68 1782.75 5348.24 65.1 14.62 2143.81 6431.42
36 65.6 101 39.6 8.68 2093.69 6281.07 55.4 14.62 2517.73 7553.18
36 65.6 111 36.0 8.68 2300.99 6902.96 50.5 14.62 2767.01 8301.02
36 65.6 131 30.5 8.68 2715.58 8146.73 42.7 14.62 3265.57 9796.70
36 65.6 144 27.8 8.68 2985.06 8955.19 38.9 14.62 3589.63 10768.90
40 59 212 18.9 7.81 3952.53 11857.58 26.4 13.15 4753.04 14259.12
40 59 249 16.1 7.81 4642.36 13927.07 22.5 13.15 5582.58 15000.00
40 59 270 14.8 7.81 5033.88 15000.00 20.7 13.15 6053.40 15000.00
40 59 276 14.5 7.81 5145.74 15000.00 20.3 13.15 6187.92 15000.00
40 59 323 12.4 7.81 6022.01 15000.00 17.3 13.15 7241.66 15000.00
40 59 351 11.4 7.81 6544.04 15000.00 16.0 13.15 7869.42 15000.00
40 59 355 11.3 7.81 6618.62 15000.00 15.8 13.15 7959.10 15000.00
40 59 420 9.5 7.81 7830.48 15000.00 13.3 13.15 9416.40 15000.00
40 59 462 8.7 7.81 8613.53 15000.00 12.1 13.15 10358.04 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-10000RPM Input 24V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 1230.8 23.07 179.01 537.03 246.2 3.12 121.10 363.29
28.5 81 7.6 1052.6 23.07 209.30 627.91 210.5 3.12 141.59 424.76
28.5 81 8.3 963.9 23.07 228.58 685.75 192.8 3.12 154.63 463.89
28.5 81 9.9 808.1 23.07 272.65 817.94 161.6 3.12 184.44 553.31
28.5 81 10.8 740.7 23.07 297.43 892.30 148.1 3.12 201.20 603.61
28.5 81 12.8 625.0 23.07 352.51 1057.54 125.0 3.12 238.46 715.39
28.5 81 14.1 567.4 23.07 388.31 1164.94 113.5 3.12 262.68 788.05
33.5 73 20.7 386.5 20.79 513.77 1541.32 77.3 2.81 347.55 1042.66
33.5 73 24.3 329.2 20.79 603.13 1809.38 65.8 2.81 408.00 1223.99
33.5 73 26.4 303.0 20.79 655.25 1965.74 60.6 2.81 443.26 1329.77
33.5 73 27 296.3 20.79 670.14 2010.42 59.3 2.81 453.33 1359.99
33.5 73 31.5 254.0 20.79 781.83 2345.49 50.8 2.81 528.89 1586.66
33.5 73 34.3 233.2 20.79 851.33 2553.98 46.6 2.81 575.90 1727.69
33.5 73 34.7 230.5 20.79 861.25 2583.76 46.1 2.81 582.61 1747.84
33.5 73 41 195.1 20.79 1017.62 3052.86 39.0 2.81 688.39 2065.17
33.5 73 45 177.8 20.79 1116.90 3350.70 35.6 2.81 755.55 2266.65
36 65.6 66.3 120.7 18.68 1478.76 4436.27 24.1 2.53 1000.33 3001.00
36 65.6 77.7 103.0 18.68 1733.02 5199.06 20.6 2.53 1172.34 3517.01
36 65.6 86 93.0 18.68 1918.14 5754.43 18.6 2.53 1297.57 3892.70
36 65.6 101 79.2 18.68 2252.70 6758.11 15.8 2.53 1523.89 4571.66
36 65.6 111 72.1 18.68 2475.74 7427.23 14.4 2.53 1674.77 5024.30
36 65.6 131 61.1 18.68 2921.82 8765.47 12.2 2.53 1976.53 5929.58
36 65.6 144 55.6 18.68 3211.78 9635.33 11.1 2.53 2172.67 6518.02
40 59 212 37.7 16.80 4252.72 12758.16 7.5 2.27 2876.84 8630.52
40 59 249 32.1 16.80 4994.94 14984.82 6.4 2.27 3378.93 10136.79
40 59 270 29.6 16.80 5416.20 15000.00 5.9 2.27 3663.90 10991.70
40 59 276 29.0 16.80 5536.56 15000.00 5.8 2.27 3745.32 11235.96
40 59 323 24.8 16.80 6479.38 15000.00 5.0 2.27 4383.11 13149.33
40 59 351 22.8 16.80 7041.06 15000.00 4.6 2.27 4763.07 14289.21
40 59 355 22.5 16.80 7121.30 15000.00 4.5 2.27 4817.35 14452.05
40 59 420 19.0 16.80 8425.20 15000.00 3.8 2.27 5699.40 15000.00
40 59 462 17.3 16.80 9267.72 15000.00 3.5 2.27 6269.34 15000.00

60mm 12v 24V DC Gear Motor Low Rpm High Torque 40W 35w 15 Rpm Speed 775


60mm 12v 24V DC Gear Motor Low Rpm High Torque 40W 35w 15 Rpm Speed 775

Please let us know your requirements and we will provide you with transmission solutions.
