Specifications
Brand Name :
TYHE
Model Number :
TJP50RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
50mm dia
Voltage :
6-24V or Customized
Speed :
3-500rpm or Customized
Torque :
8N.m
Gear material :
Powder metallurgy, steel gear
Commutation :
Brush /brushes /brushed
Type :
Gear Motor, DC mini Motor
Keywords :
Factory goods 50mm gear box 12v 24v 6 volt 35w 15 watt 20w 70rpm 4nm 10 rpm 30 rpm ccw cw small brush dc steel gear motor
Description

Factory Goods 50mm Gear Box 12v 24v 6 Volt 35w 15 W 20w 70rpm 4nm 10 Rpm 30 Rpm Ccw Cw Small Brush Dc Steel Gear Motor

Products Description

Factory goods 50mm gear box 12v 24v 6 volt 35w 15 watt 20w 70rpm 4nm 10 rpm 30 rpm ccw cw small brush dc steel gear motor

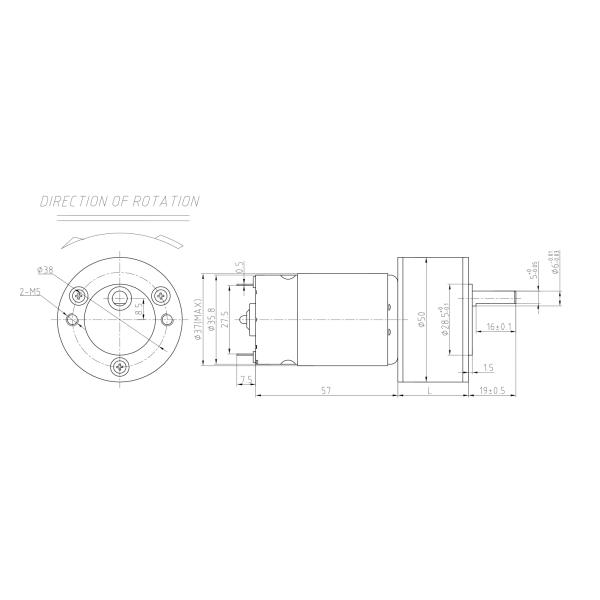

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 3000 110 2400 0.42 12.30 3.09 62.07 36.90 3.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 6V-6000RPM Input 12V-3000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
24.3 73 12.3 390.2 5.21 127.50 382.51 195.1 2.26 110.44 331.33
24.3 73 15.5 309.7 5.21 160.67 482.02 154.8 2.26 139.17 417.52
24.3 73 19 252.6 5.21 196.95 590.86 126.3 2.26 170.60 511.80
24.3 73 19.7 243.7 5.21 204.21 612.63 121.8 2.26 176.89 530.66
24.3 73 23.9 200.8 5.21 247.75 743.24 100.4 2.26 214.60 643.79
24.3 73 24.3 197.5 5.21 251.89 755.68 98.8 2.26 218.19 654.57
24.3 73 30.5 157.4 5.21 316.16 948.49 78.7 2.26 273.86 821.58
24.3 73 37.5 128.0 5.21 388.73 1166.18 64.0 2.26 336.71 1010.14
28.3 65.6 44 109.1 4.68 409.87 1229.61 54.5 2.03 355.03 1065.08
28.3 65.6 55 87.3 4.68 512.34 1537.01 43.6 2.03 443.78 1331.35
28.3 65.6 68 70.6 4.68 633.43 1900.30 35.3 2.03 548.68 1646.04
28.3 65.6 71 67.6 4.68 661.38 1984.14 33.8 2.03 572.88 1718.65
28.3 65.6 86 55.8 4.68 801.11 2403.32 27.9 2.03 693.92 2081.75
28.3 65.6 87 55.2 4.68 810.42 2431.27 27.6 2.03 701.99 2105.96
28.3 65.6 109 44.0 4.68 1015.36 3046.07 22.0 2.03 879.50 2638.50
28.3 65.6 134 35.8 4.68 1248.24 3744.71 17.9 2.03 1081.22 3243.66
32.3 59 158 30.4 4.21 1323.72 3971.17 15.2 1.82 1146.61 3439.82
32.3 59 199 24.1 4.21 1667.22 5001.67 12.1 1.82 1444.14 4332.43
32.3 59 244 19.7 4.21 2044.23 6132.70 9.8 1.82 1770.71 5312.12
32.3 59 253 19.0 4.21 2119.63 6358.90 9.5 1.82 1836.02 5508.06
32.3 59 307 15.6 4.21 2572.05 7716.14 7.8 1.82 2227.90 6683.70
32.3 59 311 15.4 4.21 2605.56 7816.67 7.7 1.82 2256.93 6770.78
32.3 59 391 12.3 4.21 3275.80 8000.00 6.1 1.82 2837.49 8000.00
32.3 59 481 10.0 4.21 4029.82 8000.00 5.0 1.82 3490.62 8000.00
35.8 53 567 8.5 3.78 4267.24 8000.00 4.2 1.64 3696.27 8000.00
35.8 53 712 6.7 3.78 5358.51 8000.00 3.4 1.64 4641.53 8000.00
35.8 53 876 5.5 3.78 6592.78 8000.00 2.7 1.64 5710.64 8000.00
35.8 53 907 5.3 3.78 6826.08 8000.00 2.6 1.64 5912.73 8000.00
35.8 53 1101 4.4 3.78 8000.00 8000.00 2.2 1.64 7177.42 8000.00
35.8 53 1116 4.3 3.78 8000.00 8000.00 2.2 1.64 7275.20 8000.00
35.8 53 1401 3.4 3.78 8000.00 8000.00 1.7 1.64 8000.00 8000.00
35.8 53 1725 2.8 3.78 8000.00 8000.00 1.4 1.64 8000.00 8000.00

50mm Gear Box 6-24V Steel 12V Dc Gear Motor 70rpm 4nm Ccw Cw


50mm Gear Box 6-24V Steel 12V Dc Gear Motor 70rpm 4nm Ccw Cw

Please let us know your requirements and we will provide you with transmission solutions.
