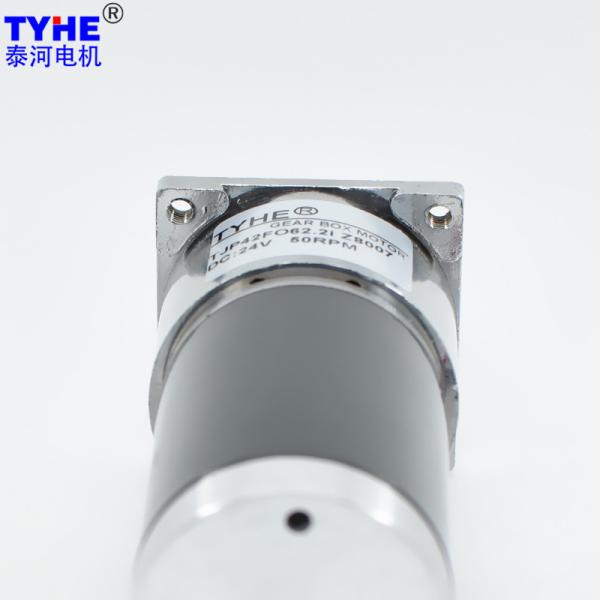

OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP42FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D42mm
Voltage :
12v 18v 24v or Customized
Speed :
35rpm or Customized
Torque :
6N.m
Gear material :
Powder metallurgy steel gears
Commutation :
Brush brushes
Type :
DC gear Motor, Spur Gear Motor
Keywords :
OEM small 42mm flange 12v 24v 600 rpm 450 rpm 1400rpm 10kgcm 30kgcm torque 15w 10w 20 watt dc gear motor for bbq grill
Description

Products Description

OEM small 42mm flange 12v 24v 600 rpm 450 rpm 1400rpm 10kgcm 30kgcm torque 15w 10w 20 watt dc gear motor for bbq grill

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 1266.7 7.66 57.74 173.21 1333.3 8.26 59.19 177.58
25.7 81 4.4 1036.4 7.66 70.57 211.70 1090.9 8.26 72.35 217.05
25.7 81 5.4 844.4 7.66 86.61 259.82 888.9 8.26 88.79 266.38
25.7 81 6.8 670.6 7.66 109.06 327.18 705.9 8.26 111.81 335.44
25.7 81 8.6 530.2 7.66 137.93 413.78 558.1 8.26 141.41 424.23
29.3 73 9.7 470.1 6.90 140.20 420.61 494.8 7.45 143.74 431.23
29.3 73 11.8 386.4 6.90 170.56 511.67 406.8 7.45 174.86 524.59
29.3 73 14.6 312.3 6.90 211.03 633.09 328.8 7.45 216.36 649.07
29.3 73 18.2 250.5 6.90 263.06 789.19 263.7 7.45 269.71 809.12
29.3 73 23.3 195.7 6.90 336.78 1010.33 206.0 7.45 345.28 1035.85
29.3 65.6 25.9 176.1 6.20 336.41 1009.23 185.3 6.69 344.91 1034.72
29.3 65.6 31.6 144.3 6.20 410.45 1231.34 151.9 6.69 420.81 1262.43
29.3 65.6 38.9 117.2 6.20 505.26 1515.79 123.4 6.69 518.02 1554.07
29.3 65.6 48.6 93.8 6.20 631.26 1893.77 98.8 6.69 647.20 1941.59
29.3 65.6 62.2 73.3 6.20 807.90 2423.71 77.2 6.69 828.30 2484.91
32.6 59 69.1 66.0 5.58 807.23 2421.68 69.5 6.02 827.61 2482.83
32.6 59 84.2 54.2 5.58 983.62 2950.87 57.0 6.02 1008.46 3025.39
32.6 59 104 43.8 5.58 1214.93 3644.78 46.2 6.02 1245.61 3736.82
32.6 59 130 35.1 5.58 1518.66 4555.98 36.9 6.02 1557.01 4671.03
32.6 59 164 27.8 5.58 1915.85 5000.00 29.3 6.02 1964.23 5000.00
32.6 59 170 26.8 5.58 1985.94 5000.00 28.2 6.02 2036.09 5000.00
36 53 184 24.8 5.01 1930.90 5000.00 26.1 5.41 1979.66 5000.00
36 53 225 20.3 5.01 2361.15 5000.00 21.3 5.41 2420.78 5000.00
36 53 276 16.5 5.01 2896.34 5000.00 17.4 5.41 2969.48 5000.00
36 53 346 13.2 5.01 3630.92 5000.00 13.9 5.41 3722.61 5000.00
36 53 442 10.3 5.01 4638.35 5000.00 10.9 5.41 4755.48 5000.00
36 53 459 9.9 5.01 4816.75 5000.00 10.5 5.41 4938.38 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-6000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 1333.3 10.06 72.03 216.08 1777.8 13.57 72.90 218.70
25.7 81 4.4 1090.9 10.06 88.03 264.09 1454.5 13.57 89.10 267.30
25.7 81 5.4 888.9 10.06 108.04 324.11 1185.2 13.57 109.35 328.05
25.7 81 6.8 705.9 10.06 136.05 408.14 941.2 13.57 137.70 413.10
25.7 81 8.6 558.1 10.06 172.06 516.18 744.2 13.57 174.15 522.45
29.3 73 9.7 494.8 9.06 174.90 524.70 659.8 12.23 177.03 531.08
29.3 73 11.8 406.8 9.06 212.77 638.30 542.4 12.23 215.35 646.05
29.3 73 14.6 328.8 9.06 263.25 789.76 438.4 12.23 266.45 799.35
29.3 73 18.2 263.7 9.06 328.16 984.49 351.6 12.23 332.15 996.45
29.3 73 23.3 206.0 9.06 420.12 1260.37 274.7 12.23 425.23 1275.68
29.3 65.6 25.9 185.3 8.14 419.66 1258.99 247.1 10.99 424.76 1274.28
29.3 65.6 31.6 151.9 8.14 512.02 1536.06 202.5 10.99 518.24 1554.72
29.3 65.6 38.9 123.4 8.14 630.30 1890.91 164.5 10.99 637.96 1913.88
29.3 65.6 48.6 98.8 8.14 787.48 2362.43 131.7 10.99 797.04 2391.12
29.3 65.6 62.2 77.2 8.14 1007.84 3023.52 102.9 10.99 1020.08 3060.24
32.6 59 69.1 69.5 7.32 1006.99 3020.98 92.6 9.88 1019.23 3057.68
32.6 59 84.2 57.0 7.32 1227.05 3681.14 76.0 9.88 1241.95 3725.85
32.6 59 104 46.2 7.32 1515.59 4546.78 61.5 9.88 1534.00 4602.00
32.6 59 130 36.9 7.32 1894.49 5000.00 49.2 9.88 1917.50 5000.00
32.6 59 164 29.3 7.32 2389.97 5000.00 39.0 9.88 2419.00 5000.00
32.6 59 170 28.2 7.32 2477.41 5000.00 37.6 9.88 2507.50 5000.00
36 53 184 26.1 6.58 2408.74 5000.00 34.8 8.88 2438.00 5000.00
36 53 225 21.3 6.58 2945.48 5000.00 28.4 8.88 2981.25 5000.00
36 53 276 17.4 6.58 3613.12 5000.00 23.2 8.88 3657.00 5000.00
36 53 346 13.9 6.58 4529.49 5000.00 18.5 8.88 4584.50 5000.00
36 53 442 10.9 6.58 5000.00 5000.00 14.5 8.88 5000.00 5000.00
36 53 459 10.5 6.58 5000.00 5000.00 13.9 8.88 5000.00 5000.00

OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm


OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm

Please let us know your requirements and we will provide you with transmission solutions.

OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm

OEM Small 42mm Flange 12v 24v Dc Gear Motor For Bbq Grill 600Rpm
