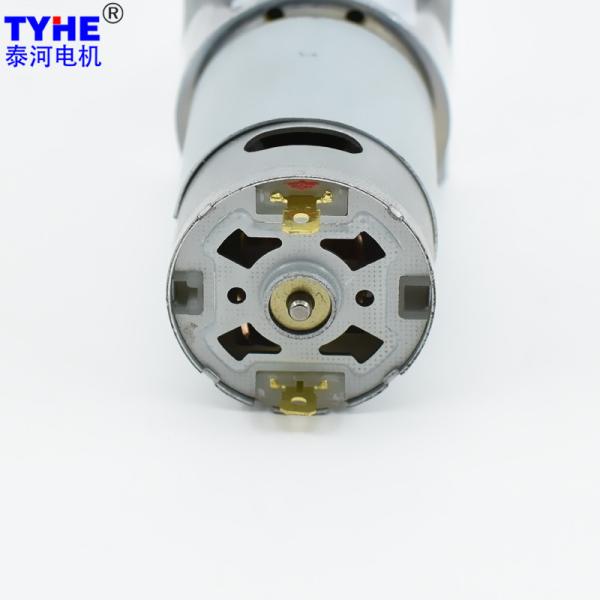

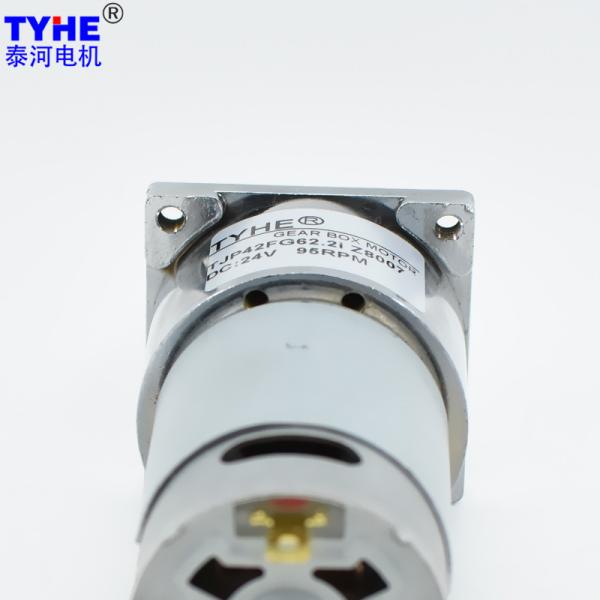

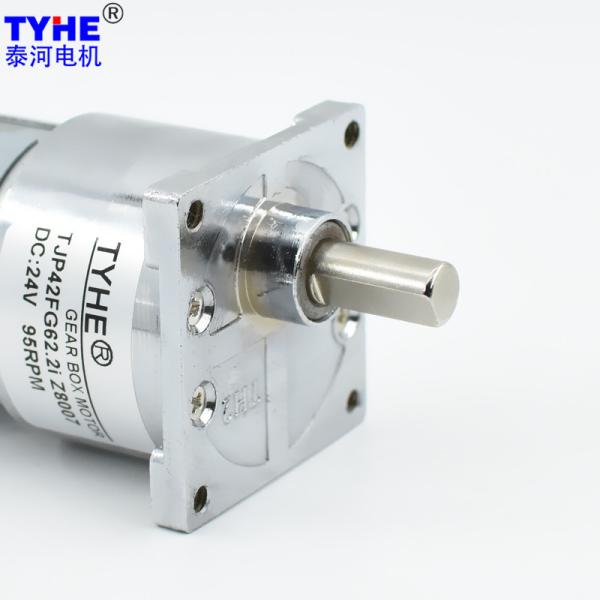

42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
Specifications
Brand Name :
TYHE
Model Number :
TJP42FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D42mm
Voltage :
customized
Speed :
80rpm Customized
Torque :
5N.m Customized
Gear material :
Powder metallurgy, steel gears
Commutation :
Brush /brushes /brushed
Type :
Gear Motor, mini Motor
Usage :
Medical equipments
Keywords :
Tyhe 42mm gearbox 6v 12v 24v 40kg cm high torque 10 rpm 150 rpm 300 rpm 12w dc gear motor for home appliance
Description

Products Description

Tyhe 42mm gearbox 6v 12v 24v 40kg cm high torque 10 rpm 150 rpm 300 rpm 12w dc gear motor for home appliance

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 24 3500 70 2800 0.31 15.80 4.63 61.60 47.40 2.50
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 6V-6000RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 1333.3 5.78 41.41 124.22 1111.1 5.70 48.99 146.97
25.7 81 4.4 1090.9 5.78 50.61 151.83 909.1 5.70 59.88 179.63
25.7 81 5.4 888.9 5.78 62.11 186.33 740.7 5.70 73.48 220.45
25.7 81 6.8 705.9 5.78 78.21 234.64 588.2 5.70 92.53 277.60
25.7 81 8.6 558.1 5.78 98.92 296.75 465.1 5.70 117.03 351.09
29.3 73 9.7 494.8 5.21 100.55 301.65 412.4 5.14 118.96 356.88
29.3 73 11.8 406.8 5.21 122.32 366.96 339.0 5.14 144.72 434.15
29.3 73 14.6 328.8 5.21 151.34 454.03 274.0 5.14 179.05 537.16
29.3 73 18.2 263.7 5.21 188.66 565.98 219.8 5.14 223.20 669.61
29.3 73 23.3 206.0 5.21 241.53 724.58 171.7 5.14 285.75 857.25
29.3 65.6 25.9 185.3 4.68 241.26 723.79 154.4 4.62 285.44 856.32
29.3 65.6 31.6 151.9 4.68 294.36 883.08 126.6 4.62 348.26 1044.77
29.3 65.6 38.9 123.4 4.68 362.36 1087.08 102.8 4.62 428.71 1286.13
29.3 65.6 48.6 98.8 4.68 452.72 1358.16 82.3 4.62 535.61 1606.83
29.3 65.6 62.2 77.2 4.68 579.41 1738.22 64.3 4.62 685.49 2056.48
32.6 59 69.1 69.5 4.21 578.92 1736.76 57.9 4.15 684.92 2054.76
32.6 59 84.2 57.0 4.21 705.43 2116.28 47.5 4.15 834.59 2503.77
32.6 59 104 46.2 4.21 871.31 2613.94 38.5 4.15 1030.85 3092.54
32.6 59 130 36.9 4.21 1089.14 3267.42 30.8 4.15 1288.56 3865.68
32.6 59 164 29.3 4.21 1373.99 4121.98 24.4 4.15 1625.57 4876.70
32.6 59 170 28.2 4.21 1424.26 4272.78 23.5 4.15 1685.04 5000.00
36 53 184 26.1 3.78 1384.78 4154.35 21.7 3.73 1638.34 4915.01
36 53 225 21.3 3.78 1693.35 5000.00 17.8 3.73 2003.40 5000.00
36 53 276 17.4 3.78 2077.18 5000.00 14.5 3.73 2457.50 5000.00
36 53 346 13.9 3.78 2604.00 5000.00 11.6 3.73 3080.78 5000.00
36 53 442 10.9 3.78 3326.49 5000.00 9.0 3.73 3935.57 5000.00
36 53 459 10.5 3.78 3454.43 5000.00 8.7 3.73 4086.94 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3500RPM Input 24V-7600RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 777.8 3.75 46.07 138.22 1688.9 11.96 67.65 202.95
25.7 81 4.4 636.4 3.75 56.31 168.93 1381.8 11.96 82.68 248.05
25.7 81 5.4 518.5 3.75 69.11 207.33 1125.9 11.96 101.48 304.43
25.7 81 6.8 411.8 3.75 87.03 261.08 894.1 11.96 127.79 383.36
25.7 81 8.6 325.6 3.75 110.06 330.19 707.0 11.96 161.61 484.83
29.3 73 9.7 288.7 3.38 111.88 335.64 626.8 10.78 164.28 492.84
29.3 73 11.8 237.3 3.38 136.10 408.30 515.3 10.78 199.84 599.53
29.3 73 14.6 191.8 3.38 168.40 505.19 416.4 10.78 247.27 741.80
29.3 73 18.2 153.8 3.38 209.92 629.76 334.1 10.78 308.24 924.71
29.3 73 23.3 120.2 3.38 268.74 806.23 260.9 10.78 394.61 1183.83
29.3 65.6 25.9 108.1 3.04 268.45 805.34 234.7 9.69 394.18 1182.53
29.3 65.6 31.6 88.6 3.04 327.53 982.58 192.4 9.69 480.93 1442.78
29.3 65.6 38.9 72.0 3.04 403.19 1209.57 156.3 9.69 592.03 1776.08
29.3 65.6 48.6 57.6 3.04 503.73 1511.19 125.1 9.69 739.65 2218.96
29.3 65.6 62.2 45.0 3.04 644.69 1934.07 97.7 9.69 946.63 2839.90
32.6 59 69.1 40.5 2.73 644.15 1932.45 88.0 8.71 945.84 2837.52
32.6 59 84.2 33.3 2.73 784.91 2354.74 72.2 8.71 1152.53 3457.59
32.6 59 104 26.9 2.73 969.49 2908.46 58.5 8.71 1423.55 4270.66
32.6 59 130 21.5 2.73 1211.86 3635.58 46.8 8.71 1779.44 5000.00
32.6 59 164 17.1 2.73 1528.81 4586.42 37.1 8.71 2244.83 5000.00
32.6 59 170 16.5 2.73 1584.74 4754.22 35.8 8.71 2326.96 5000.00
36 53 184 15.2 2.46 1540.82 4622.45 33.0 7.83 2262.46 5000.00
36 53 225 12.4 2.46 1884.15 5000.00 27.0 7.83 2766.60 5000.00
36 53 276 10.1 2.46 2311.22 5000.00 22.0 7.83 3393.70 5000.00
36 53 346 8.1 2.46 2897.40 5000.00 17.6 7.83 4254.42 5000.00
36 53 442 6.3 2.46 3701.31 5000.00 13.8 7.83 5434.83 5000.00
36 53 459 6.1 2.46 3843.67 5000.00 13.2 7.83 5643.86 5000.00

2D drawing

42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance


42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance

Please let us know your requirements and we will provide you with transmission solutions.

42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance

42mm Gearbox 10 Rpm Gear Motor 150 Rpm 300 Rpm 12w For Home Appliance
