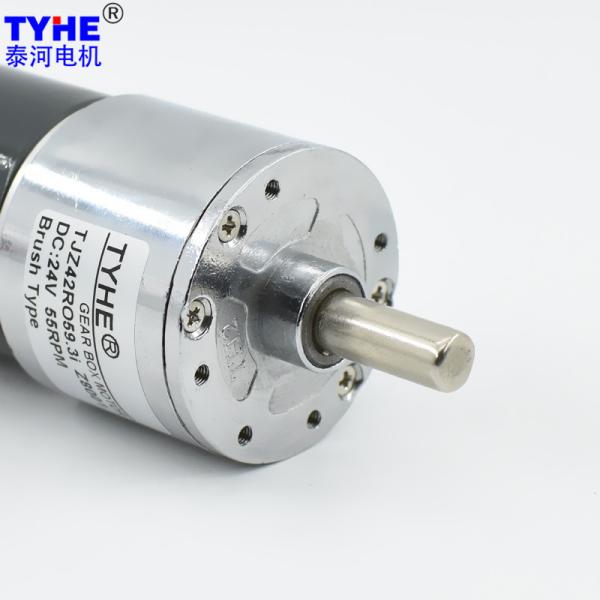

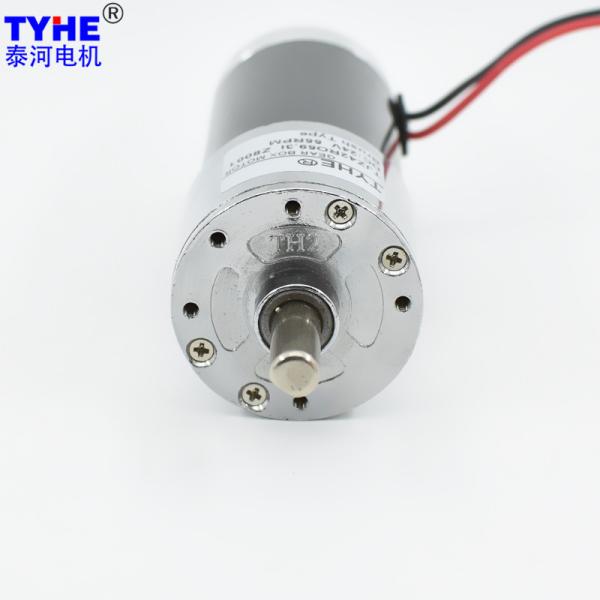

30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
Specifications
Brand Name :
TYHE
Model Number :
TJZ42RO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D42mm
Voltage :
12-24volt
Speed :
10-500rpm
Torque :
5N.m Customized
Gear material :
Powder metallurgy, steel gears
Commutation :
Brush
Type :
DC Gear Motor
Usage :
automatic cruise control, ride-on toy
Keywords :
Factory 42mm gearbox 12v24v30v 36 volt 30 watt large torque 45kgcm 30kgcm 15rpm small PMDC dc gear motor for Shoe covers machine
Description

Factory 42mm Gearbox 12v24v30v 36 Volt 30 Watt Large Torque 45kgcm 30kgcm 15rpm Small PMDC Dc Gear Motor For Machine

Products Description

Factory 42mm gearbox 12v24v30v 36 volt 30 watt large torque 45kgcm 30kgcm 15rpm small PMDC dc gear motor for Shoe covers machine

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 3200 80 2560 0.25 14.30 3.83 63.89 42.90 1.30
ZY3864 24 4000 120 3200 0.40 17.90 6.00 62.48 53.70 2.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1824.0 7.66 40.10 120.29 1920.0 8.26 41.11 123.32
25.7 81 3.1 1471.0 7.66 49.72 149.15 1548.4 8.26 50.97 152.92
25.7 81 3.8 1200.0 7.66 60.94 182.83 1263.2 8.26 62.48 187.45
25.7 81 4.8 950.0 7.66 76.98 230.95 1000.0 8.26 78.93 236.78
25.7 81 6.1 747.5 7.66 97.83 293.50 786.9 8.26 100.30 300.91
25.7 73 6.8 670.6 6.90 98.29 294.86 705.9 7.45 100.77 302.31
25.7 73 8.3 549.4 6.90 119.97 359.90 578.3 7.45 123.00 368.99
25.7 73 10.3 442.7 6.90 148.88 446.63 466.0 7.45 152.64 457.91
25.7 73 12.8 356.3 6.90 185.01 555.03 375.0 7.45 189.68 569.05
25.7 73 16.4 278.0 6.90 237.05 711.14 292.7 7.45 243.03 729.09
25.7 65.6 18.2 250.5 6.20 236.40 709.19 263.7 6.69 242.37 727.10
25.7 65.6 22.2 205.4 6.20 288.35 865.05 216.2 6.69 295.63 886.90
25.7 65.6 27.4 166.4 6.20 355.89 1067.68 175.2 6.69 364.88 1094.64
25.7 65.6 34.2 133.3 6.20 444.22 1332.65 140.4 6.69 455.43 1366.30
25.7 65.6 43.8 104.1 6.20 568.91 1706.73 109.6 6.69 583.28 1749.83
29.5 59 48.6 93.8 5.58 567.75 1703.24 98.8 6.02 582.08 1746.25
29.5 59 59.3 76.9 5.58 692.74 2078.23 80.9 6.02 710.24 2130.71
29.5 59 73.0 62.5 5.58 852.79 2558.36 65.8 6.02 874.32 2622.96
29.5 59 91.2 50.0 5.58 1065.40 3196.20 52.6 6.02 1092.30 3276.91
29.5 59 117.0 39.0 5.58 1366.79 4100.38 41.0 6.02 1401.31 4203.93
29.5 59 120.0 38.0 5.58 1401.84 4205.52 40.0 6.02 1437.24 4311.72
32.7 53 130.0 35.1 5.01 1364.22 4092.66 36.9 5.41 1398.67 4196.01
32.7 53 158.0 28.9 5.01 1658.05 4974.16 30.4 5.41 1699.92 5000.00
32.7 53 195.0 23.4 5.01 2046.33 5000.00 24.6 5.41 2098.01 5000.00
32.7 53 243.0 18.8 5.01 2550.04 5000.00 19.8 5.41 2614.44 5000.00
32.7 53 311.0 14.7 5.01 3263.63 5000.00 15.4 5.41 3346.05 5000.00
32.7 53 323.0 14.1 5.01 3389.56 5000.00 14.9 5.41 3475.16 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3200RPM Input 24V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1024.0 3.10 28.96 86.87 1280.0 4.86 36.25 108.74
25.7 81 3.1 825.8 3.10 35.91 107.72 1032.3 4.86 44.95 134.84
25.7 81 3.8 673.7 3.10 44.02 132.05 842.1 4.86 55.10 165.29
25.7 81 4.8 533.3 3.10 55.60 166.80 666.7 4.86 69.60 208.79
25.7 81 6.1 419.7 3.10 70.66 211.97 524.6 4.86 88.44 265.33
25.7 73 6.8 376.5 2.80 70.99 212.96 470.6 4.38 88.86 266.57
25.7 73 8.3 308.4 2.80 86.64 259.93 385.5 4.38 108.46 325.37
25.7 73 10.3 248.5 2.80 107.52 322.57 310.7 4.38 134.59 403.77
25.7 73 12.8 200.0 2.80 133.62 400.86 250.0 4.38 167.26 501.77
25.7 73 16.4 156.1 2.80 171.20 513.60 195.1 4.38 214.30 642.90
25.7 65.6 18.2 140.7 2.51 170.73 512.19 175.8 3.93 213.71 641.14
25.7 65.6 22.2 115.3 2.51 208.25 624.76 144.1 3.93 260.68 782.04
25.7 65.6 27.4 93.4 2.51 257.03 771.10 116.8 3.93 321.74 965.23
25.7 65.6 34.2 74.9 2.51 320.82 962.47 93.6 3.93 401.59 1204.77
25.7 65.6 43.8 58.4 2.51 410.88 1232.64 73.1 3.93 514.32 1542.95
29.5 59 48.6 52.7 2.26 410.04 1230.11 65.8 3.54 513.26 1539.79
29.5 59 59.3 43.2 2.26 500.31 1500.94 54.0 3.54 626.27 1878.80
29.5 59 73.0 35.1 2.26 615.90 1847.70 43.8 3.54 770.95 2312.86
29.5 59 91.2 28.1 2.26 769.45 2308.36 35.1 3.54 963.16 2889.49
29.5 59 117.0 21.9 2.26 987.13 2961.39 27.4 3.54 1235.64 3706.91
29.5 59 120.0 21.3 2.26 1012.44 3037.32 26.7 3.54 1267.32 3801.96
32.7 53 130.0 19.7 2.03 985.27 2955.81 24.6 3.18 1233.31 3699.93
32.7 53 158.0 16.2 2.03 1197.48 3592.45 20.3 3.18 1498.95 4496.84
32.7 53 195.0 13.1 2.03 1477.91 4433.72 16.4 3.18 1849.97 5000.00
32.7 53 243.0 10.5 2.03 1841.70 5000.00 13.2 3.18 2305.34 5000.00
32.7 53 311.0 8.2 2.03 2357.07 5000.00 10.3 3.18 2950.46 5000.00
32.7 53 323.0 7.9 2.03 2448.02 5000.00 9.9 3.18 3064.30 5000.00

2D drawing

30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine


30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine

Please let us know your requirements and we will provide you with transmission solutions.

30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine

30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
