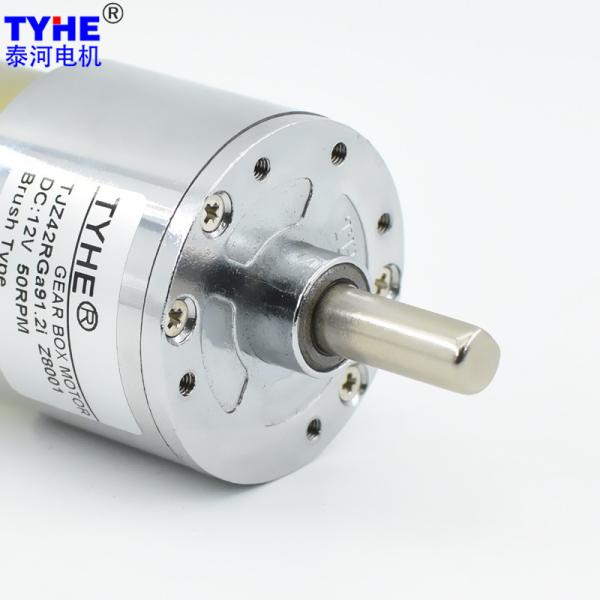

High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
Specifications
Brand Name :
TYHE
Model Number :
TJZ42RGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm size
Voltage :
6-24V or Customized
Speed :
Customized
Torque :
5N.m Customized
Gear material :
Steel
Commutation :
brushes
Type :
Gear Motor, Micro Motor
Usage :
medical robot, automatic feeder
Keywords :
Manufacturer 42mm gearbox 12v 14v 16v 24 volt high torque 3nm 40kg 50kg load 20rpm 30 rpm brushed micro 520 dc gear motor
Description

Manufacturer 42mm Gearbox 12v 14v 16v 24 Volt High Torque 3nm 40kg 50kg Load 20rpm 30 Rpm Brushed Micro 520 Gear Motor

Products Description

Manufacturer 42mm gearbox 12v 14v 16v 24 volt high torque 3nm 40kg 50kg load 20rpm 30 rpm brushed micro 520 dc gear motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1120.0 1.26 10.73 32.20 1600.0 3.02 18.02 54.07
25.7 81 3.1 903.2 1.26 13.31 39.92 1290.3 3.02 22.35 67.04
25.7 81 3.8 736.8 1.26 16.31 48.94 1052.6 3.02 27.39 82.18
25.7 81 4.8 583.3 1.26 20.61 61.82 833.3 3.02 34.60 103.81
25.7 81 6.1 459.0 1.26 26.19 78.56 655.7 3.02 43.97 131.92
25.7 73 6.8 411.8 1.13 26.31 78.93 588.2 2.72 44.18 132.54
25.7 73 8.3 337.3 1.13 32.11 96.34 481.9 2.72 53.93 161.78
25.7 73 10.3 271.8 1.13 39.85 119.55 388.3 2.72 66.92 200.76
25.7 73 12.8 218.8 1.13 49.52 148.57 312.5 2.72 83.16 249.48
25.7 73 16.4 170.7 1.13 63.45 190.35 243.9 2.72 106.55 319.65
25.7 65.6 18.2 153.8 1.02 63.28 189.83 219.8 2.45 106.26 318.78
25.7 65.6 22.2 126.1 1.02 77.18 231.55 180.2 2.45 129.61 388.84
25.7 65.6 27.4 102.2 1.02 95.26 285.79 146.0 2.45 159.97 479.92
25.7 65.6 34.2 81.9 1.02 118.91 356.72 117.0 2.45 199.67 599.02
25.7 65.6 43.8 63.9 1.02 152.28 456.85 91.3 2.45 255.72 767.17
29.5 59 48.6 57.6 0.92 151.97 455.92 82.3 2.20 255.20 765.60
29.5 59 59.3 47.2 0.92 185.43 556.29 67.5 2.20 311.38 934.15
29.5 59 73.0 38.4 0.92 228.27 684.81 54.8 2.20 383.32 1149.97
29.5 59 91.2 30.7 0.92 285.18 855.55 43.9 2.20 478.89 1436.67
29.5 59 117.0 23.9 0.92 365.86 1097.58 34.2 2.20 614.37 1843.10
29.5 59 120.0 23.3 0.92 375.24 1125.72 33.3 2.20 630.12 1890.36
32.7 53 130.0 21.5 0.82 365.17 1095.51 30.8 1.98 613.21 1839.63
32.7 53 158.0 17.7 0.82 443.82 1331.47 25.3 1.98 745.29 2235.86
32.7 53 195.0 14.4 0.82 547.76 1643.27 20.5 1.98 919.82 2759.45
32.7 53 243.0 11.5 0.82 682.59 2047.76 16.5 1.98 1146.23 3438.69
32.7 53 311.0 9.0 0.82 873.60 2620.80 12.9 1.98 1466.99 4400.96
32.7 53 323.0 8.7 0.82 907.31 2721.92 12.4 1.98 1523.59 4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1600.0 3.09 18.47 55.40 2400.0 4.71 18.73 56.19
25.7 81 3.1 1290.3 3.09 22.90 68.70 1935.5 4.71 23.23 69.68
25.7 81 3.8 1052.6 3.09 28.07 84.21 1578.9 4.71 28.47 85.41
25.7 81 4.8 833.3 3.09 35.46 106.38 1250.0 4.71 35.96 107.89
25.7 81 6.1 655.7 3.09 45.06 135.19 983.6 4.71 45.70 137.11
25.7 73 6.8 588.2 2.79 45.27 135.82 882.4 4.24 45.92 137.75
25.7 73 8.3 481.9 2.79 55.26 165.77 722.9 4.24 56.05 168.14
25.7 73 10.3 388.3 2.79 68.57 205.72 582.5 4.24 69.55 208.65
25.7 73 12.8 312.5 2.79 85.22 255.65 468.8 4.24 86.43 259.30
25.7 73 16.4 243.9 2.79 109.18 327.55 365.9 4.24 110.74 332.22
25.7 65.6 18.2 219.8 2.51 108.89 326.66 329.7 3.81 110.44 331.31
25.7 65.6 22.2 180.2 2.51 132.82 398.45 270.3 3.81 134.71 404.13
25.7 65.6 27.4 146.0 2.51 163.93 491.78 219.0 3.81 166.26 498.79
25.7 65.6 34.2 117.0 2.51 204.61 613.83 175.4 3.81 207.53 622.58
25.7 65.6 43.8 91.3 2.51 262.04 786.13 137.0 3.81 265.78 797.34
29.5 59 48.6 82.3 2.25 261.51 784.52 123.5 3.43 265.23 795.70
29.5 59 59.3 67.5 2.25 319.08 957.24 101.2 3.43 323.63 970.89
29.5 59 73.0 54.8 2.25 392.80 1178.40 82.2 3.43 398.40 1195.19
29.5 59 91.2 43.9 2.25 490.73 1472.19 65.8 3.43 497.72 1493.17
29.5 59 117.0 34.2 2.25 629.55 1888.66 51.3 3.43 638.53 1915.58
29.5 59 120.0 33.3 2.25 645.70 1937.09 50.0 3.43 654.90 1964.70
32.7 53 130.0 30.8 2.02 628.37 1885.10 46.2 3.08 637.33 1911.98
32.7 53 158.0 25.3 2.02 763.71 2291.13 38.0 3.08 774.60 2323.79
32.7 53 195.0 20.5 2.02 942.55 2827.66 30.8 3.08 955.99 2867.96
32.7 53 243.0 16.5 2.02 1174.56 3523.69 24.7 3.08 1191.31 3573.92
32.7 53 311.0 12.9 2.02 1503.25 4509.75 19.3 3.08 1524.68 4574.03
32.7 53 323.0 12.4 2.02 1561.25 4683.76 18.6 3.08 1583.51 4750.52

2D drawing

High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm


High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm

Please let us know your requirements and we will provide you with transmission solutions.

High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm

High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
