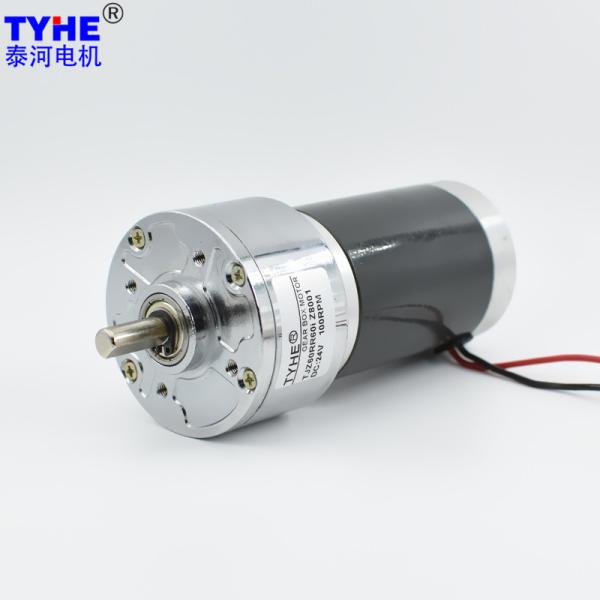

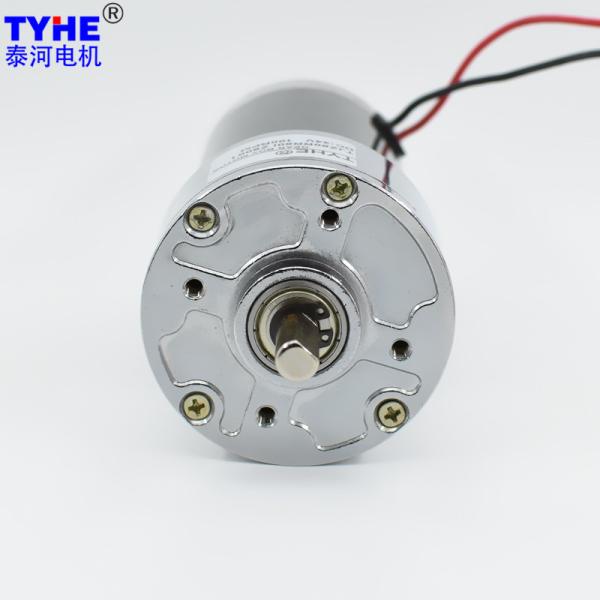

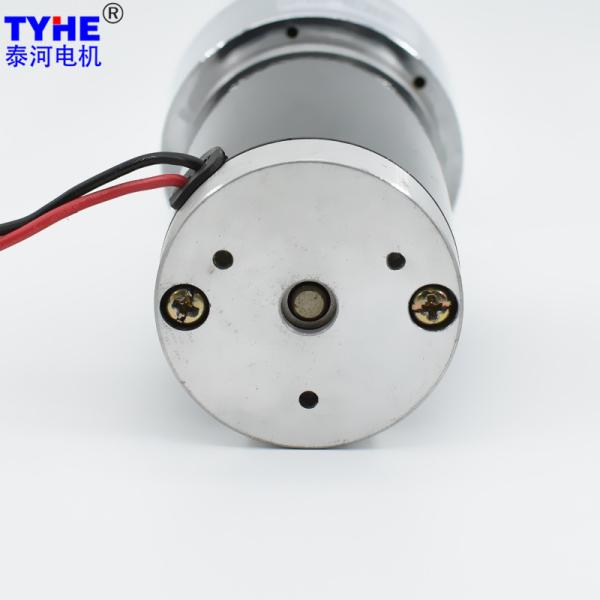

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
Specifications
Brand Name :
TYHE
Model Number :
TJZ60RR
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm or Customized
Voltage :
12-24volt or customized
Speed :
Customized
Torque :
10.5N.m
Gear material :
steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, DC Small Motor
Usage :
Air conditioning, dustbin, coffee machine
Keywords :
Speed adjustable 60MM gear box 12v 24v 24 v 100 rpm 50 rpm 70rpm 75 watt 60w 50w 80kgf 100kgf brushed dc metal gear motor
Description

Speed Adjustable 60MM Gear Box 12v 24v 24 V 100 Rpm 50 Rpm 70rpm 75watt 60w 50w 80kgf 100kgf Brushed Dc Metal Gear Motor

Products Description

Speed adjustable 60MM gear box 12v 24v 24 v 100 rpm 50 rpm 70rpm 75 watt 60w 50w 80kgf 100kgf brushed dc metal gear motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 6000 1030 4800 4.00 60.19 30.25 63.11 180.57 29.40
ZY5078 12 6500 1300 5200 4.98 69.52 37.85 63.30 208.56 36.40
ZY5078 24 5000 470 4000 1.68 60.35 25.28 62.54 181.05 11.75
ZY5078 24 6000 610 4800 2.19 67.39 33.87 64.57 202.17 15.25
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-6000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 827.6 24.50 282.77 848.32 896.6 30.66 326.60 979.81
28.5 81 6.8 705.9 24.50 331.53 994.58 764.7 30.66 382.92 1148.75
28.5 81 7.9 607.6 24.50 385.16 1155.47 658.2 30.66 444.86 1334.58
28.5 81 8.8 545.5 24.50 429.03 1287.10 590.9 30.66 495.54 1486.62
28.5 81 9.8 489.8 24.50 477.79 1433.36 530.6 30.66 551.85 1655.55
28.5 81 10.5 457.1 24.50 511.92 1535.75 495.2 30.66 591.27 1773.80
28.5 81 11.6 413.8 24.50 565.55 1696.64 448.3 30.66 653.21 1959.63
33.5 73 18.6 258.1 22.08 817.26 2451.78 279.6 27.63 943.94 2831.83
33.5 73 24.0 200.0 22.08 1054.53 3163.59 216.7 27.63 1217.99 3653.97
33.5 73 28.0 171.4 22.08 1230.28 3690.85 185.7 27.63 1420.99 4262.97
33.5 73 33.6 142.9 22.08 1476.34 4429.02 154.8 27.63 1705.19 5115.56
36 65.6 60.0 80.0 19.85 2369.08 7107.24 86.7 24.83 2736.31 8208.92
36 65.6 71.0 67.6 19.85 2803.41 8410.23 73.2 24.83 3237.96 9713.89
36 65.6 83.0 57.8 19.85 3277.23 9831.68 62.7 24.83 3785.22 11355.67
36 65.6 91.0 52.7 19.85 3593.10 10779.31 57.1 24.83 4150.07 12450.20
36 65.6 100.0 48.0 19.85 3948.46 11845.39 52.0 24.83 4560.51 13681.54
36 65.6 108.0 44.4 19.85 4264.34 12793.02 48.1 24.83 4925.35 14776.06
36 65.6 118.0 40.7 19.85 4659.19 13977.56 44.1 24.83 5381.40 15000.00
40 59 191.0 25.1 17.85 6782.81 15000.00 27.2 22.33 7834.21 15000.00
40 59 226.0 21.2 17.85 8025.73 15000.00 23.0 22.33 9269.80 15000.00
40 59 265.0 18.1 17.85 9410.71 15000.00 19.6 22.33 10869.45 15000.00
40 59 288.0 16.7 17.85 10227.48 15000.00 18.1 22.33 11812.84 15000.00
40 59 345.0 13.9 17.85 12251.67 15000.00 15.1 22.33 14150.80 15000.00
40 59 379.0 12.7 17.85 13459.09 15000.00 13.7 22.33 15000.00 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 689.7 20.47 283.52 850.57 827.6 27.44 316.60 949.79
28.5 81 6.8 588.2 20.47 332.41 997.22 705.9 27.44 371.18 1113.55
28.5 81 7.9 506.3 20.47 386.18 1158.54 607.6 27.44 431.23 1293.69
28.5 81 8.8 454.5 20.47 430.17 1290.52 545.5 27.44 480.36 1441.07
28.5 81 9.8 408.2 20.47 479.06 1437.17 489.8 27.44 534.94 1604.83
28.5 81 10.5 381.0 20.47 513.28 1539.83 457.1 27.44 573.15 1719.46
28.5 81 11.6 344.8 20.47 567.05 1701.15 413.8 27.44 633.20 1899.59
33.5 73 18.6 215.1 18.45 819.43 2458.30 258.1 24.73 915.02 2745.06
33.5 73 24.0 166.7 18.45 1057.33 3172.00 200.0 24.73 1180.67 3542.02
33.5 73 28.0 142.9 18.45 1233.55 3700.66 171.4 24.73 1377.45 4132.35
33.5 73 33.6 119.0 18.45 1480.26 4440.79 142.9 24.73 1652.94 4958.83
36 65.6 60.0 66.7 16.58 2375.38 7126.13 80.0 22.22 2652.47 7957.41
36 65.6 71.0 56.3 16.58 2810.86 8432.58 67.6 22.22 3138.76 9416.27
36 65.6 83.0 48.2 16.58 3285.94 9857.81 57.8 22.22 3669.25 11007.75
36 65.6 91.0 44.0 16.58 3602.65 10807.96 52.7 22.22 4022.91 12068.74
36 65.6 100.0 40.0 16.58 3958.96 11876.88 48.0 22.22 4420.78 13262.35
36 65.6 108.0 37.0 16.58 4275.68 12827.03 44.4 22.22 4774.45 14323.34
36 65.6 118.0 33.9 16.58 4671.57 14014.72 40.7 22.22 5216.53 15000.00
40 59 191.0 20.9 14.91 6800.84 15000.00 25.1 19.98 7594.18 15000.00
40 59 226.0 17.7 14.91 8047.07 15000.00 21.2 19.98 8985.78 15000.00
40 59 265.0 15.1 14.91 9435.72 15000.00 18.1 19.98 10536.43 15000.00
40 59 288.0 13.9 14.91 10254.67 15000.00 16.7 19.98 11450.91 15000.00
40 59 345.0 11.6 14.91 12284.24 15000.00 13.9 19.98 13717.23 15000.00
40 59 379.0 10.6 14.91 13494.86 15000.00 12.7 19.98 15000.00 15000.00

2D drawing

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w


Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w

Please let us know your requirements and we will provide you with transmission solutions.

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w
