60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ60mm
Voltage :
12 or 24V
Speed :
8-800rpm
Torque :
10.5N.m
Gear material :
steel gear
Commutation :
Brush brushes
Type :
DC Spur Gear Motor mini motor
Usage :
kitchen appliances
Keywords :
Custom 60mm gearmotor 12000rpm rs 775 12v 24v 36v 2 rpm 60 rpm 15nm 10nm 80kg cm 20watts 30w 15w brushed dc gear motor
Description

Products Description

Custom 60mm gearmotor 12000rpm rs 775 12v 24v 36v 2 rpm 60 rpm 15nm 10nm 80kg cm 20watts 30w 15w brushed dc gear motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 689.7 10.72 148.46 445.37 965.5 18.05 178.52 535.57
28.5 81 6.8 588.2 10.72 174.05 522.16 823.5 18.05 209.30 627.91
28.5 81 7.9 506.3 10.72 202.21 606.63 708.9 18.05 243.16 729.49
28.5 81 8.8 454.5 10.72 225.24 675.73 636.4 18.05 270.86 812.59
28.5 81 9.8 408.2 10.72 250.84 752.52 571.4 18.05 301.64 904.93
28.5 81 10.5 381.0 10.72 268.76 806.27 533.3 18.05 323.19 969.57
28.5 81 11.6 344.8 10.72 296.91 890.74 482.8 18.05 357.05 1071.14
33.5 73 18.6 215.1 9.66 429.06 1287.19 301.1 16.27 515.96 1547.89
33.5 73 24.0 166.7 9.66 553.63 1660.90 233.3 16.27 665.76 1997.28
33.5 73 28.0 142.9 9.66 645.90 1937.71 200.0 16.27 776.72 2330.16
33.5 73 33.6 119.0 9.66 775.08 2325.25 166.7 16.27 932.06 2796.19
36 65.6 60.0 66.7 8.68 1243.78 3731.33 93.3 14.62 1495.68 4487.04
36 65.6 71.0 56.3 8.68 1471.80 4415.40 78.9 14.62 1769.89 5309.66
36 65.6 83.0 48.2 8.68 1720.56 5161.67 67.5 14.62 2069.02 6207.07
36 65.6 91.0 44.0 8.68 1886.39 5659.18 61.5 14.62 2268.45 6805.34
36 65.6 100.0 40.0 8.68 2072.96 6218.88 56.0 14.62 2492.80 7478.40
36 65.6 108.0 37.0 8.68 2238.80 6716.39 51.9 14.62 2692.22 8076.67
36 65.6 118.0 33.9 8.68 2446.09 7338.28 47.5 14.62 2941.50 8824.51
40 59 191.0 20.9 7.81 3561.00 10683.01 29.3 13.15 4282.22 12846.66
40 59 226.0 17.7 7.81 4213.54 12640.63 24.8 13.15 5066.92 15000.00
40 59 265.0 15.1 7.81 4940.66 14821.98 21.1 13.15 5941.30 15000.00
40 59 288.0 13.9 7.81 5369.47 15000.00 19.4 13.15 6456.96 15000.00
40 59 345.0 11.6 7.81 6432.18 15000.00 16.2 13.15 7734.90 15000.00
40 59 379.0 10.6 7.81 7066.08 15000.00 14.8 13.15 8497.18 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 482.8 7.01 138.59 415.77 689.7 10.52 145.64 436.91
28.5 81 6.8 411.8 7.01 162.49 487.46 588.2 10.52 170.75 512.24
28.5 81 7.9 354.4 7.01 188.77 566.31 506.3 10.52 198.37 595.11
28.5 81 8.8 318.2 7.01 210.28 630.83 454.5 10.52 220.97 662.90
28.5 81 9.8 285.7 7.01 234.17 702.51 408.2 10.52 246.08 738.23
28.5 81 10.5 266.7 7.01 250.90 752.69 381.0 10.52 263.66 790.97
28.5 81 11.6 241.4 7.01 277.18 831.55 344.8 10.52 291.28 873.83
33.5 73 18.6 150.5 6.31 400.55 1201.65 215.1 9.48 420.92 1262.75
33.5 73 24.0 116.7 6.31 516.84 1550.52 166.7 9.48 543.12 1629.36
33.5 73 28.0 100.0 6.31 602.98 1808.94 142.9 9.48 633.64 1900.92
33.5 73 33.6 83.3 6.31 723.58 2170.73 119.0 9.48 760.37 2281.10
36 65.6 60.0 46.7 5.67 1161.12 3483.36 66.7 8.52 1220.16 3660.48
36 65.6 71.0 39.4 5.67 1373.99 4121.98 56.3 8.52 1443.86 4331.57
36 65.6 83.0 33.7 5.67 1606.22 4818.65 48.2 8.52 1687.89 5063.66
36 65.6 91.0 30.8 5.67 1761.03 5283.10 44.0 8.52 1850.58 5551.73
36 65.6 100.0 28.0 5.67 1935.20 5805.60 40.0 8.52 2033.60 6100.80
36 65.6 108.0 25.9 5.67 2090.02 6270.05 37.0 8.52 2196.29 6588.86
36 65.6 118.0 23.7 5.67 2283.54 6850.61 33.9 8.52 2399.65 7198.94
40 59 191.0 14.7 5.10 3324.36 9973.07 20.9 7.66 3493.39 10480.17
40 59 226.0 12.4 5.10 3933.53 11800.59 17.7 7.66 4133.54 12400.62
40 59 265.0 10.6 5.10 4612.33 13836.98 15.1 7.66 4846.85 14540.55
40 59 288.0 9.7 5.10 5012.64 15000.00 13.9 7.66 5267.52 15000.00
40 59 345.0 8.1 5.10 6004.73 15000.00 11.6 7.66 6310.05 15000.00
40 59 379.0 7.4 5.10 6596.50 15000.00 10.6 7.66 6931.91 15000.00

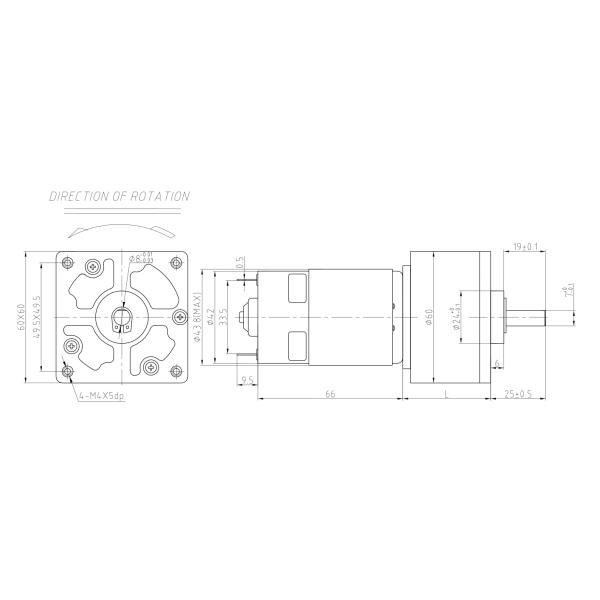

2D drawing

60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v


60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v

Please let us know your requirements and we will provide you with transmission solutions.

60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v

60mm 12000rpm 10nm Brushed Dc Gear Motor 30w 15w Rs 775 12v 24v
