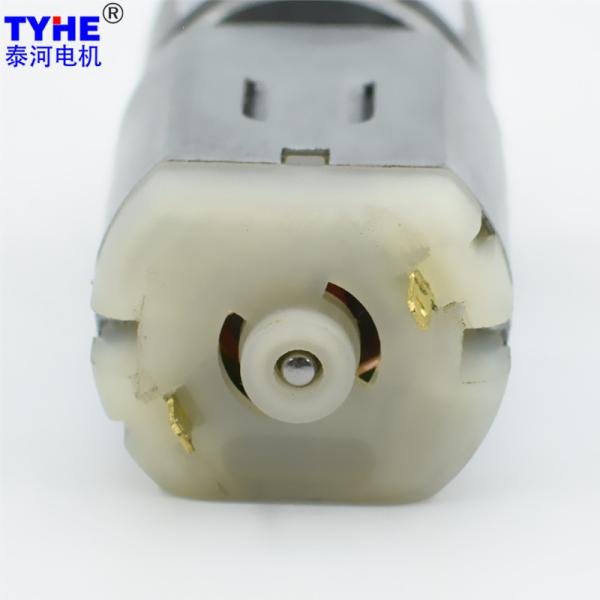

OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
Specifications
Brand Name :
TYHE
Model Number :
TJX22RD
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D22mm
Voltage :
3v 6v 12v 24v or customized
Speed :
5~1500rpm or Customized
Torque :
2N.m or Customized
Gear material :
Steel gears
Commutation :
brushes brush
Type :
DC Planetary Gear Motor, DC Mini Motor
Keywords :
OEM D22mm gear box 24v 14.4v 7.2v 1400rpm 30rpm 60 rpm big torque 20kgf 1.5nm 3w 4w 5w dc PMDC planetary gear motors for robotic
Description

Products Description

OEM D22mm gear box 24v 14.4v 7.2v 1400rpm 30rpm 60 rpm big torque 20kgf 1.5nm 3w 4w 5w dc PMDC planetary gear motors for robotic

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
F280 12 6800 30 5440 0.10 1.30 0.74 61.71 3.90 0.60
F280 12 8000 60 6400 0.15 1.65 1.11 61.43 4.95 2.00
F280 12 12000 120 9600 0.38 2.82 2.83 62.17 8.46 2.67
F280 24 6800 20 5440 0.05 1.35 0.77 60.46 4.05 0.41
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-6800RPM Input 12V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
13 90 3.5 1554.3 0.67 4.10 12.29 1828.6 1.00 5.20 15.59
13 90 4.0 1360.0 0.67 4.68 14.04 1600.0 1.00 5.94 17.82
13 90 4.8 1145.3 0.67 5.56 16.67 1347.4 1.00 7.05 21.16
16.6 81 12.3 442.3 0.60 12.95 38.86 520.3 0.90 16.44 49.32
16.6 81 14.0 388.6 0.60 14.74 44.23 457.1 0.90 18.71 56.13
16.6 81 16.0 340.0 0.60 16.85 50.54 400.0 0.90 21.38 64.15
16.6 81 19.0 286.3 0.60 20.01 60.02 336.8 0.90 25.39 76.18
16.6 81 22.6 240.7 0.60 23.80 71.39 283.2 0.90 30.20 90.61
20.2 73 42.9 126.8 0.54 40.71 122.14 149.2 0.81 51.67 155.02
20.2 73 49.0 111.0 0.54 46.50 139.50 130.6 0.81 59.02 177.06
20.2 73 56.0 97.1 0.54 53.14 159.43 114.3 0.81 67.45 202.36
20.2 73 64.0 85.0 0.54 60.74 182.21 100.0 0.81 77.09 231.26
20.2 73 79.0 68.9 0.54 74.97 224.91 81.0 0.81 95.16 285.47
20.2 73 90.3 60.2 0.54 85.69 257.08 70.9 0.81 108.77 326.30
20.2 73 107.0 50.8 0.54 101.54 304.63 59.8 0.81 128.88 386.64
23.8 65.6 150.0 36.3 0.49 127.92 383.76 42.7 0.73 162.36 487.08
23.8 65.6 172.0 31.6 0.49 146.68 440.04 37.2 0.73 186.17 558.52
23.8 65.6 196.0 27.8 0.49 167.15 501.45 32.7 0.73 212.15 636.45
23.8 65.6 204.0 26.7 0.49 173.97 521.91 31.4 0.73 220.81 662.43
23.8 65.6 224.0 24.3 0.49 191.03 573.08 28.6 0.73 242.46 727.37
23.8 65.6 256.0 21.3 0.49 218.32 654.95 25.0 0.73 277.09 831.28
23.8 65.6 276.0 19.7 0.49 235.37 706.12 23.2 0.73 298.74 896.23
23.8 65.6 304.0 17.9 0.49 259.25 777.75 21.1 0.73 329.05 987.15
23.8 65.6 361.0 15.1 0.49 307.86 923.58 17.7 0.73 390.75 1172.24
23.8 65.6 375.0 14.5 0.49 319.80 959.40 17.1 0.73 405.90 1217.70
23.8 65.6 429.0 12.7 0.49 365.85 1097.55 14.9 0.73 464.35 1393.05
23.8 65.6 509.0 10.7 0.49 434.08 1302.23 12.6 0.73 550.94 1652.82
27.2 59 525.0 10.4 0.44 402.68 1208.03 12.2 0.65 511.09 1533.26
27.2 59 600.0 9.1 0.44 460.20 1380.60 10.7 0.65 584.10 1752.30
27.2 59 686.0 7.9 0.44 526.16 1578.49 9.3 0.65 667.82 1800.00
27.2 59 713.0 7.6 0.44 546.87 1640.61 9.0 0.65 694.11 1800.00
27.2 59 784.0 6.9 0.44 601.33 1800.00 8.2 0.65 763.22 1800.00
27.2 59 896.0 6.1 0.44 687.23 1800.00 7.1 0.65 872.26 1800.00
27.2 59 931.0 5.8 0.44 714.08 1800.00 6.9 0.65 906.33 1800.00
27.2 59 967.0 5.6 0.44 741.69 1800.00 6.6 0.65 941.37 1800.00
27.2 59 1024.0 5.3 0.44 785.41 1800.00 6.3 0.65 996.86 1800.00
27.2 59 1106.0 4.9 0.44 848.30 1800.00 5.8 0.65 1076.69 1800.00
27.2 59 1216.0 4.5 0.44 932.67 1800.00 5.3 0.65 1183.78 1800.00
27.2 59 1264.0 4.3 0.44 969.49 1800.00 5.1 0.65 1230.50 1800.00
27.2 59 1313.0 4.1 0.44 1007.07 1800.00 4.9 0.65 1278.21 1800.00
27.2 59 1444.0 3.8 0.44 1107.55 1800.00 4.4 0.65 1405.73 1800.00
27.2 59 1715.0 3.2 0.44 1315.41 1800.00 3.7 0.65 1669.55 1800.00
27.2 59 1782.0 3.1 0.44 1366.79 1800.00 3.6 0.65 1734.78 1800.00
27.2 59 2036.0 2.7 0.44 1561.61 1800.00 3.1 0.65 1800.00 1800.00
27.2 59 2418.0 2.2 0.44 1800.00 1800.00 2.6 0.65 1800.00 1800.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-12000RPM Input 24V-6800RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
13 90 3.5 2742.9 2.55 8.88 26.65 1554.3 0.69 4.25 12.76
13 90 4.0 2400.0 2.55 10.15 30.46 1360.0 0.69 4.86 14.58
13 90 4.8 2021.1 2.55 12.06 36.17 1145.3 0.69 5.77 17.31
16.6 81 12.3 780.5 2.30 28.10 84.29 442.3 0.62 13.45 40.35
16.6 81 14.0 685.7 2.30 31.98 95.94 388.6 0.62 15.31 45.93
16.6 81 16.0 600.0 2.30 36.55 109.64 340.0 0.62 17.50 52.49
16.6 81 19.0 505.3 2.30 43.40 130.20 286.3 0.62 20.78 62.33
16.6 81 22.6 424.8 2.30 51.62 154.87 240.7 0.62 24.71 74.14
20.2 73 42.9 223.8 2.07 88.31 264.94 126.8 0.56 42.28 126.83
20.2 73 49.0 195.9 2.07 100.87 302.61 111.0 0.56 48.29 144.87
20.2 73 56.0 171.4 2.07 115.28 345.84 97.1 0.56 55.19 165.56
20.2 73 64.0 150.0 2.07 131.75 395.25 85.0 0.56 63.07 189.22
20.2 73 79.0 121.5 2.07 162.63 487.89 68.9 0.56 77.85 233.56
20.2 73 90.3 106.3 2.07 185.89 557.67 60.2 0.56 88.99 266.97
20.2 73 107.0 89.7 2.07 220.27 660.81 50.8 0.56 105.45 316.35
23.8 65.6 150.0 64.0 1.86 277.49 832.46 36.3 0.50 132.84 398.52
23.8 65.6 172.0 55.8 1.86 318.19 954.56 31.6 0.50 152.32 456.97
23.8 65.6 196.0 49.0 1.86 362.58 1087.75 27.8 0.50 173.58 520.73
23.8 65.6 204.0 47.1 1.86 377.38 1132.15 26.7 0.50 180.66 541.99
23.8 65.6 224.0 42.9 1.86 414.38 1243.15 24.3 0.50 198.37 595.12
23.8 65.6 256.0 37.5 1.86 473.58 1420.74 21.3 0.50 226.71 680.14
23.8 65.6 276.0 34.8 1.86 510.58 1531.73 19.7 0.50 244.43 733.28
23.8 65.6 304.0 31.6 1.86 562.38 1687.13 17.9 0.50 269.22 807.67
23.8 65.6 361.0 26.6 1.86 667.82 1800.00 15.1 0.50 319.70 959.10
23.8 65.6 375.0 25.6 1.86 693.72 1800.00 14.5 0.50 332.10 996.30
23.8 65.6 429.0 22.4 1.86 793.62 1800.00 12.7 0.50 379.92 1139.77
23.8 65.6 509.0 18.9 1.86 941.61 1800.00 10.7 0.50 450.77 1352.31
27.2 59 525.0 18.3 1.67 873.50 1800.00 10.4 0.45 418.16 1254.49
27.2 59 600.0 16.0 1.67 998.28 1800.00 9.1 0.45 477.90 1433.70
27.2 59 686.0 14.0 1.67 1141.37 1800.00 7.9 0.45 546.40 1639.20
27.2 59 713.0 13.5 1.67 1186.29 1800.00 7.6 0.45 567.90 1703.71
27.2 59 784.0 12.2 1.67 1304.42 1800.00 6.9 0.45 624.46 1800.00
27.2 59 896.0 10.7 1.67 1490.76 1800.00 6.1 0.45 713.66 1800.00
27.2 59 931.0 10.3 1.67 1549.00 1800.00 5.8 0.45 741.54 1800.00
27.2 59 967.0 9.9 1.67 1608.89 1800.00 5.6 0.45 770.22 1800.00
27.2 59 1024.0 9.4 1.67 1703.73 1800.00 5.3 0.45 815.62 1800.00
27.2 59 1106.0 8.7 1.67 1800.00 1800.00 4.9 0.45 880.93 1800.00
27.2 59 1216.0 7.9 1.67 1800.00 1800.00 4.5 0.45 968.54 1800.00
27.2 59 1264.0 7.6 1.67 1800.00 1800.00 4.3 0.45 1006.78 1800.00
27.2 59 1313.0 7.3 1.67 1800.00 1800.00 4.1 0.45 1045.80 1800.00
27.2 59 1444.0 6.6 1.67 1800.00 1800.00 3.8 0.45 1150.15 1800.00
27.2 59 1715.0 5.6 1.67 1800.00 1800.00 3.2 0.45 1366.00 1800.00
27.2 59 1782.0 5.4 1.67 1800.00 1800.00 3.1 0.45 1419.36 1800.00
27.2 59 2036.0 4.7 1.67 1800.00 1800.00 2.7 0.45 1621.67 1800.00
27.2 59 2418.0 4.0 1.67 1800.00 1800.00 2.2 0.45 1800.00 1800.00

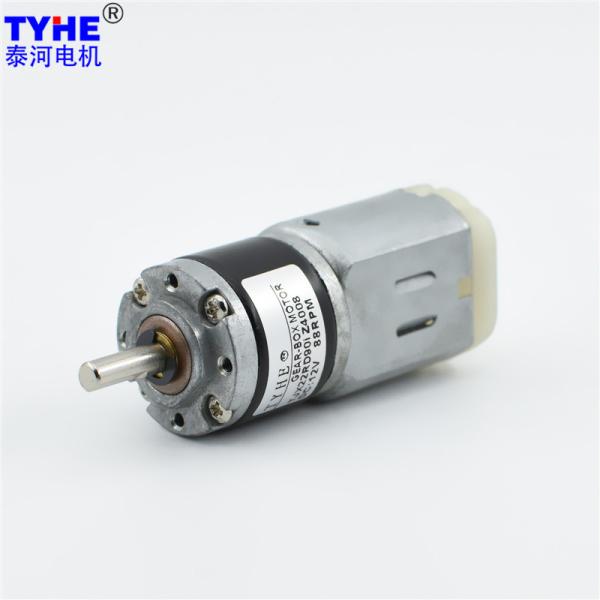

2D drawing

OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic


OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic

Please let us know your requirements and we will provide you with transmission solutions.
