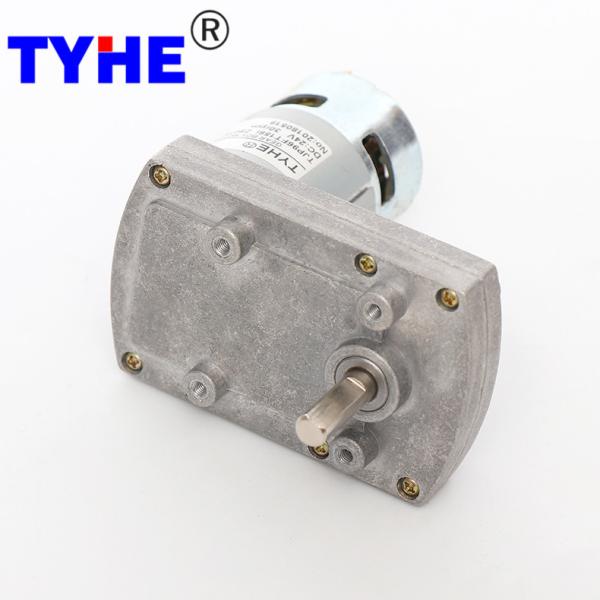

5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper
Specifications
Brand Name :
TYHE
Model Number :
TJP96FT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
96mm*60mm
Voltage :
6v 12v 18v 24v or customized
Speed :
5-230rpm Customized
Torque :
5.0N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brushed
Type :
Flat Gear Motor
Keywords :
Manufacturer sgmada 96*60mm gearhead 12v 24v 5000rpm 775 40w 35 watt 50kgfcm 5nm 40kgcm dc geared motor for vegetable chopper
Description

Products Description

Manufacturer sgmada 96*60mm gearhead 12v 24v 5000rpm 775 40w 35 watt 50kgfcm 5nm 40kgcm dc geared motor for vegetable chopper

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
RS775 24 5500 260 4400 0.96 31.50 14.51 63.21 94.50 6.80
RS775 24 6500 400 5200 1.46 41.00 22.32 63.78 123.00 10.30
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 93.5 9.66 987.31 2961.93 130.8 16.27 1187.27 3561.82
96 73 46.3 86.4 9.66 1068.05 3204.15 121.0 16.27 1284.36 3853.09
96 73 77.8 51.4 9.66 1794.69 5384.07 72.0 16.27 2158.17 6474.52
96 65.6 156.0 25.6 8.68 3233.82 9701.45 35.9 14.62 3888.77 11666.30
96 65.6 197.0 20.3 8.68 4083.73 12251.19 28.4 14.62 4910.82 14732.45
96 65.6 254.0 15.7 8.68 5265.32 15000.00 22.0 14.62 6331.71 15000.00
96 65.6 297.0 13.5 8.68 6156.69 15000.00 18.9 14.62 7403.62 15000.00
96 65.6 327.0 12.2 8.68 6778.58 15000.00 17.1 14.62 8151.46 15000.00
96 59 653.0 6.1 7.81 12174.53 15000.00 8.6 13.15 14640.26 15000.00
96 59 826.0 4.8 7.81 15000.00 15000.00 6.8 13.15 15000.00 15000.00
96 59 1067.0 3.7 7.81 15000.00 15000.00 5.2 13.15 15000.00 15000.00
96 59 1247.0 3.2 7.81 15000.00 15000.00 4.5 13.15 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 65.4 6.31 921.70 2765.09 93.5 9.48 968.56 2905.69
96 73 46.3 60.5 6.31 997.07 2991.21 86.4 9.48 1047.77 3143.31
96 73 77.8 36.0 6.31 1675.42 5026.27 51.4 9.48 1760.61 5281.84
96 65.6 156.0 17.9 5.67 3018.91 9056.74 25.6 8.52 3172.42 9517.25
96 65.6 197.0 14.2 5.67 3812.34 11437.03 20.3 8.52 4006.19 12018.58
96 65.6 254.0 11.0 5.67 4915.41 14746.22 15.7 8.52 5165.34 15000.00
96 65.6 297.0 9.4 5.67 5747.54 15000.00 13.5 8.52 6039.79 15000.00
96 65.6 327.0 8.6 5.67 6328.10 15000.00 12.2 8.52 6649.87 15000.00
96 59 653.0 4.3 5.10 11365.47 15000.00 6.1 7.66 11943.37 15000.00
96 59 826.0 3.4 5.10 14376.53 15000.00 4.8 7.66 15000.00 15000.00
96 59 1067.0 2.6 5.10 15000.00 15000.00 3.7 7.66 15000.00 15000.00
96 59 1247.0 2.2 5.10 15000.00 15000.00 3.2 7.66 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5500RPM Input 24V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 102.8 10.59 984.19 2952.56 121.5 16.30 1281.00 3843.01
96 73 46.3 95.0 10.59 1064.67 3194.01 112.3 16.30 1385.76 4157.28
96 73 77.8 56.6 10.59 1789.01 5367.03 66.8 16.30 2328.55 6985.66
96 65.6 156.0 28.2 9.52 3223.58 9670.75 33.3 14.64 4195.78 12587.33
96 65.6 197.0 22.3 9.52 4070.81 12212.42 26.4 14.64 5298.51 15000.00
96 65.6 254.0 17.3 9.52 5248.66 15000.00 20.5 14.64 6831.58 15000.00
96 65.6 297.0 14.8 9.52 6137.21 15000.00 17.5 14.64 7988.11 15000.00
96 65.6 327.0 13.5 9.52 6757.13 15000.00 15.9 14.64 8794.99 15000.00
96 59 653.0 6.7 8.56 12136.01 15000.00 8.0 13.17 15000.00 15000.00
96 59 826.0 5.3 8.56 15000.00 15000.00 6.3 13.17 15000.00 15000.00
96 59 1067.0 4.1 8.56 15000.00 15000.00 4.9 13.17 15000.00 15000.00
96 59 1247.0 3.5 8.56 15000.00 15000.00 4.2 13.17 15000.00 15000.00

2D drawing

5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper


5000rpm 35 Watt 5nm Dc Geared Motor For Vegetable Chopper

Please let us know your requirements and we will provide you with transmission solutions.
