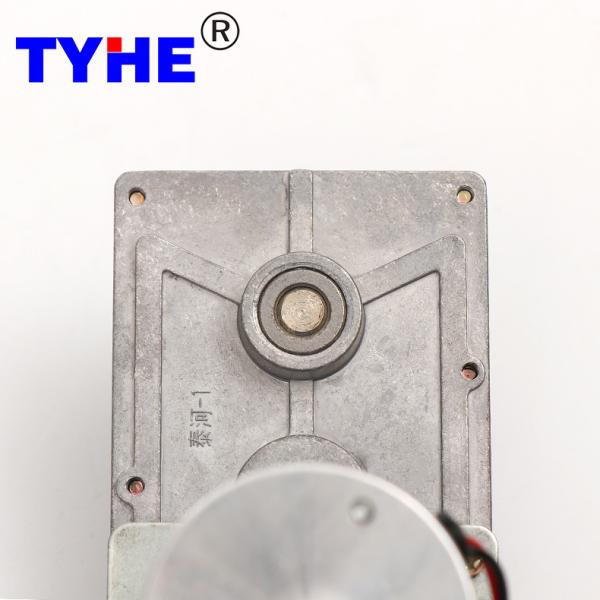

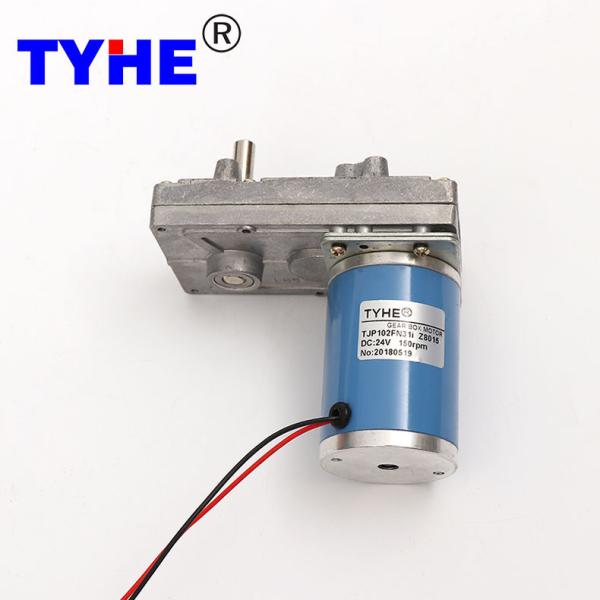

1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine
Specifications
Brand Name :
TYHE
Model Number :
TJP102FN
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
102mm*60mm
Voltage :
3v 6v 12v 24v customized
Speed :
5-500rpm Customized
Torque :
5.0N.m
Gear material :
Steel gears
Commutation :
Brushed
Type :
Flat Gear Motor
Keywords :
High quality 102*96mm gearbox 12v 24v 1000rpm 100kg cm torque 5 rpm 150 rpm 30 watt dc gear reduction motor for vending machine
Description

Products Description

High quality 102*96mm gearbox 12v 24v 1000rpm 100kg cm torque 5 rpm 30 watt dc gear reduction motor for vending machine

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY4564 12 3500 300 2800 1.08 27.50 8.06 62.50 82.50 7.50
ZY4564 12 5100 610 4080 2.19 38.00 16.23 61.89 114.00 15.25
ZY4564 12 6000 1100 4800 3.94 60.00 30.16 63.76 180.00 27.50
ZY4564 24 4500 280 3600 1.00 40.00 15.08 62.62 120.00 7.00
ZY4564 24 6000 500 4800 1.92 59.80 30.06 65.34 179.40 14.00
ZY4564 24 7000 570 5600 2.23 57.00 33.42 62.38 171.00 16.53
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-3500RPM Input 12V-5100RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 121.7 5.89 461.73 1385.18 177.4 11.85 638.02 1914.06
102 73 31.5 88.9 5.89 632.36 1897.09 129.5 11.85 873.81 2621.43
102 73 57.0 49.1 5.89 1144.28 3432.83 71.6 11.85 1581.18 4743.54
102 73 80.0 35.0 5.89 1606.00 4818.00 51.0 11.85 2219.20 6657.60
102 73 108.0 25.9 5.89 2168.10 6504.30 37.8 11.85 2995.92 8987.76
102 73 127.0 22.0 5.89 2549.53 7648.58 32.1 11.85 3522.98 10568.94
102 59 198.0 14.1 4.76 3212.55 9637.65 20.6 9.58 4439.16 13317.48
102 59 234.0 12.0 4.76 3796.65 11389.95 17.4 9.58 5246.28 15000.00
102 59 272.0 10.3 4.76 4413.20 13239.60 15.0 9.58 6098.24 15000.00
102 59 322.0 8.7 4.76 5224.45 15000.00 12.7 9.58 7219.24 15000.00
102 59 374.0 7.5 4.76 6068.15 15000.00 10.9 9.58 8385.08 15000.00
102 59 443.0 6.3 4.76 7187.68 15000.00 9.2 9.58 9932.06 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-6000RPM Input 24V-4500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 208.7 22.01 1007.40 3022.20 156.5 11.01 671.60 2014.80
102 73 31.5 152.4 22.01 1379.70 4139.10 114.3 11.01 919.80 2759.40
102 73 57.0 84.2 22.01 2496.60 7489.80 63.2 11.01 1664.40 4993.20
102 73 80.0 60.0 22.01 3504.00 10512.00 45.0 11.01 2336.00 7008.00
102 73 108.0 44.4 22.01 4730.40 14191.20 33.3 11.01 3153.60 9460.80
102 73 127.0 37.8 22.01 5562.60 15000.00 28.3 11.01 3708.40 11125.20
102 59 198.0 24.2 17.79 7009.20 15000.00 18.2 8.90 4672.80 14018.40
102 59 234.0 20.5 17.79 8283.60 15000.00 15.4 8.90 5522.40 15000.00
102 59 272.0 17.6 17.79 9628.80 15000.00 13.2 8.90 6419.20 15000.00
102 59 322.0 14.9 17.79 11398.80 15000.00 11.2 8.90 7599.20 15000.00
102 59 374.0 12.8 17.79 13239.60 15000.00 9.6 8.90 8826.40 15000.00
102 59 443.0 10.8 17.79 15000.00 15000.00 8.1 8.90 10454.80 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-6000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 208.7 21.94 1004.04 3012.13 243.5 24.40 957.03 2871.09
102 73 31.5 152.4 21.94 1375.10 4125.30 177.8 24.40 1310.72 3932.15
102 73 57.0 84.2 21.94 2488.28 7464.83 98.2 24.40 2371.77 7115.31
102 73 80.0 60.0 21.94 3492.32 10476.96 70.0 24.40 3328.80 9986.40
102 73 108.0 44.4 21.94 4714.63 14143.90 51.9 24.40 4493.88 13481.64
102 73 127.0 37.8 21.94 5544.06 15000.00 44.1 24.40 5284.47 15000.00
102 59 198.0 24.2 17.73 6985.84 15000.00 28.3 19.72 6658.74 15000.00
102 59 234.0 20.5 17.73 8255.99 15000.00 23.9 19.72 7869.42 15000.00
102 59 272.0 17.6 17.73 9596.70 15000.00 20.6 19.72 9147.36 15000.00
102 59 322.0 14.9 17.73 11360.80 15000.00 17.4 19.72 10828.86 15000.00
102 59 374.0 12.8 17.73 13195.47 15000.00 15.0 19.72 12577.62 15000.00
102 59 443.0 10.8 17.73 15000.00 15000.00 12.6 19.72 14898.09 15000.00

2D drawing

1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine


1000rpm Flat Gear Motor 12v Dc Gear Reduction Motor For Vending Machine

Please let us know your requirements and we will provide you with transmission solutions.
