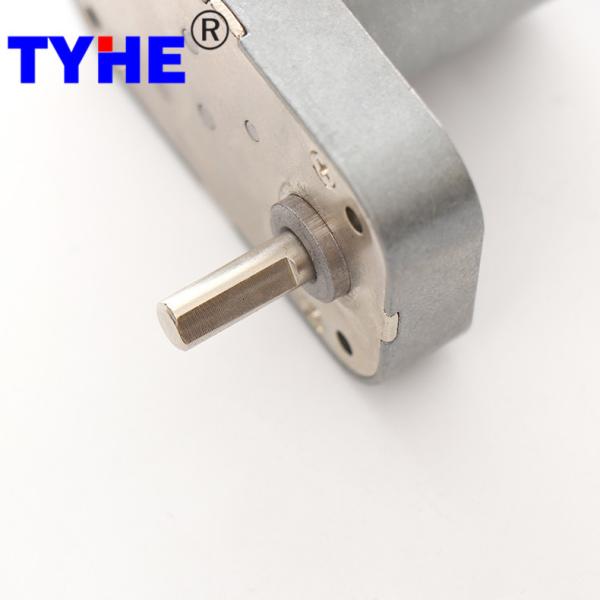

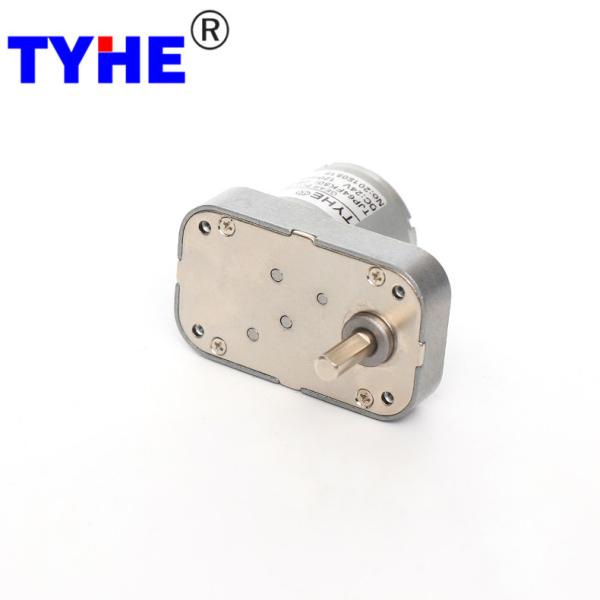

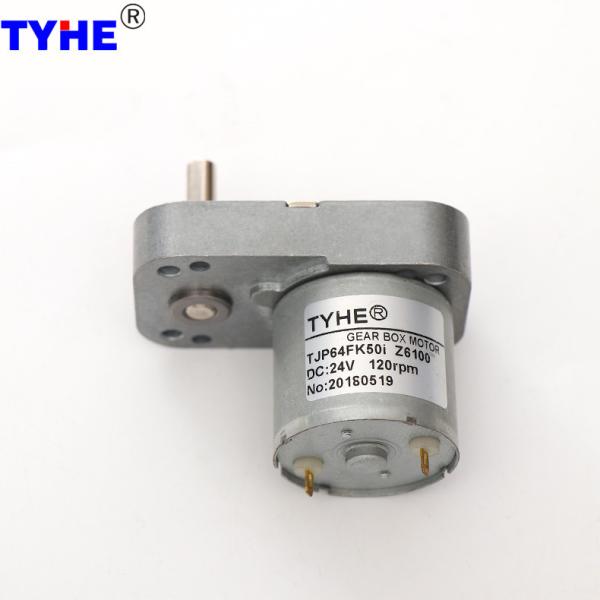

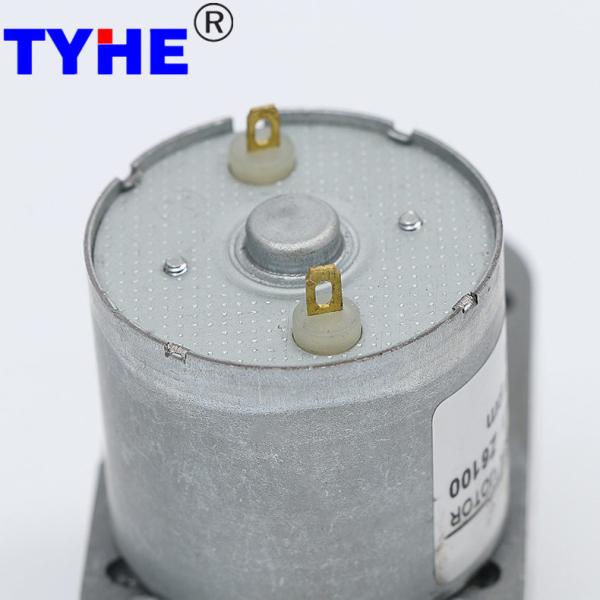

3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
Specifications
Brand Name :
TYHE
Model Number :
TJP64FK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
64mm*38mm
Voltage :
1.5v 3v 6v 12v 24v or customized
Speed :
50-300rpm Customized
Torque :
1N.m
Gear material :
Powder metallurgy
Commutation :
brushed
Type :
Flat Gear Motor
Keywords :
Low noise 64*38mm right angle gearmotor 3 volt 5v 6v 12 volt 3kgcm 1kgcm torque PMDC dc flat gear motor for valve
Description

Products Description

Low noise 64*38mm right angle gearmotor 3 volt 5v 6v 12 volt 3kgcm 1kgcm torque PMDC dc flat gear motor for valve

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.23 3.81 1.76 62.69 11.43 1.72
ZY3530 12 6500 65 5200 0.31 4.18 2.28 61.18 12.54 2.00
ZY3530 12 7300 67 5840 0.36 4.35 2.66 61.78 13.05 3.10
ZY3530 12 9000 90 7200 0.43 4.31 3.25 63.47 12.93 3.50
ZY3530 12 10000 110 8000 0.52 4.57 3.83 61.95 13.71 4.20
ZY3530 12 12000 127 9600 0.84 6.14 6.17 61.20 18.42 7.80
ZY3530 24 3500 14 2800 0.06 3.17 0.93 62.63 9.51 0.49
ZY3530 24 5200 22 4160 0.11 4.01 1.75 63.47 12.03 0.98
ZY3530 24 6200 31 4960 0.14 4.12 2.14 62.64 12.36 1.15
ZY3530 24 7300 35 5840 0.19 4.47 2.73 61.29 13.41 1.60
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 214.6 1.28 57.02 171.05 253.7 1.66 62.55 187.66
64 73 25.1 175.3 1.28 69.81 209.43 207.2 1.66 76.59 229.77
64 73 28.8 152.8 1.28 80.10 240.30 180.6 1.66 87.88 263.64
64 73 35.2 125.0 1.28 97.90 293.71 147.7 1.66 107.41 322.23
64 65.6 41.0 107.3 1.15 102.47 307.42 126.8 1.49 112.43 337.28
64 65.6 50.0 88.0 1.15 124.97 374.90 104.0 1.49 137.10 411.31
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-7300RPM Input 12V-9000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 284.9 1.94 65.10 195.29 351.2 2.37 64.50 193.50
64 73 25.1 232.7 1.94 79.71 239.12 286.9 2.37 78.97 236.92
64 73 28.8 202.8 1.94 91.45 274.36 250.0 2.37 90.61 271.84
64 73 35.2 165.9 1.94 111.78 335.33 204.5 2.37 110.75 332.25
64 65.6 41.0 142.4 1.75 117.00 350.99 175.6 2.13 115.92 347.77
64 65.6 50.0 116.8 1.75 142.68 428.04 144.0 2.13 141.37 424.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-10000RPM Input 12V-12000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 390.2 2.79 68.39 205.17 468.3 4.51 91.89 275.66
64 73 25.1 318.7 2.79 83.74 251.21 382.5 4.51 112.50 337.51
64 73 28.8 277.8 2.79 96.08 288.24 333.3 4.51 129.09 387.26
64 73 35.2 227.3 2.79 117.43 352.29 272.7 4.51 157.77 473.32
64 65.6 41.0 195.1 2.51 122.91 368.74 234.1 4.05 165.14 495.42
64 65.6 50.0 160.0 2.51 149.90 449.69 192.0 4.05 201.39 604.18
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 136.6 0.68 47.44 142.32 202.9 1.28 60.01 180.03
64 73 25.1 111.6 0.68 58.08 174.25 165.7 1.28 73.48 220.43
64 73 28.8 97.2 0.68 66.65 199.94 144.4 1.28 84.31 252.92
64 73 35.2 79.5 0.68 81.46 244.37 118.2 1.28 103.04 309.12
64 65.6 41.0 68.3 0.61 85.26 255.78 101.5 1.15 107.85 323.56
64 65.6 50.0 56.0 0.61 103.98 311.93 83.2 1.15 131.53 394.58
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6200RPM Input 24V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 242.0 1.56 61.66 184.97 284.9 2.00 66.89 200.68
64 73 25.1 197.6 1.56 75.49 226.47 232.7 2.00 81.90 245.71
64 73 28.8 172.2 1.56 86.62 259.86 202.8 2.00 93.98 281.93
64 73 35.2 140.9 1.56 105.87 317.60 165.9 2.00 114.86 344.58
64 65.6 41.0 121.0 1.40 110.81 332.43 142.4 1.79 120.23 360.68
64 65.6 50.0 99.2 1.40 135.14 405.41 116.8 1.79 146.62 439.85

2D drawing

3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve


3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve

Please let us know your requirements and we will provide you with transmission solutions.

3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve

3 Volt PMDC Flat Gear Motor Low Noise Right Angle Gearmotor For Valve
