Handheld / Bodypack UHF Wireless Microphone Transmitter Can Be Switched Freely
Handheld / Bodypack UHF Wireless Microphone Transmitter Can Be Switched Freely
Specifications
Brand Name :
GESTTON
Model Number :
AM500
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
3-7 days
Packaging Details :
Carton Box
Frequency Range :
Enhanced AF frequency range
Mic connect :
Transmitter Sync
Operating Range :
100M
Oscillation :
PLL synthesized
S/N :
＞105dB
T.H.D. :
＜0.7% @ 1KHz
Description

UHF Wireless Microphone Handheld or bodypack transmitter can be switched freely for each channel

Receiver Features

· Pilot tone squelch for eliminating RF interference when transmitter is turned off.

· Enhanced AF frequency range

· Built-in spectrum analyzer to auto scan and select a clear channel.

· Transmitter Sync.

· Pure aluminum alloy side plate design.

· 600 selectable frequencies, 32 preset clean channels

· OLED display screen delivers a bright, clear viewing in day/night environments.

· Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.

· Offers an exceptional value in both performance and price, for both working musicians and sound installers.

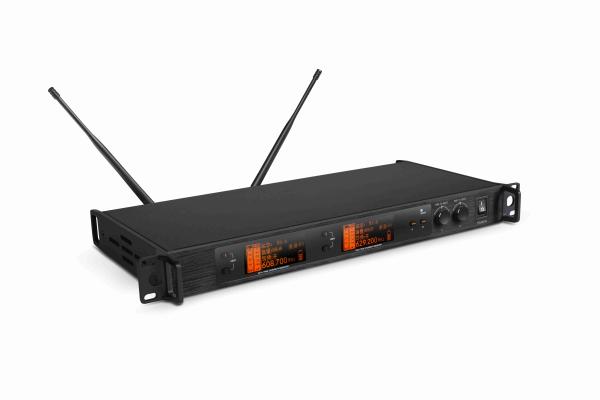

Receiver Parameter

Main Frame Size EIA-Standard 19" 1U
Channels Dual Channel
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Preset Channels 32 preset channels
Operating Range 90M typical ( in open space)
Oscillation PLL synthesized
Sensitivity 6dBμV, S/N>60dB at 25 deviation
Band Width 30MHz
Max. Deviation Range ±45KHz
S/N ＞105dB
T.H.D. ＜0.7% @ 1KHz
Frequency response 45Hz～18KHz±1dB
Squelch “PiloTone & NoiseLock” dual-squelch circuit
Power Supply 100-240V/AC50/60 Hz, 10W
Weight 2.7KG
Dimension 482(W) X 454(H) X 186(D) (mm)
Output Connector XLR balanced & 6.3φ phone jack unbalanced

Transmitter Parameter (Handheld)

Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Oscillation PLL synthesized
Harmonic radiation ＜-63dBm
Bandwidth 120MHz
Max. Deviation Range ±45KHz
Input Connector 4-pin mini-XLR connector
RF Power Output 3～30mW ( country dependent )
Battery AA X 1 alkaline
Current Consumption 60mA, typical
Battery Current / Life Min. 10 hours
Dimension 72(H) X 68(W) X 21(D) (mm)
Weight 71g ( w/o battery)

Handheld / Bodypack UHF Wireless Microphone Transmitter Can Be Switched Freely


Application

Suitable for Large-scale performances ,small and medium-sized performances, outdoor singing and speeches, KTV boxes, classrooms, gymnasiums, offices and government agencies
