Specifications
Brand Name :
GKF
Model Number :
GS-1
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
3-7days
Packaging Details :
Carton Box
Type :
cordless
Power :
100-240V
Operating Range :
90M typical ( in open space)
Oscillation :
PLL synthesized
Sensitivity :
6dBμV, S/N>60dB at 25 deviation
Band Width :
30MHz
Description

UHF Wireless Lavalier Lapel Microphone System/Headset Mic/Stand Mic, 165ft Range, Bietrun



Wireless microphone Features



• This UHF wireless microphone employs PLL frequency synthesized technology to provide highly stable,selectable frequencies,which ensures excellent sound quality and decreases drop-off.
• Infrared synchronization technology enhances frequency search and pairs up receiver and transmitter quickly.
* Exquisite metal pipe body
* Made of all-metal material, it not only looks delicate and exquisite, but also has a good touch, which can effectively reduce external magnetic interference and prevent rust, anti-magnetic and durable.
* High quality filter cover
* Double-layer high-quality mesh cover for effective filtering of airflow and saliva. Therefore, it provides excellent protection for the head, preventing cracking and tooth sound, and restores the clearestsound.

Wireless microphone Product Parameter

Main Frame Size

EIA-Standard 19" 1U

Channels Dual Channel
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Preset Channels 32 preset channels
Operating Range 100M typical ( in open space)
Oscillation PLL synthesized
Sensitivity 6dBμV, S/N>60dB at 25 deviation
Band Width 30MHz
Max. Deviation Range ±45KHz
S/N >105dB
T.H.D. <0.7% @ 1KHz
Frequency response 45Hz~18KHz±1dB
Squelch “PiloTone & NoiseLock” dual-squelch circuit
Power Supply 100-240V AC50/60 Hz, 10W
Weight 2KG
Dimension 480(W) X 195(H) X 45(D) (mm)
Receiver Output Connector XLR balanced & 6.3φ phone jack unbalanced

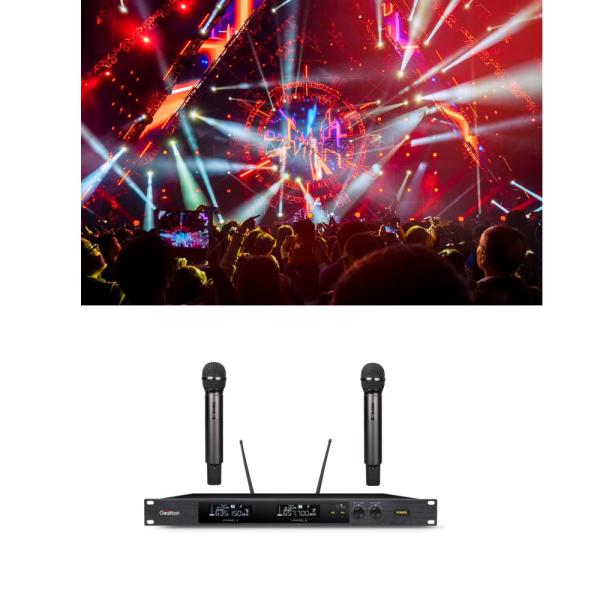

GS-1 High Quality Dual Channel Wireless Microphone for Stage Performance



• 1U standard cabinet design structure with metal shell, dual channel reception;

• automatic selective reception mode is adopted to minimize reception interruption;

• infrared data automatic synchronization function (sync);

• phase locked loop synthesis tuner (PLL) with the most stable characteristics can effectively block noisy RF interference in the environment;

• 600 UHF optional channels and 32 frequency groups that do not interfere with each other preset by the factory;

• LED screen, without viewing angle, can clearly display system data from any angle;

• balanced XLR output and unbalanced 6.3 (1 / 4 ") output;

• the transmitter adopts ultra wideband 120mhz, which is suitable for KTV boxes, school classrooms, multi-function halls and public broadcasting, with high requirements. It has the professional quality of easy installation, simple operation and stable characteristics.


Wireless Microphone Application



Suitable for Large-scale performances ,small and medium-sized performances, outdoor singing and speeches, KTV boxes, classrooms, gymnasiums, offices and government agencies
