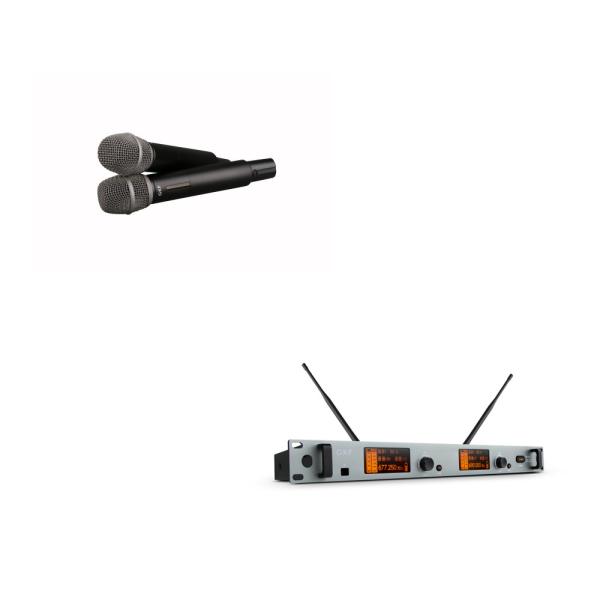

XLR Balanced DJ Karaoke UHF Wireless Microphone 6.3mm Unbalanced Outputs
XLR Balanced DJ Karaoke UHF Wireless Microphone 6.3mm Unbalanced Outputs
Specifications
Brand Name :
GESTTON
Model Number :
AM300
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
3-7 days
Packaging Details :
Carton Box
Suitable :
School, Speech
Oscillation :
PLL
Sensitivity :
6dBμV, S/N>60dB at 25 deviation
T.H.D. :
＜0.7% @ 1KHz
Weight :
2KG
Dimension :
482mmx454mmx186mm
Description

DJ Karaoke UHF Wireless Microphone Equipped With Both XLR Balanced And Ø6.3mm Unbalanced Outputs

Receiver Parameter

Frequency Stability ±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Preset Channels 32 preset channels
Operating Range 90M typical ( in open space)
Oscillation PLL synthesized
Sensitivity 6dBμV, S/N>60dB at 25 deviation
Max. Deviation Range ±45KHz
T.H.D. ＜0.7% @ 1KHz
Frequency response 45Hz～18KHz±1dB
Squelch “PiloTone & NoiseLock” dual-squelch circuit
Power Supply 100-240V/AC50/60 Hz, 10W
Weight 2KG
Dimension 482(W) X 454(H) X 186(D) (mm)
Output Connector XLR balanced & 6.3φ phone jack unbalanced

Transmitter Parameter (Handheld)

Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Oscillation PLL synthesized
Max. Deviation Range ±45KHz
Input Connector 4-pin mini-XLR connector
RF Power Output 3～30mW ( country dependent )
Battery AA X 1 alkaline
Dimension 72(H) X 68(W) X 21(D) (mm)
Weight 71g ( w/o battery)

Receiver Features

· Pilot tone squelch for eliminating RF interference when transmitter is turned off.

· Enhanced AF frequency range

· Built-in spectrum analyzer to scan and display interference frequency clearly.

· 600 selectable frequencies across 30MHz bandwidth.

· OLED display screen delivers a bright, clear viewing in day/night environments.

· Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.

Products Supply Scope

. Handheld system: 1* AM 300 receiver + 2* AH 300 handheld microphones

. Lavalier system: 1* AM 300 receiver + 2* AP 300 bodypack transmitters with lavalier microphone

. Headset system: 1* AM 300 receiver + 2* AP 300 bodypack transmitters with headset microphone

. 1 power supply unit

. 2 antennas

. 1 ¼” (6.3 mm) audio connecting cable

. 4 AA size batteries ( handheld system ) / 2 AA size batteries ( lavalier / headset system )

. Operating instructions.

XLR Balanced DJ Karaoke UHF Wireless Microphone 6.3mm Unbalanced Outputs

Transmitter Parameter (bodypack)

Carrier Frequency Range UHF 510-937 MHz ( country dependent )
Oscillation PLL synthesized
Harmonic radiation ＜-63dBm
Bandwidth 120MHz
Max. Deviation Range ±45KHz
Input Connector 4-pin mini-XLR connector
RF Power Output 3～30mW ( country dependent )
Battery AA X 1 alkaline
Current Consumption 60mA, typical
Battery Current / Life Min. 5 hours
Dimension 72(H) X 68(W) X 21(D) (mm)
Weight 71g ( w/o battery)


Application place

XLR Balanced DJ Karaoke UHF Wireless Microphone 6.3mm Unbalanced Outputs

OUR FACTORY

Gestton products are exported to dozens of countries overseas, with an annual output value of tens of millions. It is a well-known audio brand at home and abroad. Stable performance, reliable technical support, fast delivery and efficient after-sales service are our constant commitments to customers.

XLR Balanced DJ Karaoke UHF Wireless Microphone 6.3mm Unbalanced Outputs
