Specifications
Brand Name :
GESTTON
Model Number :
GMS-5100
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pics/month
Delivery Time :
3-7days
Packaging Details :
Carton Box
Harmonic Radiation :
<-65dBm
Sensitivity :
SNR>60dB @ 25KHz, 6dBv
Frequency Response :
50Hz-20KHz
Max Deviation Range :
±45KHz
Installation methods :
19-inch standard cabinet
polar pattern :
Cardioid
Description

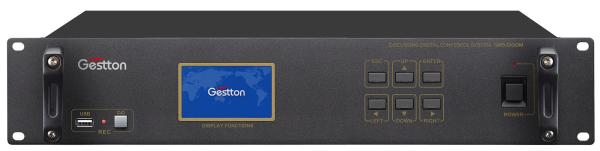

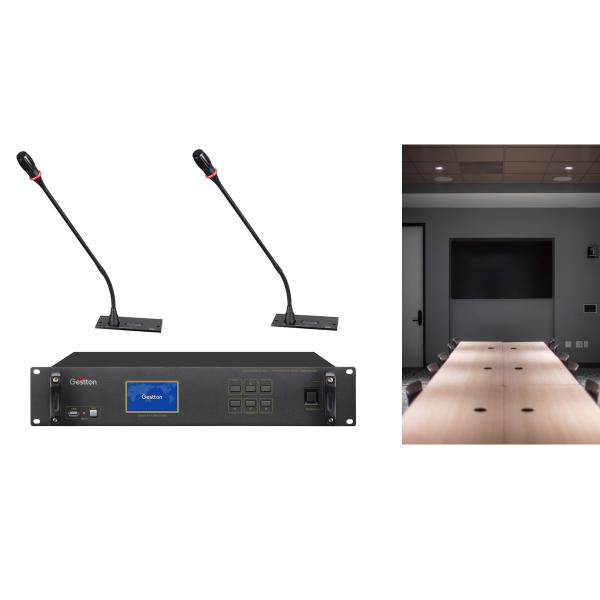

High Performance Wired Digital Conference System with Main Unit Control and Microphone

Receiver Parameter
Frequency Stability
±0.001%
S/N Ratio
>85 dBA
T. H. D
<0.05%
Sensitivity
SNR>60dB @25KHz, 6dBv.
Power Supply
 AC110-240V/50-60Hz
Max Deviation Range ±45KHz
Frequency Response 45Hz-18KHz±3dB
Operation Distance Conventional receiving range is 60 meters
Output RCA socket*2, 6.35mm *1
Installation methods 19-inch standard cabinet
Weight 5.5kg
Dimension 483x323x90 mm
Transmitter Parameter (Three styles are available)
Power Supply
 DC 24v
RF Power Output
15mA-60mA
S/N Ratio >75dBA
Frequency Response 100Hz-12KHz
Type
Condenser
polar pattern
Cardioid

Features

GMS-5100 series is designed for simpleconference room. Itis a highly stable conference system with easy operation

. Up to 100 units can be connected to onesystem, maximum 12 chairman units. It can be expanded to 250 units withexpanding device.

. With speaking mode as FIFO,LIFO, voicecontrol, chairman mode, all on mode.

. Support central controller, Support unit hot-plug connection, Quick & portable installation

. Hyper-cardioid directional condensercapsule,1500px speaking distance, Free from interference of cellphone

Detachable design for mic tube & micbase

. Intelligent digital design control circuit, low power consumption.
. Touch the induction button to make the unit panel more integrated.
. High-fidelity unidirectional condenser microphone core, sound reproduction, high clarity and low noise.
. The delegate unit has the function of applying for speaking, and the order of the meeting is orderly and not chaotic.
. Excellent anti-interference ability from mobile phones.
. With internal magnetic high-fidelity speaker, it will automatically mute when the microphone is turned on,

and it is not easy to produce howling.
. The left side is designed with 2 3.5 audio output and input interfaces, and the access device can replace the conference
microphone to speak and listen to the content of other non-voting conference speeches.
. The conference unit supports hot-swappable function, comes with a 2.1-meter 8P cable, hand-in-hand connection mode,

easy installation and flexible operation.
. Metal base, durable, beautiful and fashionable, not fading or deforming.

1500px Speaking Distance Digital Conference System Main Unit Control


1500px Speaking Distance Digital Conference System Main Unit Control1500px Speaking Distance Digital Conference System Main Unit Control1500px Speaking Distance Digital Conference System Main Unit Control

GMS-5100 Rear Panel 1500px Speaking Distance Digital Conference System Main Unit Control

[1]. Power Socket

[2]. 6.3mm Earphone Jack

[3]. 6.3mm Audio Input

[4]. XLR Output

[5]. Aux RCA jacks

[6]. RS-232 Port for Central Controller

[7]. RS-232 Port for PC

[8] Microphone Unit Port

Microphone unit

. With detachable design for the MIC tube and MICbase.

. Adopt hyper cardioid-directional condensermicrophone, which can carry out high quality pick up.

. With LCD display. It can display signal, batteryPower ,ON/OFF, ID relevant key indication.

. With priority button for chairman unit,With red ring indicator shows the active unit, With hyper-cardioid directional capsule.

. Free from interference of mobile.

. LCD display , Detachable mic tube

Application

Ideally suitable for small scale boardrooms and meeting rooms, Large Meeting Room, Large lecture seminar.
