Audio MA8 Dj Controller Mixer Wired Broadcast Mixer 62dB Max Gain
Audio MA8 Dj Controller Mixer Wired Broadcast Mixer 62dB Max Gain
Specifications
Brand Name :
GESTTON
Model Number :
GS-801
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pics/month
Delivery Time :
10-30 days
Packaging Details :
Carton Box
Input impedance :
MIC 4300ΩAUX 50Ω
Output impedance(balance) :
MIC 15KΩ LINE 200Ω
Output impedance(unbalance) :
LINE 1KΩ
Preamplifier output impedance :
3.3KΩ
Max input level :
MIC -18dBv
Max gain :
62dB
Description

Accuracy Pro Audio MA8 dj controller Mixer instruction manualMixer Wired Broadcast Mixer

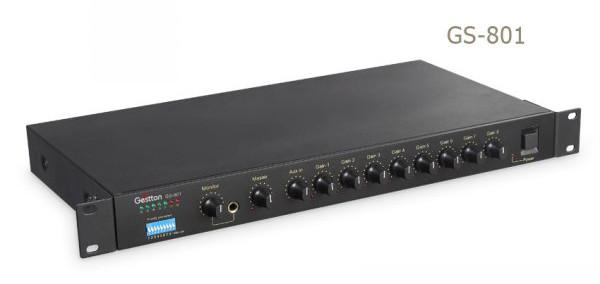

GS-801 Auto mixer
. With 8 channels MIC inputs and 1 channel AUX input.
. Microphones can be activated by any signal input
. 48V phantom power switch to change power supply for microphone
. Each channel has individual gain control.
. Optional priority channel. When the priority channel is activated, the other channels attenuate automatically.
. NOMA (Number of Open Microphone Attenuated): It can adjust the output level according to the activated channels, which avoid the feedback due to the increasing gain of the whole system.
. To change data through the switch of the inner board and VR to get the best operating effect.
. It can connect with 15 auto mixer together, totally 120 microphones can work together
. Remote controller can be connected to turn on/off the microphone.
. With one AUX in and one Line in

GS-801/GS-805/GS-806/GS-807 Specification
Input impedance: MIC 4300ΩAUX 50Ω
Output impedance(balance): MIC 15KΩ LINE 200Ω
Output impedance(unbalance): LINE 1KΩ
Preamplifier output impedance: 3.3KΩ
Max input level: MIC -18dBv
Max output level(balance): MIC -18dBv LINE:21.5dBv
Standard input level(balance): MIC -25dBv
Standard input level(unbalance): AUX -25dBv
Standard output level(balance): MIC -25dBv
Preamplifier output level: -4.4dBv
Max gain: 62dB
Frequency response: 20Hz-20KHz
Inherent noise: balance -85dB( all channels at the max gain)
THD+N ≤0.5
S/N: 75dB
Power consumption: 25W
Dimension: 44*483*221
