Limestone and Calcium Carbonate Raymond Roller Grinding Mill with 4 or 5 Rollers for Higher Output

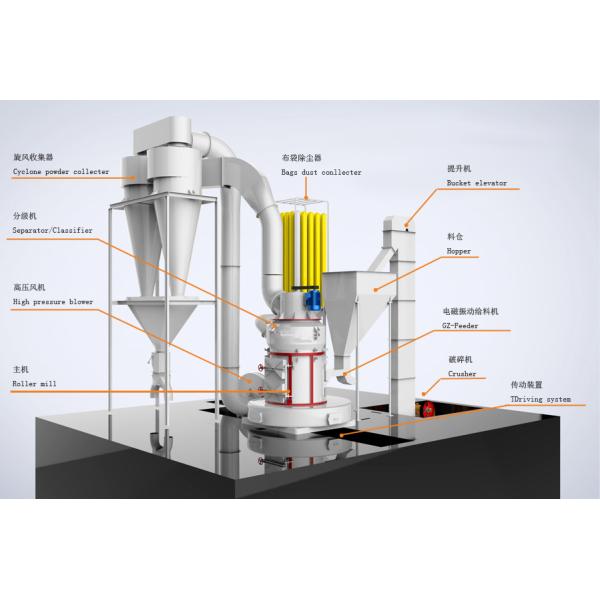

Working Principle of Limestone and Calcium Carbonate Raymond Roller Grinding Mill:

The limestone or calcium carbonate are first crushed to the required size by the jaw crusher or hammer crusher, and the crushed limestone or calcium carbonate are conveyed to the hopper by the elevator, and then the belt conveyor or vibrating feeder sent the crushed limestone or calcium carbonate into the grinding mill.

Grinding process: the grinding roller suspended on the spider arm revolves around the vertical axis and rotates by itself at the same time. Due to the centrifugal force when rotating, the grinding rollers move towards and tightly presses on the grinding ring. And the crushed limestone or calcium carbonate is lifted up by the shovel on the grinding base. So the limestone or calcium carbonate is ground between roller and ring.

Classifying process: After the limestone or calcium carbonate is ground, the blower send air into the grinding house, and move the powder up, then through the classifier to go to the cyclone for collecting. The coarse powder will be blocked by the classifier and fall down into the grinding house for regrinding.

Advantages of Limestone and Calcium Carbonate Raymond Roller Grinding Mill:

1. Increased grinding space, roller and ring height are increased for bigger grinding space.
2. Lower vibration and noise
3. Lower air resistance and higher output by 20%

4. Smooth performance and longer roller lubrication duration.

5. Higher efficiency and grindability

6. Highly Accurate Classifying System

The limestone or calcium carbonate grinding mill classifier can make 80mesh, 100mesh, 200mesh, 325mesh and 400mesh, 600 mesh powder. The self-grinding and self-classifying system also makes this grinding mill system run more efficiently. As this limestone or calcium carbonate grinding mill is equipped with advance cyclone collector and pulse-jet collector, the whole grinding system is environment-friendly and no powder pollution.

Our limestone and calcium carbonate has been exported to many countries, such as Egypt, Indonesia, Vietnam, Russia, USA and etc.

If you need, please contact by whatsapp or email:

Whatsapp: +86 188 998 76785

Email: grindingmill88@gmail

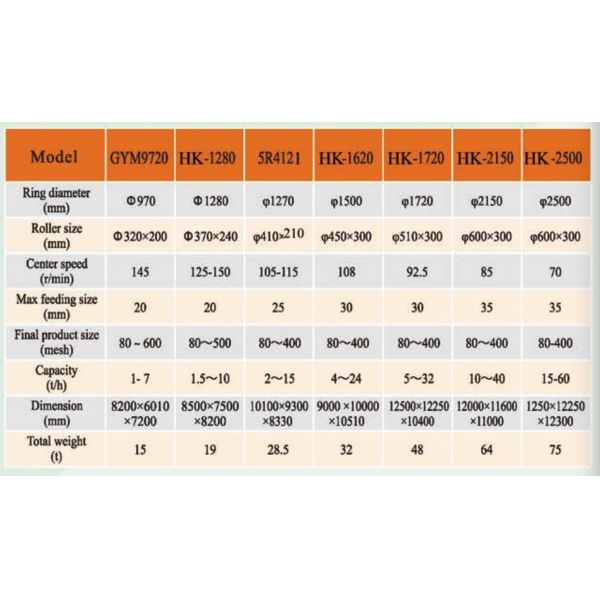

Technical Data of Calcium Carbonate Raymond Roller Grinding Mill:
