Specifications
Model Number :
ZSSW-05200-4RS
Place of Origin :
Chengdu,China
frequency range :
0.5-20GHz
Control :
TTL, 2 bits
Isolation :
≥60dB
Power Handling :
≤0.5W
connector :
SMA-female
Brand Name :
Zysen
MOQ :
1pc
Price :
Negotiable
Delivery Time :
2-4 Weeks
Payment Terms :
T/T, L/C,D/A
Certification :
ISO9001
Description

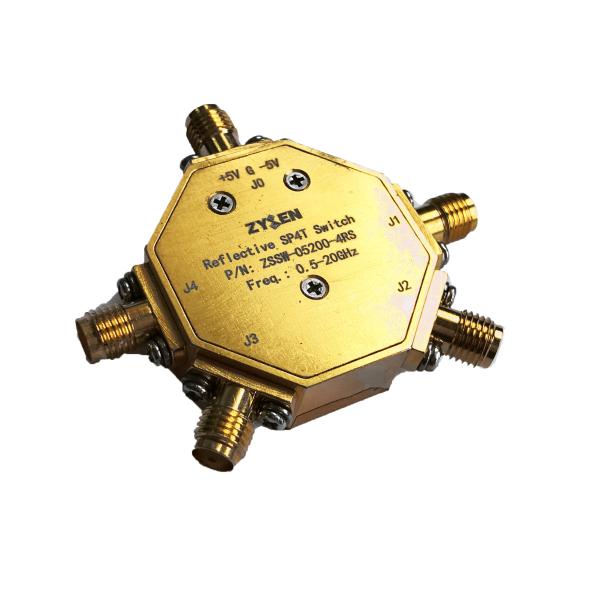

0.5 to 20GHz Ultrawide Band SP4T Pin Diode Switch

Key Specifications
Frequency Range 0.5 – 20.0GHz
Insertion Loss ≤5.2dB
Isolation ≥60dB
VSWR ≤2.0
Switching Speed ≤50ns
Power Handling ≤0.5W
Control TTL
DC Power Supply +5V/40mA typ., -5V/30mA typ.
Connectors SMA-Female
Operating Temperature -55ºC ~ +85ºC
Storage Temperature -65ºC ~ +125ºC
Zysen offer various Pin Switchs, SPDT to SP16T, controlled by TTL, Customized frequency and optimized specifications available. Contact us with your requirement.

Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
