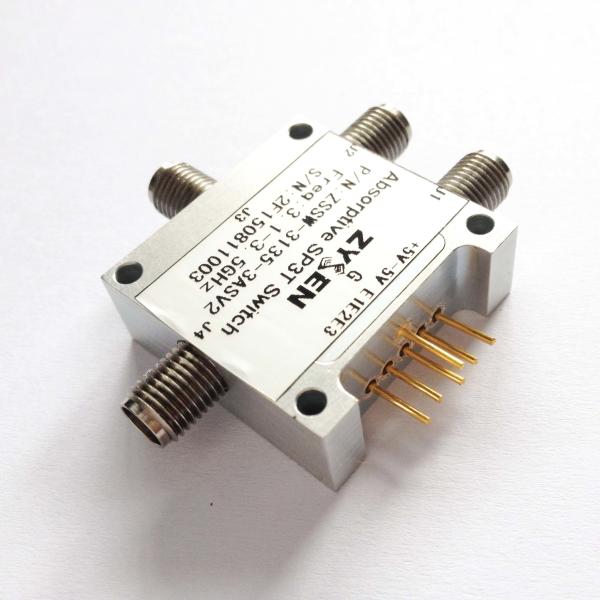

3.1 to 3.5GHz 60dB SP3T RF Pin Diode Absorptive Switch
3.1 to 3.5GHz 60dB SP3T RF Pin Diode Absorptive Switch
Specifications
Model Number :
ZSSW-3135-3ASV2
Place of Origin :
Chengdu,China
frequency range :
3.1-3.5GHz
Switch Design :
Absorptive
Isolation :
≥60dB
Power Handling :
≤0.2W
connector :
SMA-female
Brand Name :
Zysen
MOQ :
1pc
Price :
Negotiable
Delivery Time :
2-4 Weeks
Payment Terms :
T/T, L/C,D/A
Certification :
ISO9001
Description

3.1 to 3.5GHz SP3T Absorptive Pin Diode Switch

Zysen offer various Pin Switchs, SPST to SP16T, controlled by TTL, Customized frequency and optimized specifications available. Contact us with your requirement.
P/N Type Freq.
Range
(GHz)		 Insertion Loss
(dB)		 VSWR
max		 Isolation
(dB)
min		 Switching
Speed
(ns)
max		 Power
Handling
(W) max
ZSSW-00205-1AS SPST 0.02-0.5 1.4 1.5 80 100 0.2-1
ZSSW-00205-2AS SP2T 0.02-0.5 1.5 1.5 80 100 0.2-1
ZSSW-0510-1AS SPST 0.5-1 1.5 1.5 80 100 0.2
ZSSW-0510-2AS SP2T 0.5-1 1.6 1.5 80 100 0.2
ZSSW-0510-4AS SP4T 0.5-1 1.7 1.5 80 100 0.2
ZSSW-0510-6AS SP6T 0.5-1 1.8 1.5 80 100 0.2
ZSSW-0510-8AS SP8T 0.5-1 2.0 1.5 80 100 0.2
ZSSW-1020-1AS SPST 1-2 1.0 1.5 80 50 0.2
ZSSW-1020-2AS SP2T 1-2 1.2 1.5 80 50 0.2
ZSSW-1020-4AS SP4T 1-2 1.4 1.5 80 50 0.2
ZSSW-1020-6AS SP6T 1-2 1.6 1.5 80 50 0.2
ZSSW-1020-8AS SP8T 1-2 1.7 1.5 80 50 0.2
ZSSW-2040-1AS SPST 2-4 1.6 1.5 80 50 0.2
ZSSW-2040-2AS SP2T 2-4 1.8 1.5 80 50 0.2
ZSSW-2040-4AS SP4T 2-4 1.8 1.5 80 50 0.2
ZSSW-2040-6AS SP6T 2-4 2.0 1.5 80 50 0.2
ZSSW-2040-8AS SP8T 2-4 2.0 1.5 80 50 0.2
ZSSW-2040-10AS SP10T 2-4 3.3 1.5 60 50 0.2
ZSSW-4080-1AS SPST 4-8 2.0 1.6 60 50 0.2
ZSSW-4080-2AS SP2T 4-8 2.0 1.6 60 50 0.2
ZSSW-4080-4AS SP4T 4-8 2.2 1.6 60 50 0.2
ZSSW-4080-6AS SP6T 4-8 2.4 1.7 60 50 0.2
ZSSW-4080-8AS SP8T 4-8 2.5 1.8 60 50 0.2
ZSSW-4080-10AS SP10T 4-8 3.7 1.8 60 50 0.2
ZSSW-120180-1AS SPST 12-18 3.2 2.0 60 50 0.2
ZSSW-120180-2AS SP2T 12-18 3.2 2.0 60 50 0.2
ZSSW-120180-4AS SP4T 12-18 3.5 2.0 60 50 0.2
ZSSW-120180-6AS SP6T 12-18 3.8 2.0 60 50 0.2
ZSSW-120180-10AS SP10T 12-18 4.9 2.0 50 50 0.2
ZSSW-20180-1AS SPST 2-18 3.1 2.2 60 50 0.2
ZSSW-20180-2AS SP2T 2-18 3.3 2.0 60 50 0.2
ZSSW-20180-4AS SP4T 2-18 3.7 2.2 60 100 0.2
ZSSW-20180-6AS SP6T 2-18 3.8 2.2 60 50 0.2
ZSSW-05200-1AS SPST 0.5-20 3.8 2.0 60 50 0.2
ZSSW-100200-1AK SPST 10-20 4.0 2.1 60 50 0.2
ZSSW-240-2AK SP2T 24 4.0 - 60 100 0.2
ZSSW-240-4AK SP4T 24 4.6 - 60 100 0.2
ZSSW-60150-16AS SP16T 6.0-15.0 8.0 2.1 60 200 0.2
ZSSW-05430-4AK SP4T 0.5-43 6.0 3.0 45 80 0.2
ZSSW-05430-8AK SP8T 0.5-43 8.5 3.0 45 100 0.2
