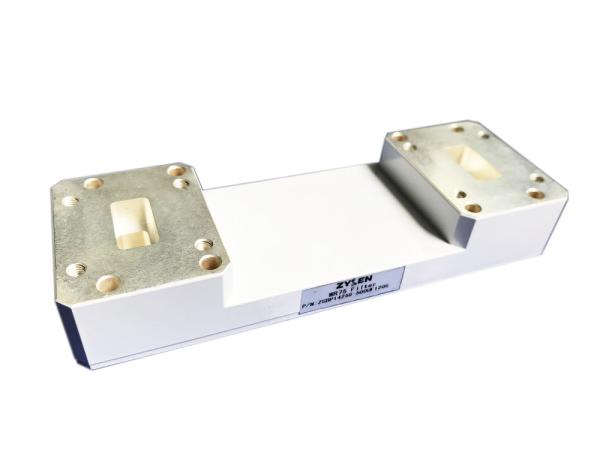

14.5GHz 0.3dB Waveguide Components WR75 Waveguide Bandpass Filter
14.5GHz 0.3dB Waveguide Components WR75 Waveguide Bandpass Filter
Specifications
Place of Origin :
Chengdu,China
Model Number :
ZSBP14250-500UF120
Pass Band :
14-14.5GHz
Attenuation :
45dB min @ 12.25-12.75GHz
Insertion loss :
0.3dB max
Waveguide :
WR75
Brand Name :
Zysen
MOQ :
1pc
Delivery Time :
2-4 Weeks
Price :
Negotiable
Payment Terms :
T/T, L/C,D/A
Certification :
ISO9001
Description

Waveguide Band Pass Filter

Zysen offers Waveguide Band Pass Filter. Custom frequency bands and optimized specifications available. standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.

P/N

Center Freq. (f0)

(GHz)

 Bandwidth
(MHz)		 I.L. at f0
(dB)
max		 Stop Band 1
(dB min @ MHz)		 Stop Band 2
(dB min @ MHz)		 VSWR
max		 Connector
ZSBP12925-255T5SF120 12.925 255(3dB) 0.5 40@11900 40@14400 1.5 SMA-F& WR75
ZSBP12925-255T7SF120 12.925 255(3dB) 1.2 40@12600 40@13350 1.5 SMA-F& WR75
ZSBP13250-110T5SF120 13.25 110(3dB) 0.8 40@12680 40@13810 1.5 SMA-F& WR75
ZSBP13250-110T7SF120 13.25 110(3dB) 2.0 40@13100 40@13400 1.5 SMA-F& WR75
ZSBP14250-500UF120 14.25 500 0.3 45dB@ 12250-12750 1.2 WR75
ZSBP17200-200UF220 17.2 200(3dB) 0.3 40@16400 40@18400 1.5 SMA-F& WR42
ZSBP30011-1200UF320 30.011 1200(1dB) 1.0 70@27761 70@32261 1.5 WR28
ZSBP30500-1000UF320 30.5 1000(1dB) 1.2 50@29050 - 1.2 WR28
