80kW Red Chilli Drying Machine , Microwave Drying Equipment 0.5-10 M/Min
80kW Red Chilli Drying Machine , Microwave Drying Equipment 0.5-10 M/Min
Specifications
Brand Name :
HLTD
Model Number :
60HD
Certification :
CE Certification
Place of Origin :
Jinan city, Shandong Province
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 set 11
Delivery Time :
90~150 workdays
Packaging Details :
Export standard fumigation wooden cases
protection :
one year
brand name :
HLTD
Dimension(L*W*H) :
Depend on the specific model
model :
Conveyor belt
Appearance :
convoyer belt
heading :
microwave drying machine
Description

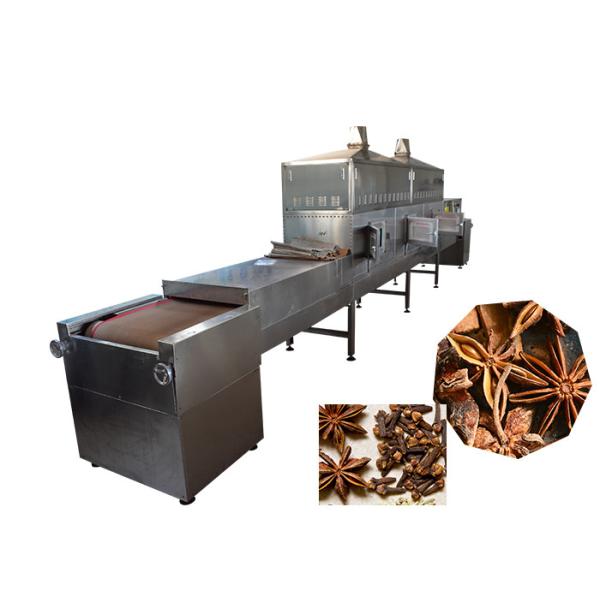

HLTD Series Chili Tunnel Belt Microwwave Vacuum Drying Equipemts Transmission System

Introduction Of microwave drying machine :

Name Flower Microwave drying machine
Power 80kW
Type Conveyor Tunnel Belt
Microwave Output Power 100kW Tunnel structure, Power can be adjusted
Microwave Frequency 2450MHz±50MHz
Dimensions 8500*810*2000㎜
Height of Feeding 55mm
Width of Conveyer Belt 1200mm
Conveyor Speed 0.5～10 m/min
Operating Temperature -5～40℃

Product Description

Industrial microwave is a new drying and sterilizing solution to process starch, flour, protein powder, grain powder and other type of food powder products.

Advantages of Industrial Microwave
1. The drying and sterilization process is totally dust-free which improve working environment.
2. Stainless steel material assure food hygiene.
3. Advanced manufacturing technology with smart PLC.
4. Small footprint with simple operation manual .
5. Stable working performance and less down time.
6. Drying and sterilization function simultaneously works on the powder material.
7. Could apply to modify the starch, the machine is also used to modify the starch when we change the processing craft. Modified starches are used in practically all starch applications, such as in food products as a thickening agent, stabilizer or emulsifier; in pharmaceuticals as a disintegrant; or as binder in coated paper. They are also used in many other applications. Compared to traditional heating solution, microwave heating takes less time, simplifies processing and reduces the cost.
8. Minimize the moisture content under 1%.
9. It could be customized to different capacity machine to process a variety of volume.

The main purpose:


It is used for drying pills, powder, granules, flakes or colloids, reducing the transfer and one finished product. Drying and sterilization of additives, seasonings, medicines, Chinese herbal medicine raw materials, nutraceuticals, agricultural and sideline products, etc.; expansion of almonds, peach kernels, peanuts, shrimp slices, fish belly, etc.; oral liquid, pickles, various small packaged foods Anti-mildew, sterilizing and fresh-keeping; "rewarming" thawing of frozen fish and meat poultry; drying and deodorization of soybean, drying, desulfurization and reduction of metallurgical chemical products; printing and dyeing, ceramics, glass fiber, chemical fiber, cotton yarn, wood, leather, bamboo products Drying of industrial products such as honeycomb paperboard products and corrugated cardboard.

Folding application area


Drying of high moisture viscous materials;

Drying of powder, granules, flakes, strips, plates, small blanks, etc.;

Activated regeneration of the catalyst;

Drying, sterilizing and disinfecting solid waste such as sludge;

Drying, sterilization and disinfection of food, medicine and pharmaceutical raw materials;

Dry rice, flour, insecticide, mildew treatment;

Tea leaves, fragrant;

Curing of polymer materials;

Heat treatment of the foamed material.

Feature

Tunnel structure, continuous feeding and discharging, fast drying and sterilization.
Low temperature sterilization, sterilization temperature is only needs 65~85 °C, sterilization time is only 3~5 min.
PLC and touch screen control, temperature, power and transmission speed is adjustable easily.
For packaging food sterilization,does not destroy the nutrient component of material.

Services and guarantee Of microwave food drying machine
Service Guarantee
Qualified engineer go to customer working site installation debugging equipment.


Equipment guarantee time: 1 year. During operation time within 1 year, if the equipment has quality problem, we will promise replacement.

Our factory implement lifelong service for you, after the warranty period if you have any question of machine, we will be enthusiastic, resolve customer problems as soon as possible.
Training buyer’s workers how to correct operation the drying machine free of charge.
