Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Paper Products Microwave Drying Equipment High Frequency Wood Dryer
Specifications
Brand Name :
HUOLI
Model Number :
HL-120HMV
Certification :
CE ISO
Place of Origin :
Xi'an China
MOQ :
1 Set
Supply Ability :
20 Sets Per Month
Delivery Time :
10 Days After Confirmation
Packaging Details :
Wooden Case, Iron-pallet
Material :
SS304 Stainless Steel
Condition :
New
Power :
120KW
Function :
Drying, Dehyration, Sterilizing
Warranty :
12 Months
HS Code :
843880000
Description

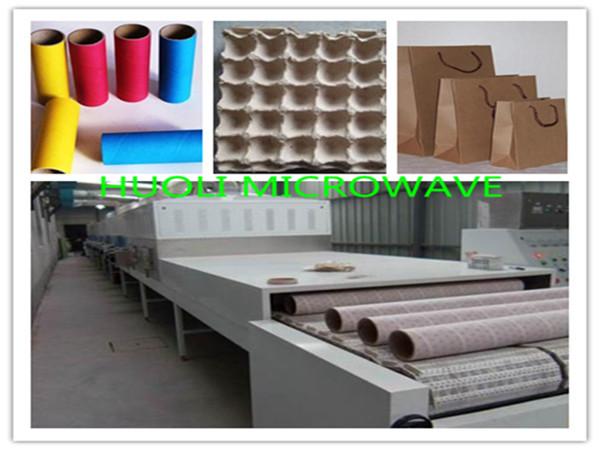

Microwave drying equipment for paper products

Introduction

  1. Microwave field energy distribution

    Microwave drying equipment for paper products

  2. Microwave field energy distribution uniformity , strong penetration , rapid heating, fast drying
  3. Perfect mechanical and electrical integration design, the whole process of measurement shows that the system is safe and reliable
  4. PLC program control, the entire visual monitoring interface, more humanize, flexible and convenient operation, maintenance is more simple.
  5. According to the need to set the processing temperature range, the implementation of closed loop control

  6. Application

    Industrial paper bags, kraft paper bag, paper yam compound karft paper bag, paper plastic composite bag, kraft paper bag

    Honeycomb paper composted board, honeycomb paperboard, honeycomb paper board drying

    Environment protection paper bowl, packing box board and other fast drying

    niformity , strong penetration , rapid heating, fast drying

  7. Perfect mechanical and electrical integration design, the whole process of measurement shows that the system is safe and reliable
  8. PLC program control, the entire visual monitoring interface, more humanize, flexible and convenient operation, maintenance is more simple.
  9. According to the need to set the processing temperature range, the implementation of closed loop control

Application

Industrial paper bags, kraft paper bag, paper yam compound karft paper bag, paper plastic composite bag, kraft paper bag

Honeycomb paper composted board, honeycomb paperboard, honeycomb paper board drying

Environment protection paper bowl, packing box board and other fast drying

Technical Parameters:

Model HL-150HMV HL-200HMV
Microwave output frequency 2450±50MHz 2450±50MHz
Microwave input apparent power ≤150KW ≤200KW
Microwave output power ≥130KW ≥180KW
Temperature 70~200C(adjustable) 70~200C(adjustable)
Cooling type Water-cooling / air-cooling Water-cooling / air-cooling
Working time Continuous 24 hours Continuous 24 hours
Height of inlet and outlet 40-60mm 40-60mm
Height of conveyor belt 600-1000mm 600-1000mm
Transmission speed 0-10m/min(adjustable) 0-10m/min(adjustable)
Drying capacity 110-130KG/H 140-170KG/H
Width of conveyor belt 1000±100mm 1000±100mm
