DC Solution Emergency Converter With Tiny Size And Battery Inside
DC Solution Emergency Converter With Tiny Size And Battery Inside
Specifications
Brand Name :
HAISEN
Model Number :
ES-EOES SERIES
Certification :
CE UKCA
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Color :
White
Products :
LED Emergency Driver
Battery charging current :
300mA(Max)
Battery charging time :
<24h(Max)
IP Rating :
IP20
Warranty :
3 Years
Description

DC solution emergency converter with tiny size and battery inside

ES-EOE.pdf


Features

  • Used with lithium battery
  • Suits forLED fitting with external LED driver
  • Accessary test switch and LED indicator
  • Auto Testing-Self Diagnostic Operation
  • With multi-protection function:

​ -battery overcharge protection
-battery over-discharge protection
-output overload protection
-short-circuit protection


Parameter Table

Input voltage 220-240 Vac 50/60Hz
Input Current 0.03A(Max) 230V AC
Input Power
<4W
Power Factor ≥0.5@230Vac
Battery charging current 300mA(Max)
Battery charging time 24h(Max)
Working humidity 20-80%RH(No Condensation)
Working temperature -20-60°C
Maximum shell temperature 75°C
Storage temperature -20-40°C
Electric strength 3000Vac 5mA(input to output)
IP Rating IP20
Warranty

3 Years

Status LED & Test button
LED Indicator

Yellow on
The battery discharge time is insuffificient
Main power supply

The yellow indicator
blinks at 1Hz
The battery is open circuit or the charging circuit is short-circuited

The yellow indicator
blinks at 3Hz
The Led fifixture is open circuit ,
short circuit or no output when in the self-test state

Red on
Battery charging

Red off
Battery stop charging

Green on
In main power mode

The green indicator
blinks at 1Hz
Monthly self-test status

The green indicator
blinks at 3Hz
Annual self-test status

The green indicator
blinks two times
Fast manual monthly/annual self-test

LED indicator off
Emergency status
Battery supply
The yellow indicator
blinks at 3Hz

The Led fifixture is open circuit ,short circuit,after 2 seconds,the output is turned off and the battery enters the standby state,
need to reconnect the mains and then timing into normal operation

Yellow on
Battery capacity is low

Test button
1S＜Key≦3S

Green off,enter simulated emergency,maintain emergency status
for 10S and exit
Main power
supply
3S＜Key≦5S

The green indicator blinks at 1Hz,enter the monthly self-test,
maintain the emergency status for 120S and exit
5S＜Key≦7S

The green indicator blinks at 3Hz,enter the Annual self-test,
keep to low battery voltage and exit
Double click

The green indicator blinks two times,quickly view the monthly
self-inspection and annual self-inspection, and automatically enter
the annual self-inspection after 11 times of monthly inspection
3S＜Key

Exit the emergency state and enter the standby state,need to
reconnect the mains and then timing into normal operation
Battery supply

Model Selection table

Model No. Input voltage Output voltage Output Current Lithium battery Emergency time
Emergency power
ES-EOE03-01S-120V
 220-240Vac 50/60Hz
12-120V DC
20-60mA
 3000mAh/3.7V 3Hrs 3W
ES-EOE03-01S-200V
 220-240Vac 50/60Hz
50-200V DC
30-10mA
 3000mAh/3.7V 3Hrs 3W


Dimension (Unit:mm)

DC Solution Emergency Converter With Tiny Size And Battery Inside

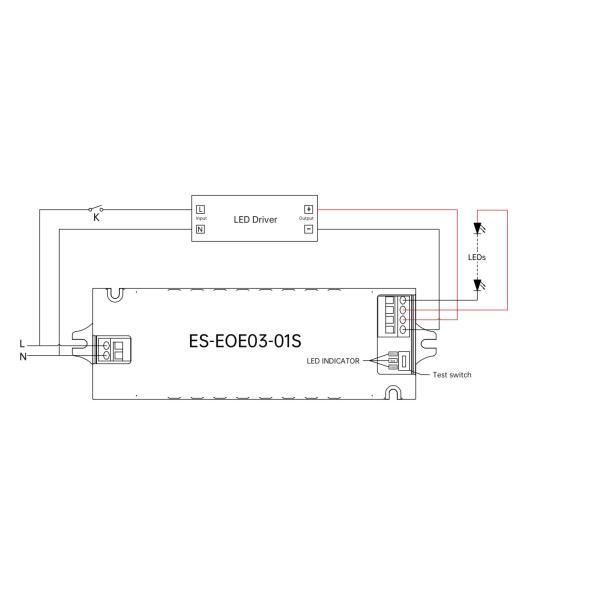

Wiring Diagram
DC Solution Emergency Converter With Tiny Size And Battery Inside


Cautions

1,If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2,The product has a built-in battery. When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3,Should be stored in a cool, dry environment.
4,After prolonged storage, recharge at least once every 6 months as needed.
