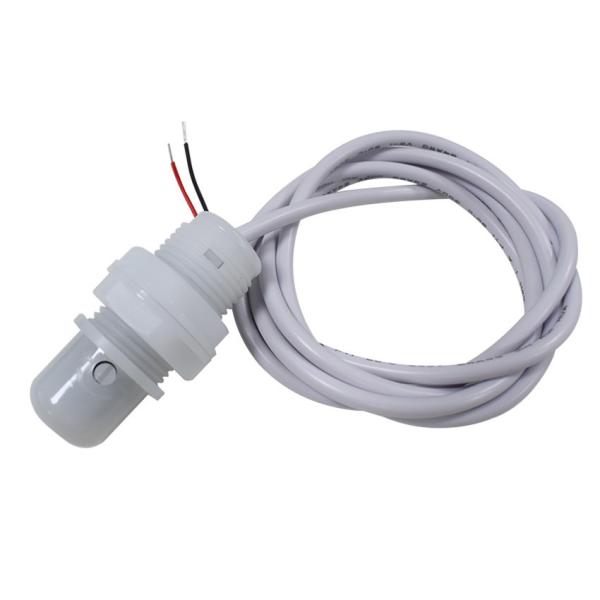

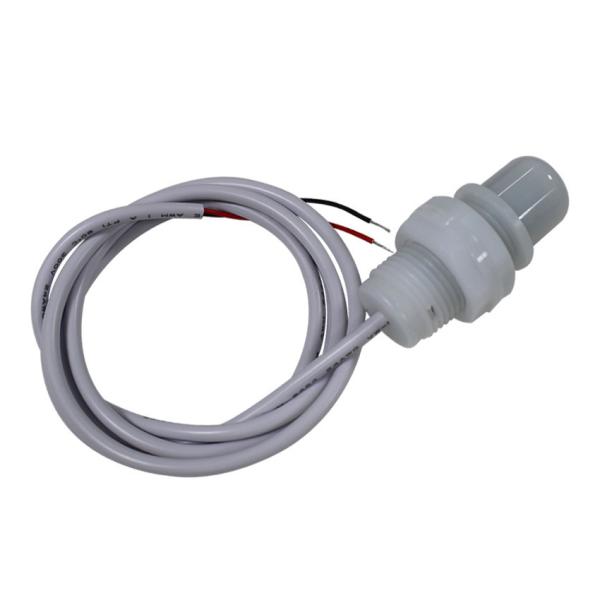

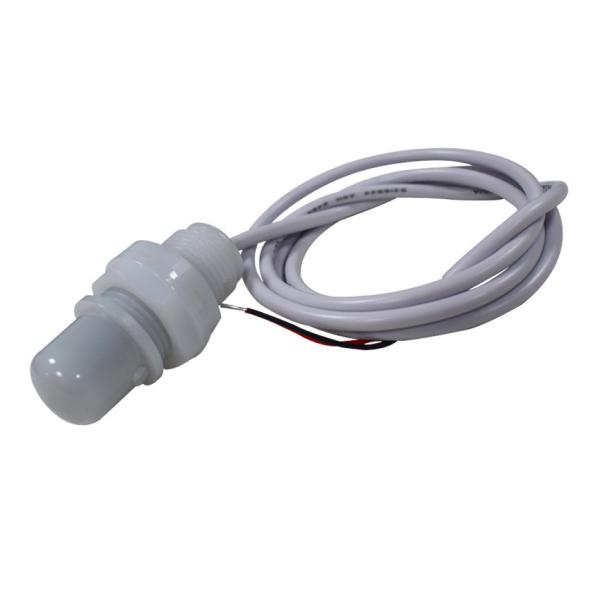

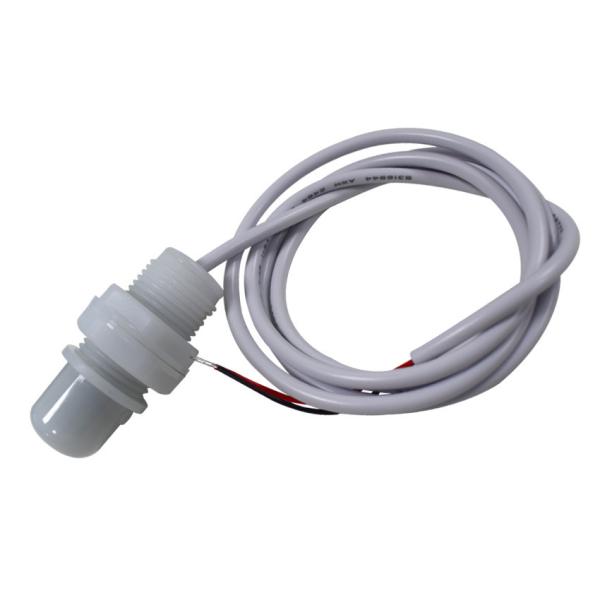

Dimmable IP20 Photocell Daylight Sensor With Length 1m Cable

1-10V DC Dimmable Photocell Sensor Unit Daylight Harvesting With Cable Length 1m

HS01 is a standalone 1-10V dimming daylight sensor to transmit anolog signal of the lux value of natural light to turn on/up the LED light or Dim down/off the LED light with a 1-10V Dimmable interface to balance the environment brightness comfortable or suitable for any special required lux value.

Features:
1. Load 2000W max. wth 50mA dimming current.

2. No height limitation but only affected by natural light.

3. Only two control line (±) to be easily wired with LED driver;

4. Daylight harvesting to balance the LED light to be a comfortable brightness based on the natural light.
5. 1-10V dimming sensor connecting with the DIM± port of LED driver;
6. Setting knob to choose the preset required lux value
7. IP20

Product Description

Wiring diagram

Very simple structure with two control line to connect with LED DIM+ / DIM-

Mechanical structure(mm)
Setting Knob to adjust target lux value
With a installation head nut, easily to be plug and pull;
With a photodiode in front of the sensor, detect the ambient brightness easily.

Application with ON/OFF or Dimming Microwave Motion Sensor

Daylight Harvesting Application Demo
Connected to 1-10V interface, the sensor automatically compares ambient lux to preset lux
value and adjusts artificial lighting to keep lighting balance.

Illumination preset lux value
Preset lux value refers to the illuminanation required by the customer for the installation environment.

Application Demo of HS01 connecting to driver

Connected sensor is always automatically compares ambient lux to preset lux value. With 1-10V dimmable control gear, artificial light dims 10%-100% brightness according to the change of ambient lux level to keep visual comfort.

With enough ambient lux Switch off light
( ambient lux > preset manually when needed.
lux value), light dims
10% brightness.

Installation Method
1. Cannot be built-in installation
2. To avoid affection of artificial light, the photocell cannot be installed facing to the LED light source and shall be installed horizontally with the light or higher than the light.

Notes:

1. Please read the instructions carefully before using this product and keep it well for all users to read at any time.
2. The sensor should be installed by qualified electrician and ensure power is off before the installation.
