120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors
120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors
Specifications
Brand Name :
HAISEN
Model Number :
HT57V-I
Certification :
CE
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs per month
Delivery Time :
1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details :
Bubble pack, paper flat, outer carton.
Output LED current :
1.2A/1.3A/1.4A/1.5A ±5%
Input voltage :
120~277VAC 50/60Hz
Input power :
Max. 70W
Output LED power :
Max. 60W
Warranty :
3 years
IP rating :
IP 20
Description

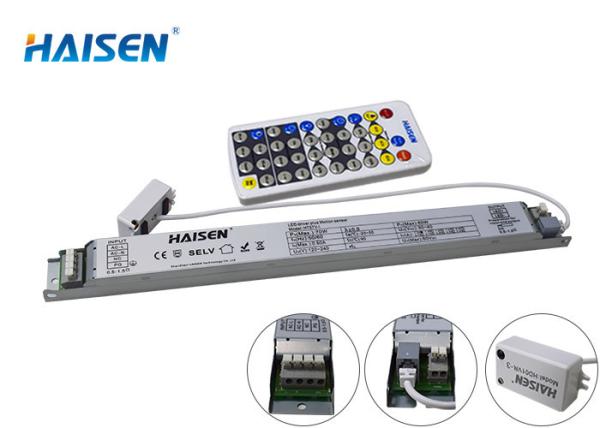

120V 277VAC 60W Motion Sensor Driver Microwave Movement Detectors

60W CE RoHS Approval Dimmable Function LED Driver Microwave Motion Sensor

Features:

  • Have passed CE RoHS certificate.
  • Datached design is workble for tri-proof light, easy installtion.
  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control.
  • Dimming function, LED driver and iosolated solution.

Product Description

Output LED current 0.45A/0.55A/0.60A/0.70A/0.75A/0.90A/1.05A/1.20A/1.35A/1.50A
Output LED voltage 30V-40V DC
Output LED power 60W
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection angle 30°-150°
Input voltage 120~240VAC 50/60Hz
Input current 0.30A Max
Input power 70W Max
Detection area 25%/50%/75%100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Stand-by period 0S/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Empty load voltage ≤63VDC (Max)
Power factor ≥0.9
Efficiency 87% (Max.)
Operating temperature ta:-20°C~50°C Tc: 80°C
Abnormal protection SCP:Auto recovery,OVP,OCP,OTP
EMC standard EN55015
Safety standard EN61347-1 EN61347-2-13 EN60598-1
IP rating IP20
Life time 50,000 hours
Approval CE RoHS
Package requirement Bubble pack, paper flat, outer carton
