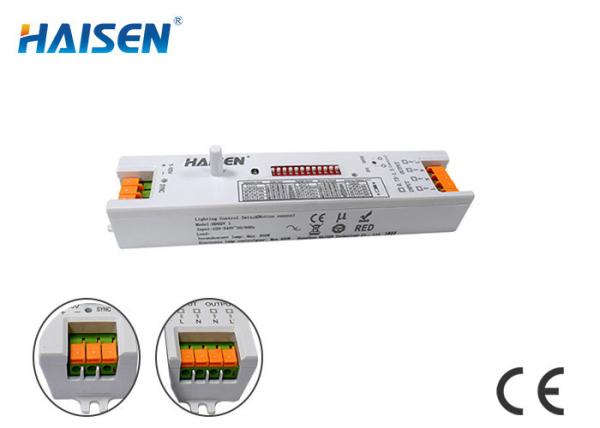

Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design
Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design
Specifications
Brand Name :
HAISEN
Model Number :
HD02V 1
Certification :
CE RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details :
Bubble pack, paper flat, outer carton
Microwave frequency :
5.8GHz±75MHz
Microwave power :
<0.3mW
Mounting height :
Max.4.5m(ceiling mounted)
Detection range :
Max.ø12m(ceiling mounted)
Approval :
CE ＲoHS
Installation :
Installed inside lamps
Description

Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design

Features:

  • On/off function and dimming function.
  • 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable.
  • SYNC function: all lights connected to this sensor interface can be controlled synchronously.
  • Patented rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
  • Automatic switching based on motion and ambient light level.
  • High frequency 5.8GHz and detection angle 30°-150°.


Product Description

Wireless Parameters Operating Frequency 5.8 GHz ±75 MHz
Function 0N/0FF+dimming function
Operating Environment Operating Temperature -20°C~+55°C
Safety & EMC Approval CE, ROHS
Input Voltage Range 220~240 VAC 50/60Hz
Switching capacity Max.400W(Control gear) Max.800W(Incandescent lamp)
Sensor Parameters Detection Area 10%/50%/75%/100%
Daylight Sensor 2Lux/10Lux/50Lux/Disable
Hold time 5s/30s/1min/5min/10min/20min/30min
Mounting Height Max.4.5m(ceiling mounted)
Detection range Max.ø12m(ceiling mounted)
Others Installation Installed inside lamps
IP rating IP 20
Warranty 5 years
Life time 50000h
Packaging Requirement Bubble pack, paper flat, outer carton.

HD02V 1.pdf
