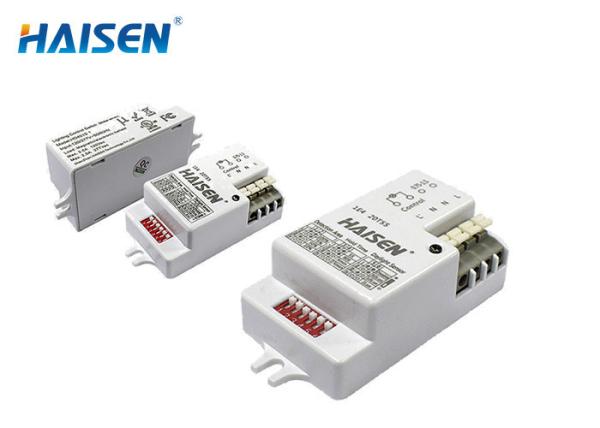

Smart Microwave Movement Sensor 120-277V AC Operated 50 60Hz Frequency
Smart Microwave Movement Sensor 120-277V AC Operated 50 60Hz Frequency
Specifications
Brand Name :
HAISEN
Model Number :
HD401S 1
Certification :
UL FCC
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details :
Bubble pack, paper flat, outer carton.
Working voltage :
120~277 VAC 50/60Hz
Switching capacity :
Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by Power :
≤1W
Mounting height :
Max.6m(ceiling mounted),Max.3m(wall mounted)
Detection range :
Max.14m(ceiling mounted),Max.10m(wall mounted)
Operating termperature :
-20°C~+60°C
Cover Color :
White
Life :
50000h
Description

For Ceiling Light Microwave Movement Sensor 120-277VAC Operated 5.8GHz Frequency

Description:

HD401S 1 On/Off Control For Ceiling lights,Long detection distance version,Super Compact size of 80.2X36.6X23mm, suitable for different led fittings.Unique design with loop in and loop out, easy to instal.Detection area, hold time and daylight sensor are selectable via DIP switch,Zero-crossing point operation helps protect the sensor against in-rush current.5.8GHz high frequency microwave.4-pole press-in terminal (L, N,N,L′),easy assembly.Detection area, time delay and daylight threshold can be precisely set via DIP switch.

Detailed Product Description

Input

Voltage Range

120-277Vac 50/60Hz

Output

Load Type

Max.3.0A@120Vac,Max.2.0A@277Vac

Sensor Parameters

Hold time

5S/90S/5min/15min

Detection Area

10%/50%/75%/100%

Daylight Sensor

2lux/10Lux/50Lux/disable

Mode

Constant on mode/Sensor mode

Mounting Height

Ceiling mounting 3-15m

Sensing Area

4-7m (Mounting height 3m)

Wireless Parameters

Operating Frequency

5.8 GHz ±75 MHz

Dimming Control

0N/0FF

Safety & EMC

Certificate Requirement

UL FCC

Others

Wiring Method

4-pole press fit terminal (Input grey L. N. Output grey N. L’)

IP Rating

IP20

Packaging Requirement

Bubble pack, paper flat, outer carton.

Weight

41g
Cover Color White
Size 80.2*36.6*23mm
Warranty 5 years

Life

50000h

Function Demo-On/Off Control

*Light will turn on when people come ture off after people leave.

With sufficient daylight, even when motion
detected, light remains OFF.

With insufficient daylight, when motion
detected, light ON.

After the last detection and the present
hold time elapsed, light OFF.

Application

Stairwell, corridor, balcony, pathway, warehouse,etc

office/commercial lighting,

warehouse,use,

for new luminaire and installations

HD401S 1 specification.pdf
